斗山零件查询PILOT PIPING-ONE WAY SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
187 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

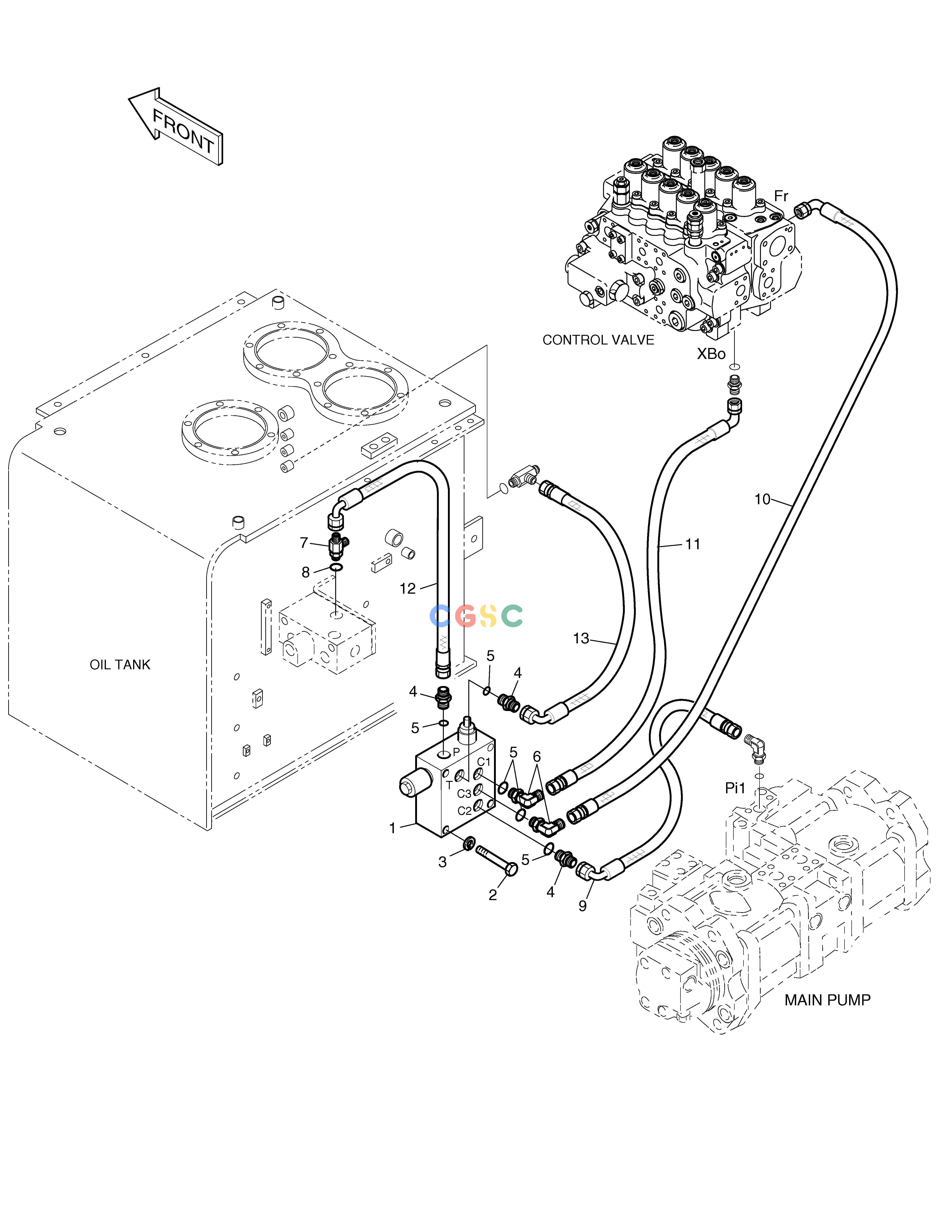

2400-2151
|
[-] |
PILOT PIPING-ONE WAY
|
|
| 1. |
2420-9227A
|
[1] |
VALVE;BREAKER
|
|
| 10. |
2184-1046D79
|
[1] |
HOSE PF1/4-2000L
|
|
| 11. |
2184-1046D117
|
[1] |
HOSE PF1/4-1700L
|
|
| 12. |
2184-1046D195
|
[1] |
HOSE PF1/4-510L
|
|
| 12. |
2184-1046D63
|
[1] |
HOSE PF1/4-500L
|
|
| 13. |
2184-1046D76
|
[1] |
HOSE PF1/4-1200L
|
|
| 2. |
S0558953
|
[3] |
BOLT
|
|
| 3. |
S5102603
|
[3] |
. WASHER
|
|
| 4. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 5. |
S8000111
|
[5] |
O-RING
|
|
| 6. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 7. |
2181-2375D5
|
[1] |
TEE
|
|
| 8. |
S8000181
|
[1] |
O-RING
|
|
| 9. |
2184-1046D53
|
[1] |
HOSE PF1/4-730L
|
|
