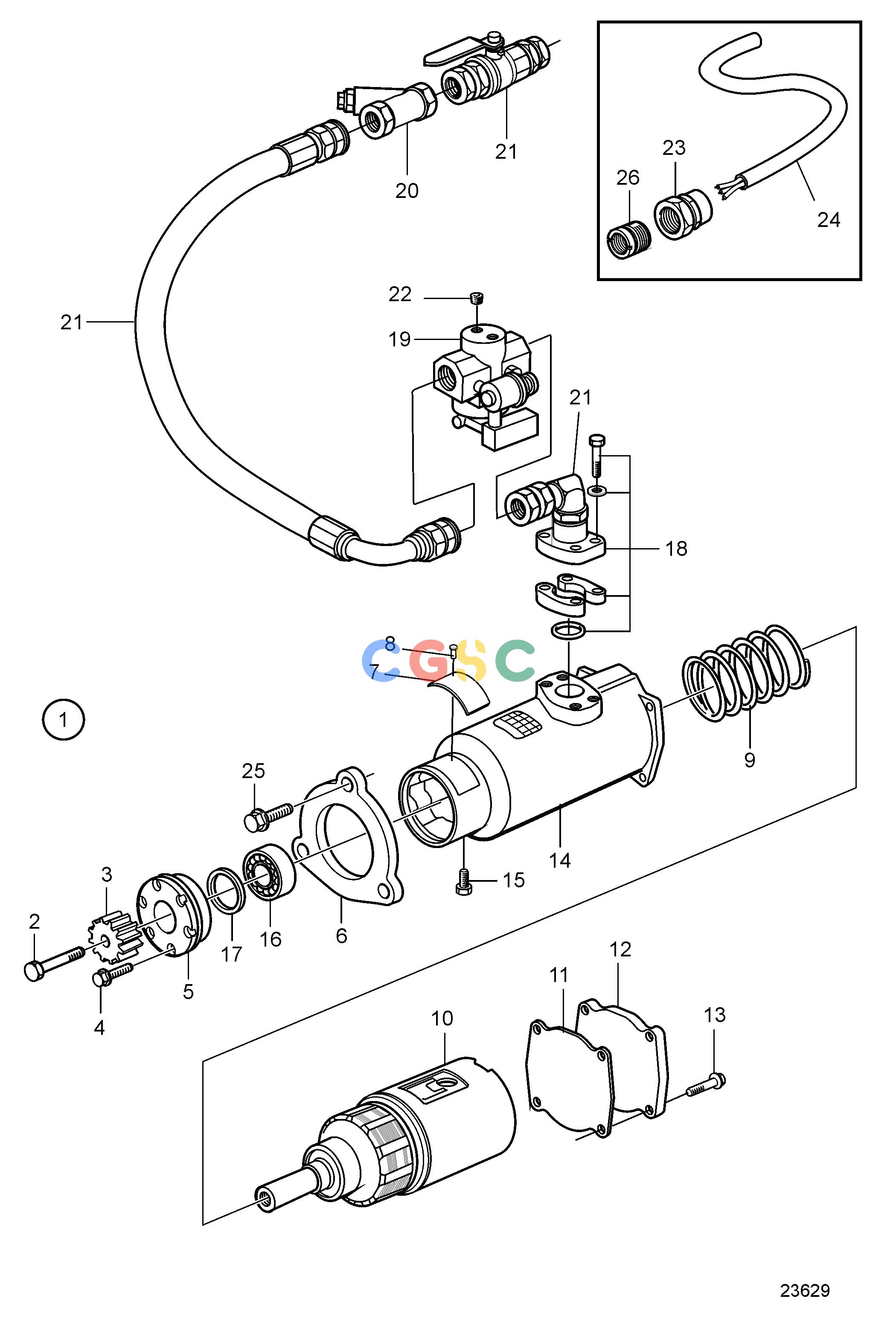

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemStarter Motor/ Air Starter and Installation Components, (Aux)EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
788 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3829870
|
[1] |
Starter motor
|
|
| 2. |
|
|
|
|
| 3. |
3830007
|
[1] |
Starter pinion
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
3830017
|
[1] |
Return spring
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
|
| 16. |
1544092
|
[1] |
Ball bearing
|
(3830024)
|
| 17. |
3830025
|
[1] |
Seal
|
|
| 18. |
|
|
|
|
| 18. |
956585
|
[4] |
Hex. socket screw
|
|
| 18. |
18665
|
[4] |
Gasket
|
|
| 19. |
3829869
|
[1] |
Control valve
|
|
| 19. |
877302
|
[1] |
Valve kit
|
|
| 19. |
877353
|
[1] |
Valve kit, regulator
|
Tune up kit include diaphragm, seat, springs and plunger of solenoid.
|
| 20. |
3830394
|
[1] |
Strainer
|
|
| 21. |
3829999
|
[1] |
Hose
|
|
| 22. |
952075
|
[1] |
Plug
|
|
| 23. |
881190
|
[2] |
Grommet
|
|
| 24. |
977308
|
[1] |
Electric cable
|
2x1,5mm², L=3000mm
|
| 25. |
965225
|
[3] |
Flange screw
|
|
| 26. |
862885
|
[1] |
Reduction sleeve
|
|
