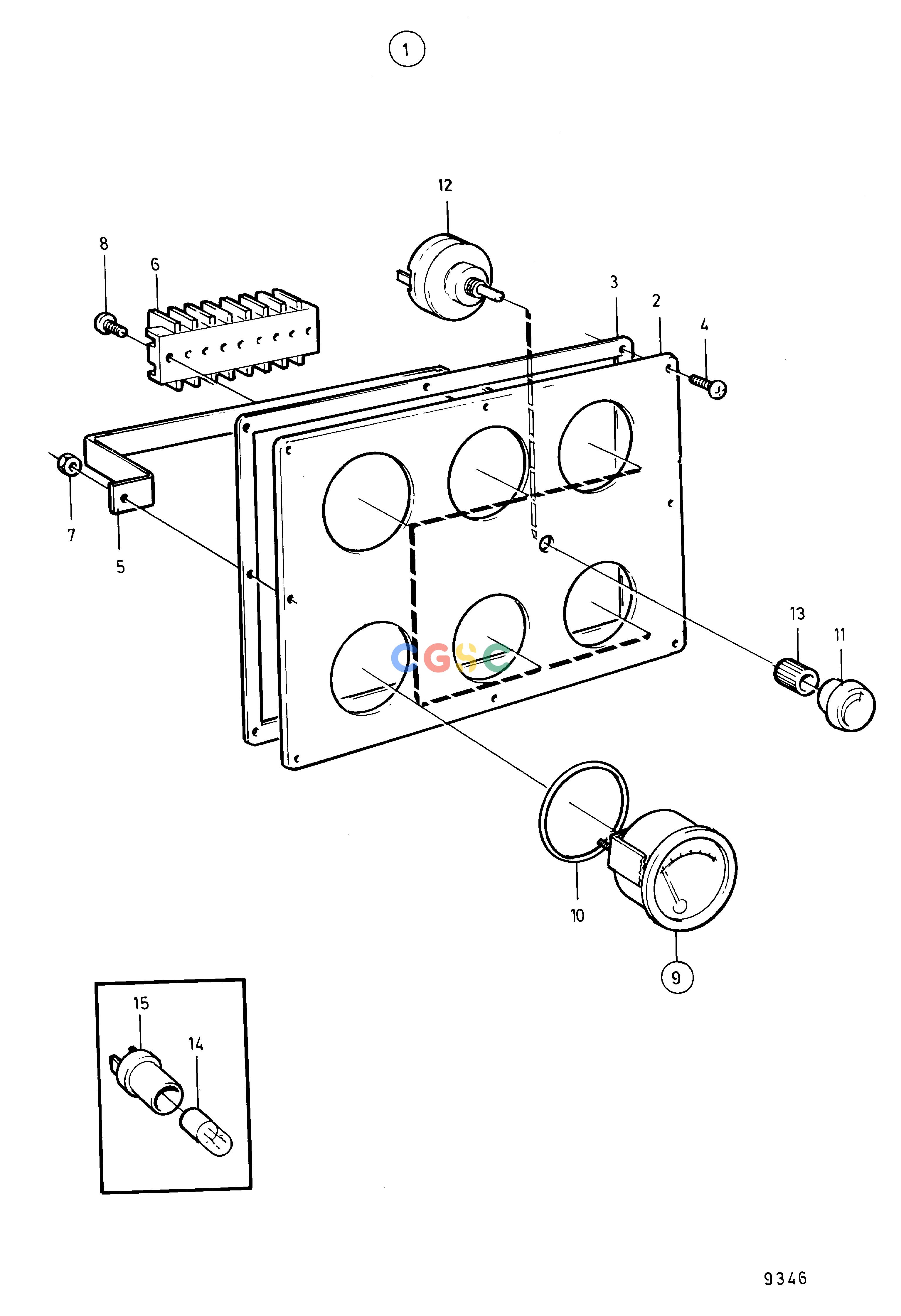

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemSupplementary Panel 24V. ClassifiableEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
366 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
862357
|
[1] |
Instrument panel
|
|
| 2. |
862064
|
[1] |
Instrument plate
|
|
| 3. |
862152
|
[1] |
Gasket
|
|
| 4. |
862217
|
[8] |
Cross recessed screw
|
|
| 5. |
862198
|
[1] |
Brace
|
|
| 6. |
862181
|
[2] |
Terminal block
|
|
| 7. |
955779
|
[2] |
Hexagon nut
|
|
| 8. |
956062
|
[4] |
Cross recessed screw
|
M4x14mm
|
| 9. |
862085
|
[1] |
Turbo pressure gauge
|
|
| 9. |
862186
|
[1] |
Thermometer, exhaust
|
|
| 9. |
862088
|
[1] |
Pressure gauge, oil pressure-reverse gear
|
|
| 9. |
862091
|
[1] |
Pressure gauge, fresh water
|
|
| 9. |
862094
|
[1] |
Pressure gauge, sea water
|
|
| 9. |
862096
|
[1] |
Voltmeter
|
|
| 10. |
|
|
|
|
| 11. |
862180
|
[1] |
Knob
|
|
| 12. |
1578846
|
[1] |
Rheostat
|
|
| 13. |
843002
|
[1] |
Nut
|
|
| 14. |
828818
|
[6] |
Bulb
|
|
| 15. |
808175
|
[6] |
Bulb socket
|
|
