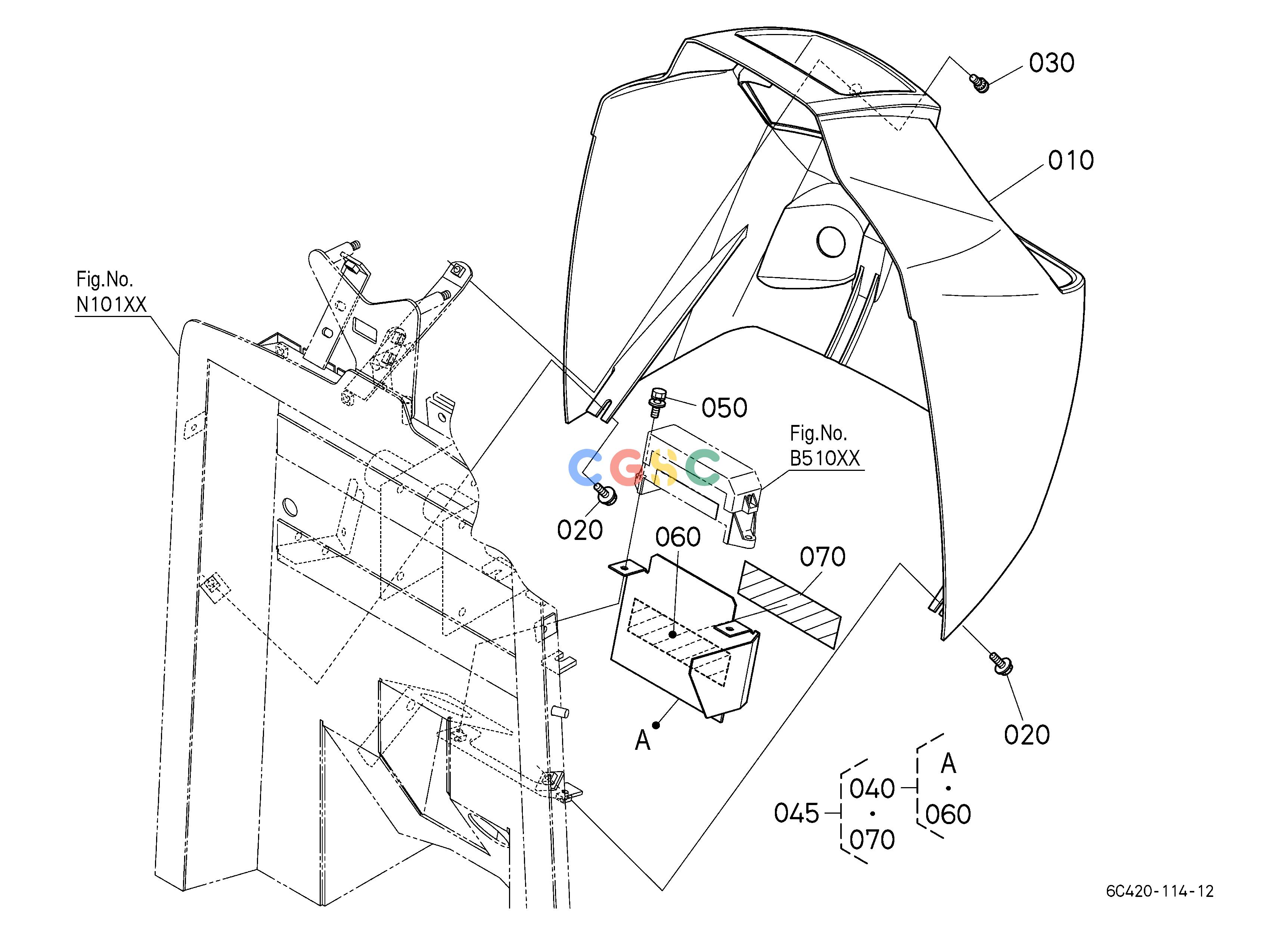

久保田零件查询N10500 PANEL UNDER CABEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
398 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43053510
|
[1] |
COVER(PANEL)
|
2.3760(lbs); 1.080
|
| 020. |
3135118790
|
[2] |
BOLT,FLANGE
|
0.0110(lbs); 0.005
|
| 030. |
T127043072
|
[1] |
SCREW,FLAT HEAD(PHILLIPS)
|
0.0044(lbs); 0.002
|
| 030. |
6C43043070
|
[1] |
SCREW,CSK HD(M5X16)
|
0.0066(lbs); 0.003
|
| 040. |
6C43099390
|
[1] |
COVER,KIT A(HARNESS)
|
0.7392(lbs); 0.336
|
| 045. |
6C43199390
|
[1] |
COVER,KIT B(HARNESS)
|
0.0000(lbs); 0.000
|
| 050. |
0102550625
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 060. |
6C23047430
|
[1] |
LABEL,PARKING
|
0.0022(lbs); 0.001
|
| 070. |
6C23147430
|
[1] |
LABEL,PARKING WARNI.
|
0.0022(lbs); 0.001
|
