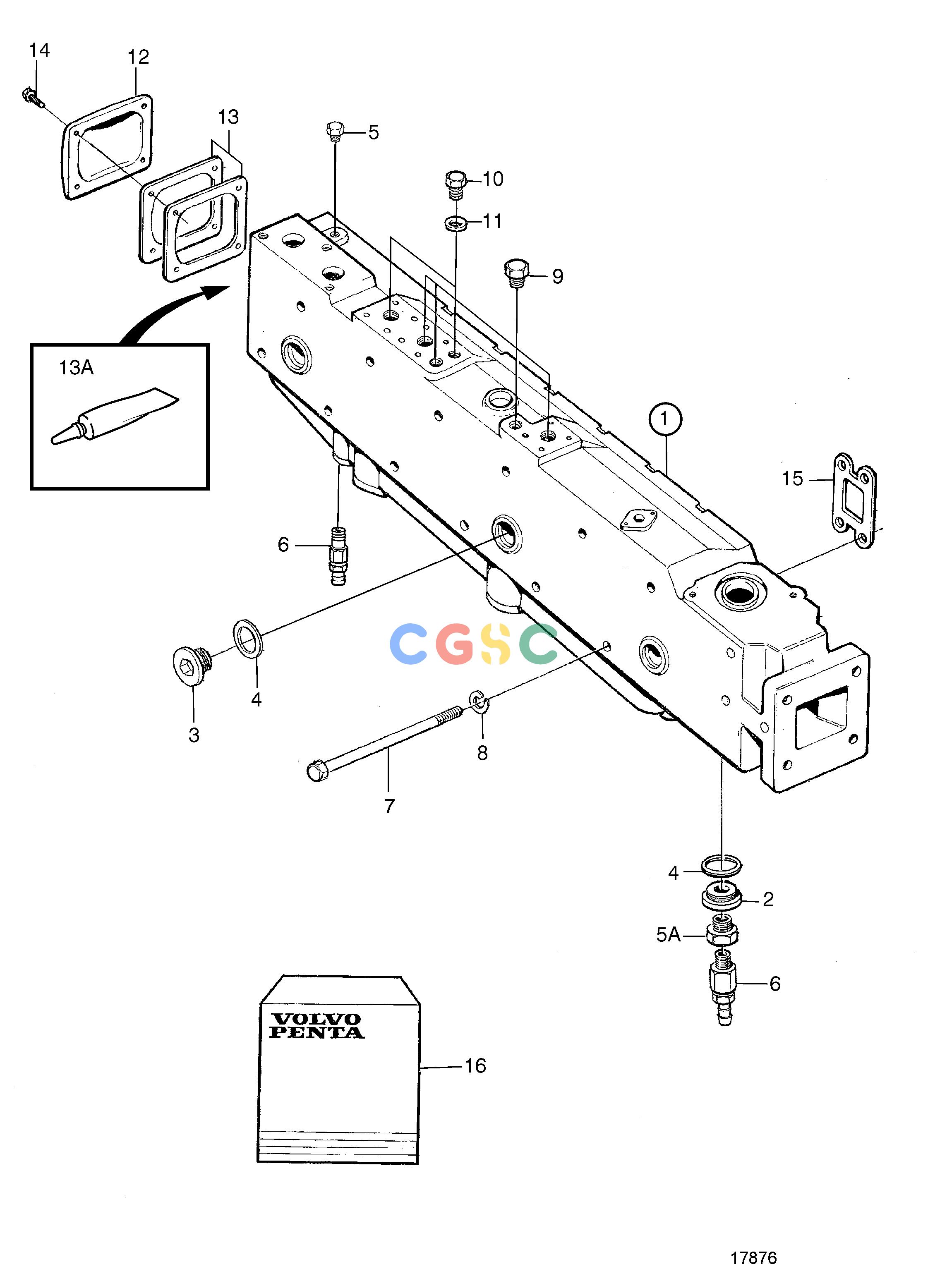

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AIntake and Exhaust SystemExhaust Pipe: 3825345EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
287 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825345
|
[1] |
Exhaust pipe
|
Repl by 3827486., SNXXXXXXXXXX/18411-
|
| 2. |
821335
|
[1] |
Adapter
|
SNXXXXXXXXXX/18411-
|
| 3. |
467367
|
[11] |
Plug
|
|
| 4. |
469328
|
[12] |
Gasket
|
|
| 5. |
479979
|
[5] |
Plug, 1/8-NPTF
|
(191026)
|
| 5A. |
16291
|
[1] |
Reduction nipple
|
SNXXXXXXXXXX/18411-
|
| 6. |
947894
|
[2] |
Shut-off cock
|
|
| 7. |
970966
|
[12] |
Hexagon screw
|
|
| 8. |
941908
|
[12] |
Spring washer
|
|
| 9. |
479956
|
[3] |
Plug, 1/2-NPTF
|
|
| 10. |
960632
|
[2] |
Plug
|
|
| 11. |
947624
|
[2] |
Gasket
|
|
| 12. |
849011
|
[1] |
Cap
|
|
| 13. |
849399
|
[2] |
Gasket
|
Repl by 1161231
|
| 13A. |
1161231
|
[1] |
Sealant
|
Black, 0,31L
|
| 14. |
945444
|
[4] |
Flange screw
|
|
| 15. |
8130038
|
[6] |
Gasket
|
(3165748)
|
| 16. |
876806
|
[1] |
Gasket kit, exhaust manifold
|
|
