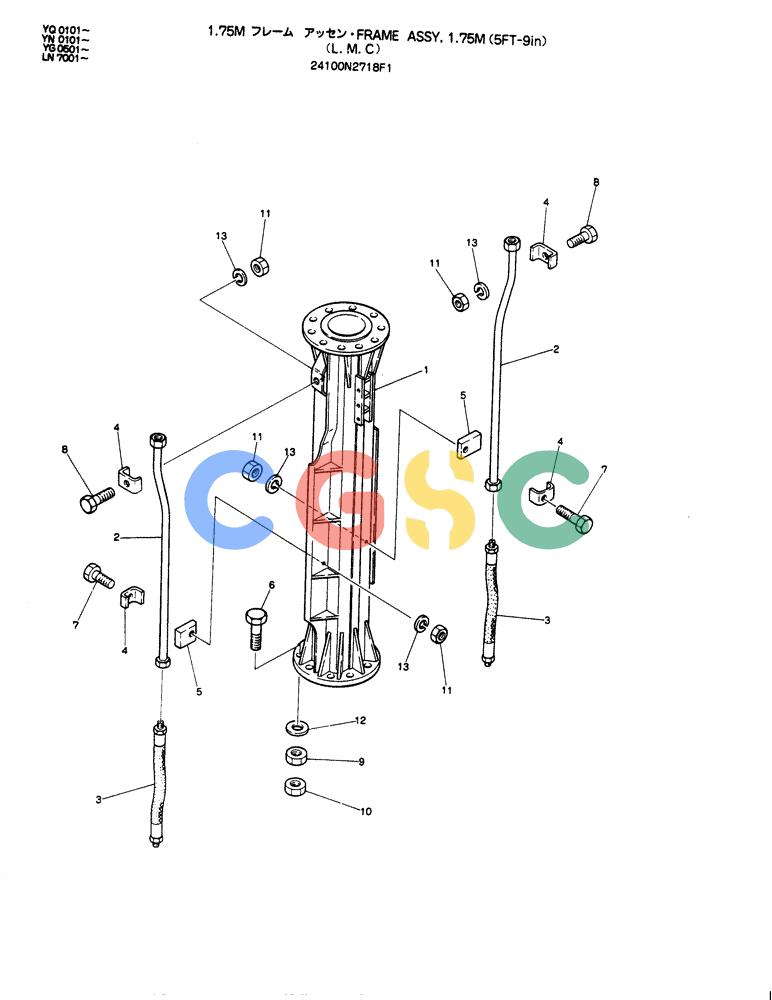

神钢零件查询(CLAMSHELL) - ATTACHMENT - SK200 EXCAVATORS (1/91-12/97) (352-61) - FRAME ASSY, 1.75M 24100N2718F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
696 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2412N305 | [1] | FRAME | |
| 2. | 2418T10254 | [2] | TUBE | |
| 3. | ZX28N12060 | [2] | HOSE | KOB |
| 4. | 2432T1734 | [4] | CLAMP | |
| 5. | 2412T571 | [2] | PLATE | |
| 6. | ZS13C20070 | [10] | SCREW | KOBM20x2.50x70mm |
| 7. | ZS13C10075 | [2] | SCREW | KOB Superseded by part number: ZS18C10075 |
| 8. | ZS13C10060 | [2] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 9. | ZN12C20016 | [10] | NUT | KOBM20x2.50mm |
| 10. | ZN12C20012 | [10] | NUT | NUT |
| 11. | ZN12C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 12. | ZW11X20000 | [10] | WASHER | KOB |
| 13. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
