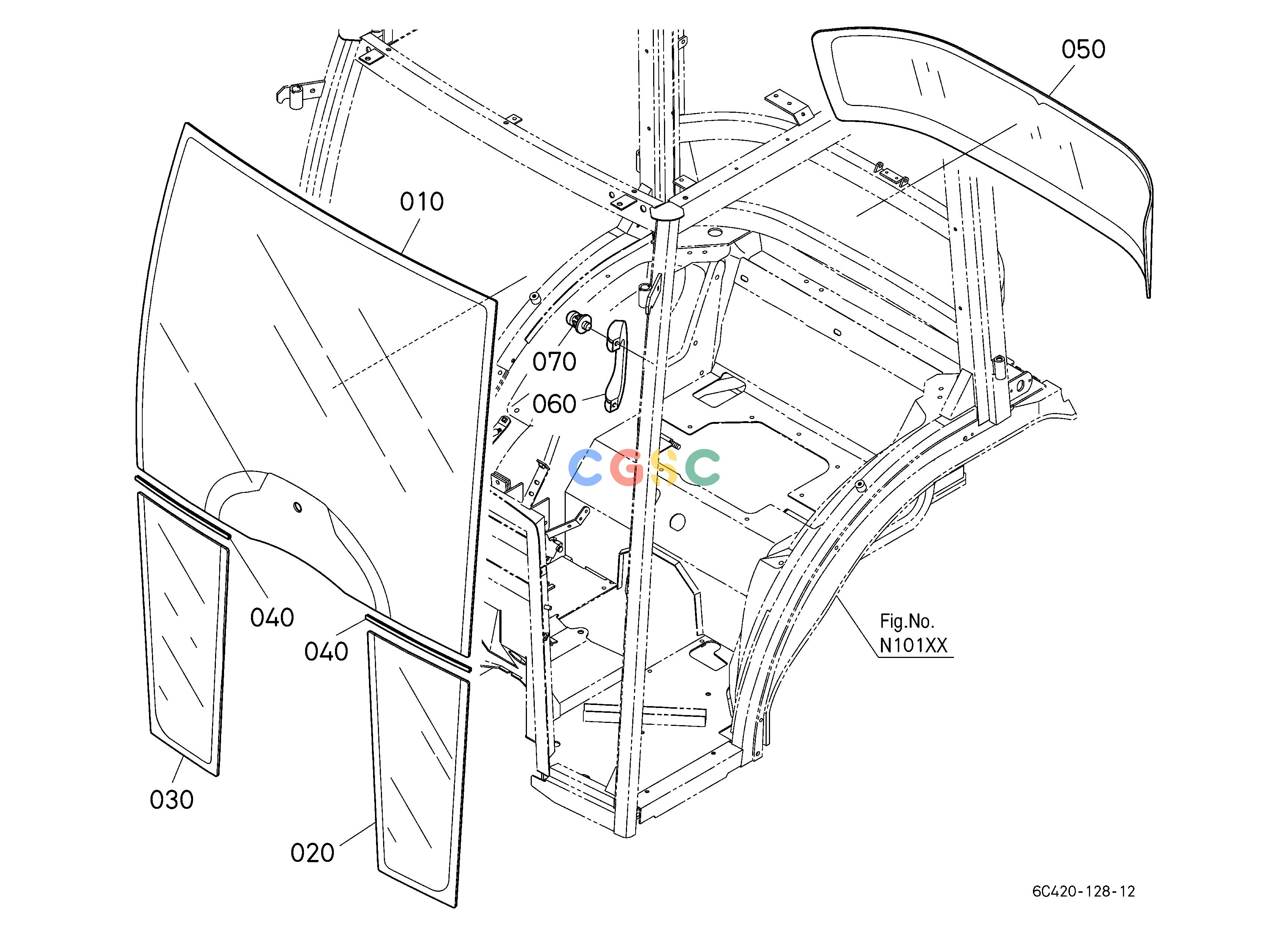

久保田零件查询N20100 FRONT GLASS AND REAR GLASS CABEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
217 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43072310
|
[1] |
GLASS(FRONT,UPPER)
|
20.7900(lbs); 9.450
|
| 010. |
6C43072313
|
[1] |
GLASS(FRONT,UPPER)
|
20.7900(lbs); 9.450
|
| 020. |
6C43072320
|
[1] |
GLASS(FRONT,L LOWER)
|
3.6740(lbs); 1.670
|
| 030. |
6C43072330
|
[1] |
GLASS(FRONT,R LOWER)
|
3.6740(lbs); 1.670
|
| 040. |
6C43072370
|
[2] |
SHIELD(FRONT GLASS)
|
0.0308(lbs); 0.014
|
| 050. |
6C43072480
|
[1] |
GLASS(REAR,LOWER)
|
6.8200(lbs); 3.100
|
| 060. |
3G71071110
|
[1] |
HANDLE,INSIDE
|
0.2200(lbs); 0.100
|
| 070. |
0102550616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
