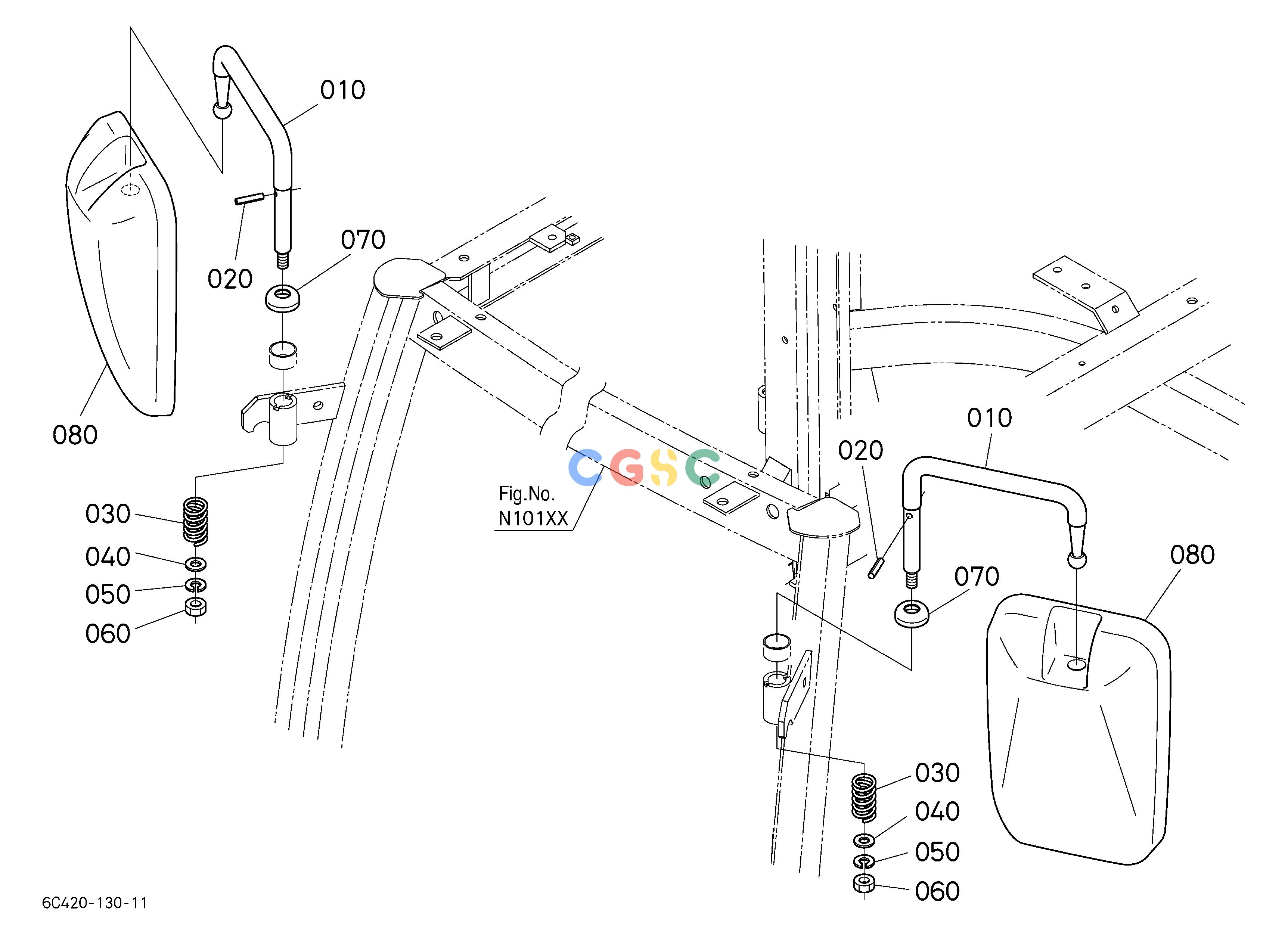

久保田零件查询N30100 REARVIEW MIRROR CABEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
332 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C26073150
|
[2] |
STAY,REARVIEW MIRROR
|
1.4520(lbs); 0.660
|
| 020. |
0541100628
|
[2] |
PIN,SPRING
|
0.0132(lbs); 0.006
|
| 030. |
6A67173170
|
[2] |
SPRING
|
0.0484(lbs); 0.022
|
| 040. |
0401350100
|
[2] |
WASHER,PLAIN
|
0.0088(lbs); 0.004
|
| 050. |
0451250100
|
[2] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 060. |
0211850100
|
[2] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 070. |
6A67173160
|
[2] |
COVER
|
0.0066(lbs); 0.003
|
| 080. |
3F26053342
|
[2] |
MIRROR,ASSY(REARVIEW)
|
1.3200(lbs); 0.600
|
