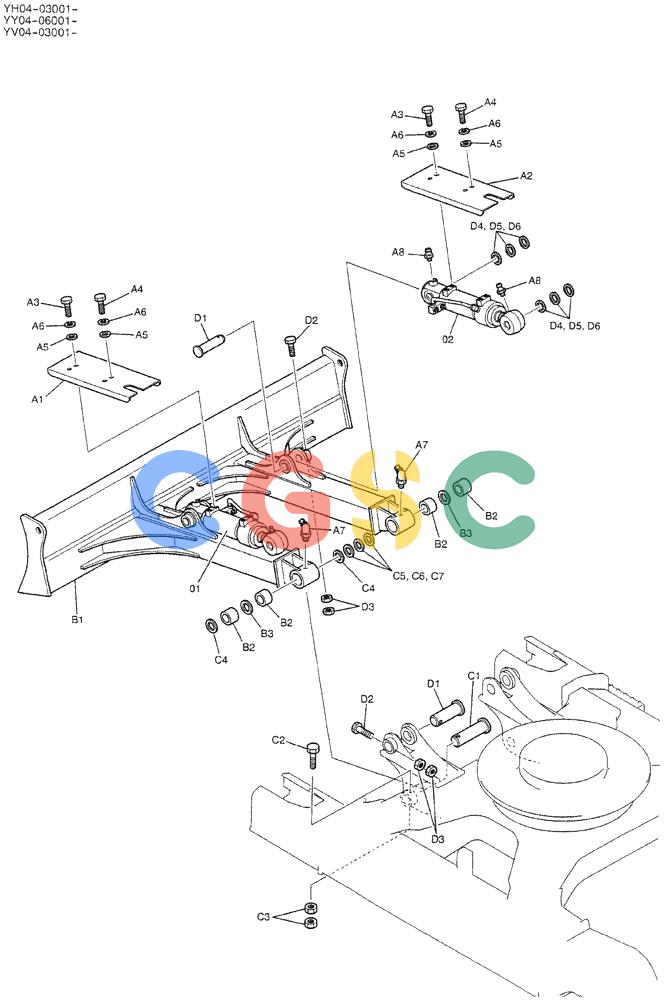

神钢零件查询(DOZER) - ATTACHMENT - SK115SR-1E, -1ES, SK135SR-1E, LC-1E, LC-1ES (1/02-12/03) (02-007) - DOZER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
879 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YX01V00006F1 | [1] | HYDRAULIC CYLINDER | KOBASSY, DOZER (LH) |
| 2. | YX01V00007F1 | [1] | CYLINDER | KOB |
| . . | YX51B00003F1 | [1] | DOZER BLADE | KOB |
| A1. | YX51B01002P1 | [1] | COVER | KOB |
| A2. | YX51B01003P1 | [1] | COVER | KOB |
| A3. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| A4. | ZS18C10016 | [4] | SCREW,Hex, M10 x 16mm | KOBM10x1.50x16mm |
| A5. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A6. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A7. | ZG91V02000 | [2] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB67° x 1/8" PT Superseded by part number: 72283072 |
| A8. | ZG91S02000 | [4] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| . . | YX51B00006F1 | [1] | DOZER BLADE | KOB |
| . . | YY51B00001F1 | [1] | DOZER BLADE | KOB |
| . . | YY51B00005F1 | [1] | DOZER | KOB |
| . . | YY51B00009F1 | [1] | DOZER | KOB |
| . . | YY51B00003F1 | [1] | DOZER | KOB |
| . . | YY51B00011F1 | [1] | DOZER | KOB |
| B1. | NSS | [1] | NOT SOLD SEPARAT | CON |
| B2. | 2405T595C2 | [4] | BUSHING | KOB |
| B3. | 2418T10709 | [2] | COLLAR CLAMP | KOB |
| . . | YX51B00004F1 | [1] | DOZER BLADE | KOB |
| C1. | 2419P1556D5 | [2] | PIN | KOB |
| C2. | ZS18C12120 | [2] | SCREW,Hex, M12 x 120mm | KOBM12x1.75x120mm |
| G3. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| C4. | 2445R138D3 | [4] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| C5. | B16T0442D27 | [2] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOBID 62 x OD 100 x Th 1.2mm |
| C6. | B16T0442D19 | [2] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOBID 62 x OD 100 x Th 1.6mm |
| C7. | B16T0442D20 | [2] | SHIM,100mm OD x 62mm ID x 2.3mm Thk | KOBID 62 x OD 100 x Th 2.3mm |
| . . | YX51B00008F1 | [1] | CYLINDER | KOB |
| D1. | YX51B01006P1 | [4] | PIN | KOB |
| D2. | ZS18C12120 | [4] | SCREW,Hex, M12 x 120mm | KOBM12x1.75x120mm |
| D3. | ZN18C12010 | [8] | NUT | KOBM12x1.75mm |
| D4. | B16T0442D27 | [2] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOBID 62 x OD 100 x Th 1.2mm |
| D5. | B16T0442D19 | [2] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOBID 62 x OD 100 x Th 1.6mm |
| D6. | B16T0442D20 | [2] | SHIM,100mm OD x 62mm ID x 2.3mm Thk | KOBID 62 x OD 100 x Th 2.3mm |
