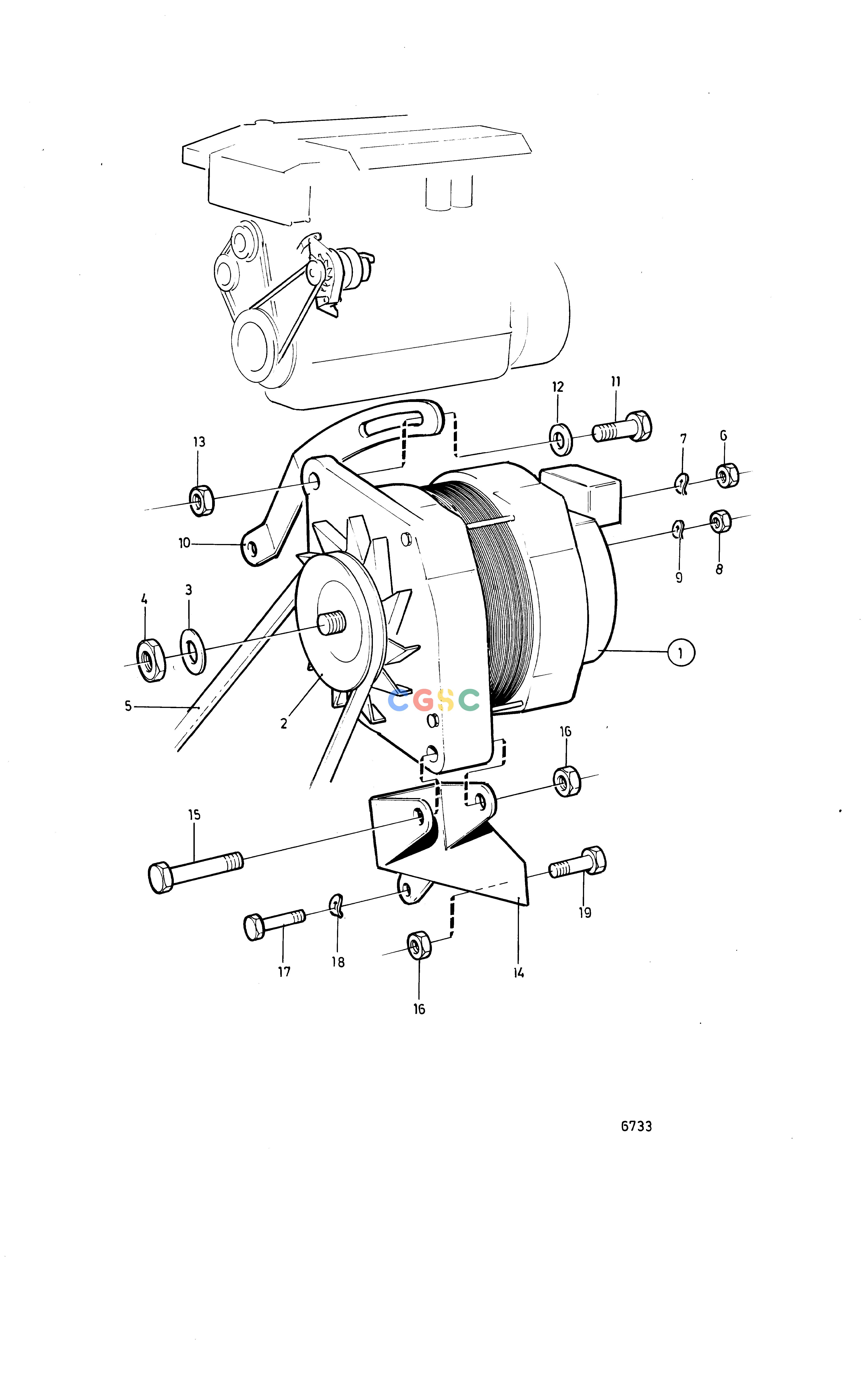

沃尔沃零件查询TAMD60CElectrical SystemAlternator and Installation Components 12V38A, 24V25AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
795 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
841762
|
[1] |
Alternator
|
12V 50A
|
| 1. |
858839
|
[1] |
Alternator
|
14V 50A
|
| 1. |
858840
|
[1] |
Governor
|
|
| 1. |
840632
|
[1] |
Brush retainer
|
|
| 1. |
858956
|
[1] |
Cable terminal
|
|
| 1. |
845940
|
[1] |
Alternator
|
24V 55A
|
| 1. |
849563
|
[1] |
Alternator
|
|
| 1. |
849562
|
[1] |
Governor
|
|
| 2. |
841811
|
[1] |
Pulley
|
|
| 3. |
955900
|
[1] |
Washer
|
|
| 4. |
7743230_035
|
|
nut
|
|
| 5. |
958322
|
[1] |
V-belt
|
|
| 6. |
955781
|
[1] |
Hexagon nut
|
M6
|
| 7. |
941906
|
[1] |
Spring washer
|
|
| 8. |
955780
|
[1] |
Hexagon nut
|
M5
|
| 9. |
941905
|
[1] |
Spring washer
|
|
| 10. |
846678
|
[1] |
Tensioner
|
|
| 11. |
940186
|
[1] |
Hexagon screw
|
|
| 12. |
191172
|
[1] |
Washer
|
|
| 13. |
950353
|
[1] |
Lock nut
|
|
| 14. |
846679
|
[1] |
Bracket
|
|
| 15. |
955555
|
[1] |
Hexagon screw
|
|
| 16. |
950355
|
[2] |
Lock nut
|
|
| 17. |
940161
|
[2] |
Hexagon screw
|
|
| 18. |
941907
|
[2] |
Spring washer
|
|
| 19. |
955551
|
[1] |
Hexagon screw
|
|
