沃尔沃零件查询TAMD60CElectrical SystemElectrical System and InstrumentEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
390 次

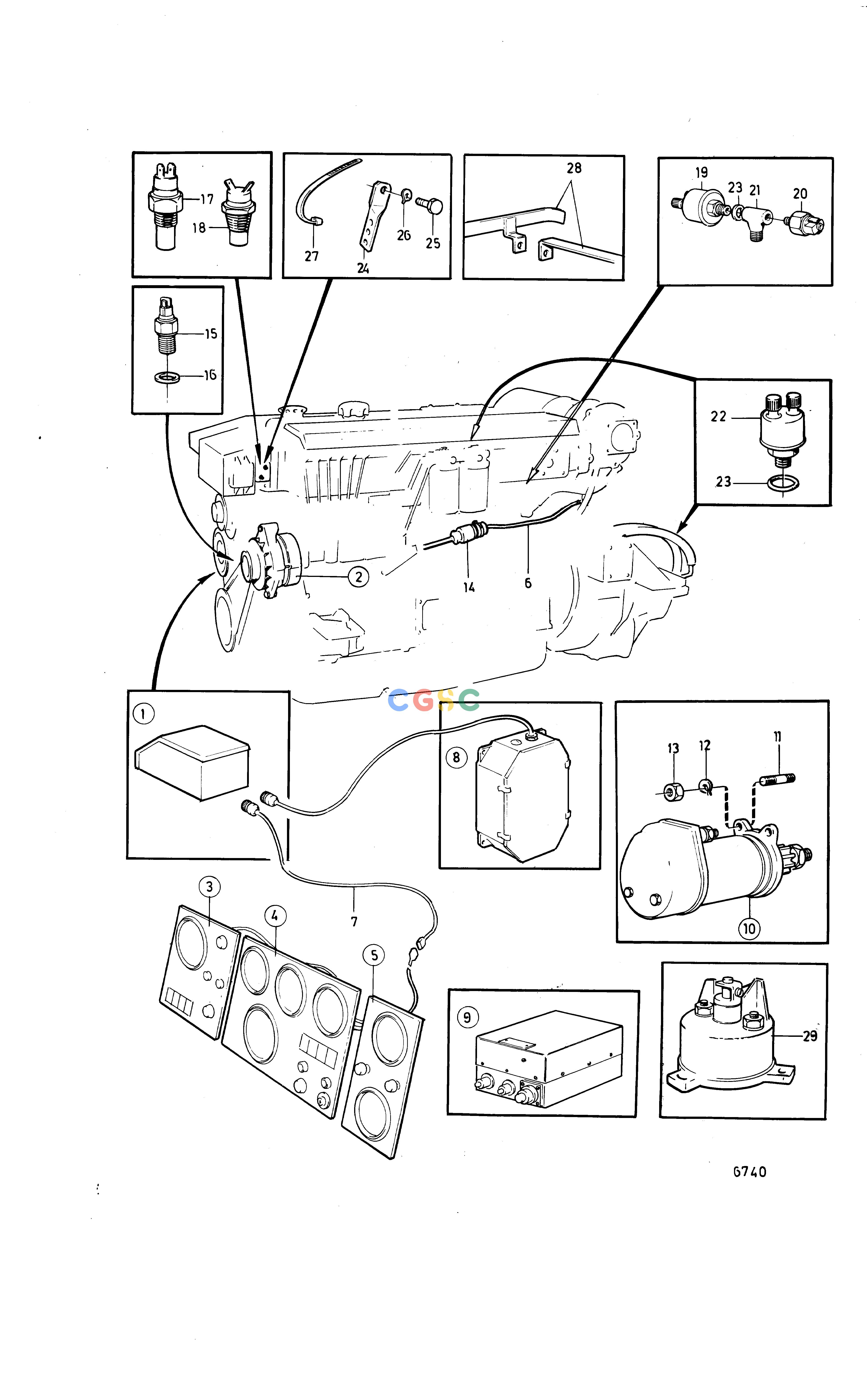

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Std
|
| 2. |
|
|
|
24V 60A
|
| 3. |
|
|
|
See group 9
|
| 4. |
847979
|
[1] |
Instrument panel
|
12V
|
| 4. |
847980
|
[1] |
Instrument panel
|
24V
|
| 5. |
|
|
|
|
| 5. |
846803
|
[1] |
Instrument panel
|
Turbo - reverse gear
|
| 6. |
846604
|
[1] |
Cable block
|
Engine
|
| 7. |
|
|
|
See group 9
|
| 8. |
|
|
|
Single polar., See group 9
|
| 8. |
838419
|
[1] |
Cable block
|
For instrument panel not made by Volvo Penta., See group 9
|
| 9. |
823766
|
[1] |
Governor
|
24V 60A
|
| 10. |
843511
|
[1] |
Starter motor
|
12V repl by 847306
|
| 10. |
843510
|
[1] |
Starter motor
|
24V repl by 847307
|
| 10. |
847306
|
[1] |
Starter motor
|
12V
|
| 10. |
847307
|
[1] |
Starter motor
|
|
| 11. |
953486
|
[3] |
Stud
|
|
| 12. |
942336
|
[3] |
Spring washer
|
|
| 13. |
955827
|
[3] |
Hexagon nut
|
|
| 14. |
|
|
|
|
| 15. |
354671
|
[1] |
Tachometer sensor
|
|
| 16. |
925059
|
[1] |
O-ring
|
See group 2A
|
| 17. |
827150
|
[1] |
Sensor
|
|
| 17. |
837044
|
[1] |
Temperature sensor
|
For double instrumentpanels.
|
| 18. |
822858
|
[1] |
Thermo monitor
|
|
| 19. |
843231
|
[1] |
Oil pressure sensor
|
|
| 19. |
843232
|
[1] |
Oil pressure sensor
|
For double instrumentpanels.
|
| 20. |
848367
|
[1] |
Pressure switch
|
Stop
|
| 21. |
180002
|
[1] |
Nipple
|
|
| 22. |
837781
|
[1] |
Oil pressure sensor, oil pressure sensor reverse gear
|
See group 4A
|
| 22. |
|
|
|
|
| 22. |
837782
|
[1] |
Pressure sensor, pressure sensor charge air cooler
|
See group 2B
|
| 23. |
957181
|
[2] |
Gasket
|
|
| 24. |
952635
|
[1] |
Clamp
|
|
| 25. |
955523
|
[1] |
Hexagon screw
|
|
| 26. |
941907
|
[1] |
Spring washer
|
|
| 27. |
948210
|
[1] |
Cable tie
|
|
| 28. |
|
|
|
|
| 29. |
837772
|
[1] |
Position sensor
|
|
