神钢零件查询(DOZER) - ATTACHMENT - SK200SR, SK200SR-1S, & SK200SRLC-1S (1/91-12/03) (03-001) - CYLINDER ASSY, DOZER (R.H) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
225 次

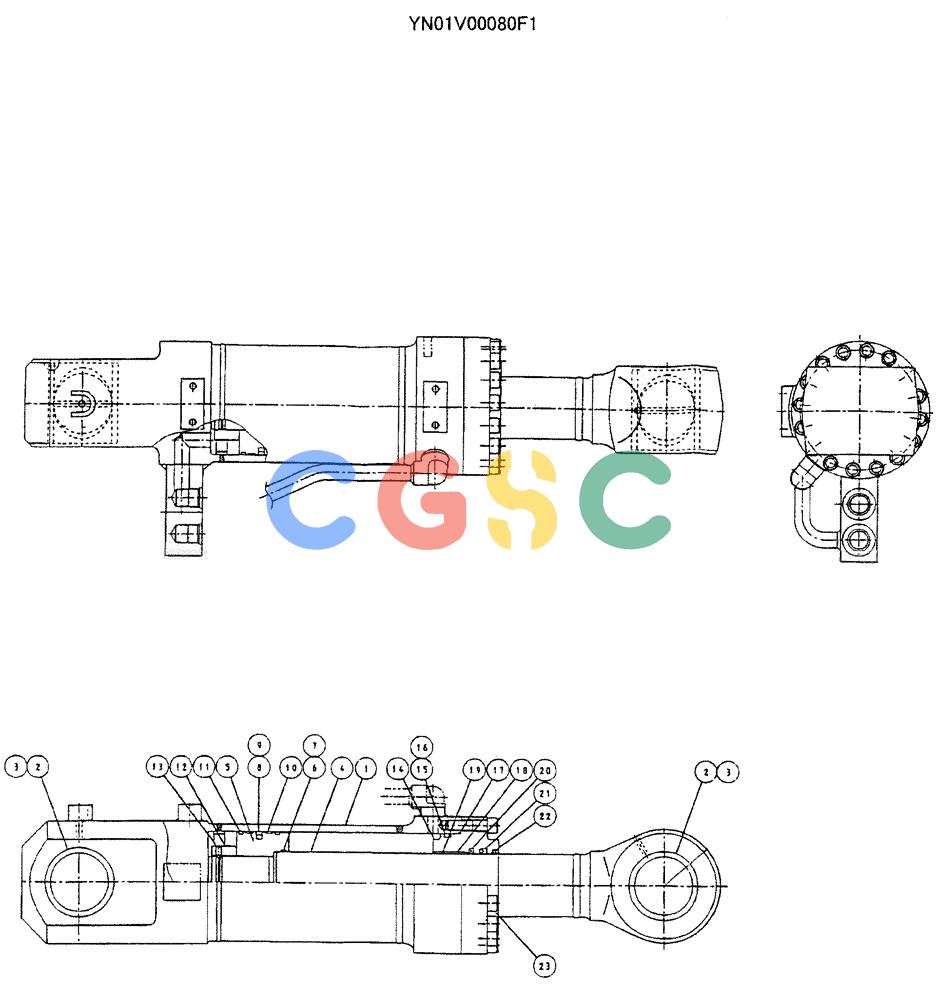

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00080F1 | [1] | CYLINDER | KOBCYLINDER ASSY, DOZER(R.H) |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTUBE, CYLINDER |
| 2. | 2438U552S2 | [2] | BUSHING | KOB |
| 3. | 2445R138D7 | [4] | SEAL,80mm ID x 95mm OD x 4mm Thk | KOBDust -- ID 80 x OD 95 x Th 4mm |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONROD, PISTON |
| 5. | YN01V00080S005 | [1] | PISTON | KOBPISTON |
| 6. | ZD12G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.73 x OD 90mm |
| 7. | ZD75G08500 | [2] | RING | KOBRING, BACK UP |
| 8. | R45P0049D11 | [1] | SEAL | KOB |
| 9. | R45P0051D24 | [1] | O-RING | JES |
| 10. | YN01V00080S010 | [2] | RING | KOBRING, WEAR |
| 11. | YN01V00080S011 | [2] | RING | KOBRING, DUST |
| 12. | YN01V00003S011 | [1] | NUT | KOB |
| 13. | 2438U1280S18 | [1] | SCREW | KOB |
| 14. | YN01V00080S014 | [1] | CYLINDER | KOBCYLINDER HEAD |
| 15. | ZD12P13000 | [1] | O-RING | KOB |
| 16. | ZD85P13000 | [1] | BACK-UP RING | KOB |
| 17. | ZD12G14000 | [1] | O-RING,139.40mm ID x 145.60mm OD x 3.10mm | KOBID 139.40 ± 1.12 x OD 145mm |
| 18. | 2438U1106S17 | [1] | BUSHING | KOB |
| 19. | B38K0039E15 | [1] | CLIP | KOB |
| 20. | YN01V00052S022 | [1] | SEAL | KOBSEAL, BUFFER |
| 21. | 2438U307S35 | [1] | PACKING | KOB |
| 22. | 2438U914D1S22 | [1] | SEAL, DUST SEAL, DUST | SEAL, DUST SEAL, DUST |
| 23. | ZS23C14055 | [16] | SCREW,Hex Socket Head, M14 x 55mm | KOBM14x2.0x55mm |
| . . | YN01V00080R100 | [1] | REPAIR KIT | KOBREPAIR KIT ROD SIDE CONSISTS OF REF. 15(1), 16(1), 17(1), 20(1), 21(1), 22(1) |
| . . | YN01V00080R200 | [1] | REPAIR KIT | KOBREPAIR KIT PISTON SIDE CONSISTS OF REF. 6(1), 7(2), 8(2),. 9(1), 10(2), 11(2) |
| . . | YN01V00080R300 | [1] | REPAIR KIT | KOBREPAIR KIT ALL(ROD+PISTON) CONSISTS OF REF. 6(1), 7(2), 8(2),. 9(1), 10(2), 11(2),. 15(1), 16(1), 17(1), 20(1), 21(1), 22(1) |
| . . | YN01V00080R400 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 1(1), 2(1), 3(2) |
| . . | YN01V00080R500 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 2(1), 3(2), 4(1) |
