神钢零件查询(DOZER) - ATTACHMENT - SK200SR, SK200SR-1S, & SK200SRLC-1S (1/91-12/03) (03-003) - JOINT ASSY, SWIVEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
964 次

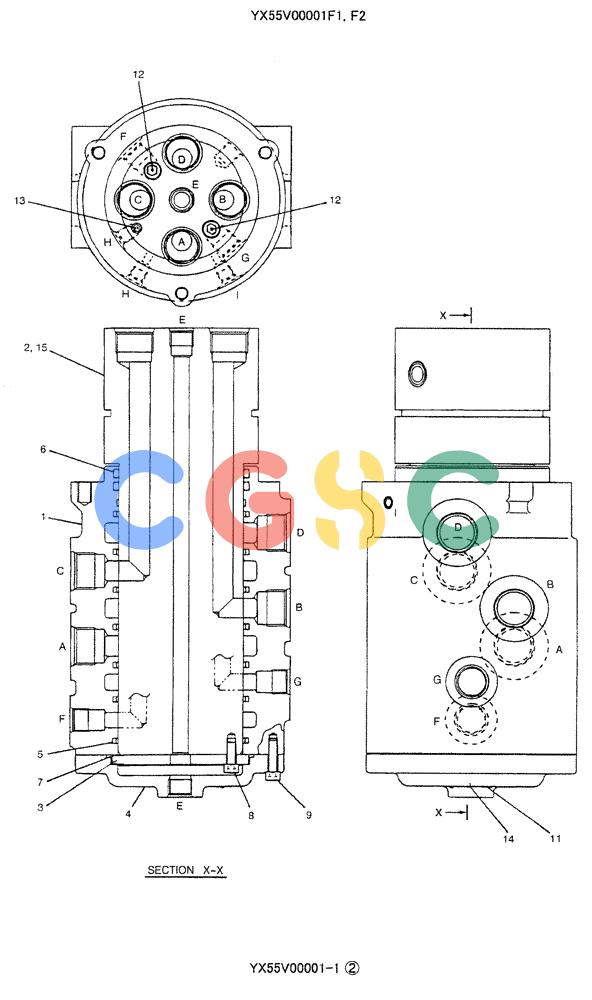

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX55V00001F1 | [1] | HYDRAULIC SWIVEL | KOBJOINT ASSY Superseded by part number: YX55V00001F3 |
| . . | YX55V00001F2 | [1] | FLEXIBLE JOINT | KOBJOINT ASSY, SWIVEL Superseded by part number: YX55V00001F3 |
| 1. | YX55V01003P1 | [1] | BODY | |
| 2. | YX55V01005P1 | [1] | STEM | KOBSTEM, FOR F1 ONLY |
| 3. | 2414T2712 | [1] | PIVOT | KOB |
| 4. | YX55V01001P1 | [1] | GUARD | KOB |
| 5. | 2445Z917 | [7] | SEAL | KOB |
| 6. | ZD11P11000 | [2] | SEAL,109.6mm ID x 120mm OD x 5.2mm Thk | KOBO-Ring -- ID 109.6 ± 0.91 x OD 120mm |
| 7. | ZD11G12500 | [1] | O-RING,3.1mm Thk x 124.4mm ID, 70 Duro | KOBO-Ring -- ID 124.4 ± 1.01 x OD 130mm |
| 8. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 9. | ZS23C08030 | [4] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
| 11. | 2420Z1036D3 | [2] | CLEVIS | KOB2.2x4.6mm |
| 12. | ZE82T08000 | [2] | PLUG | KOB1/2" PT |
| 13. | ZE82T02000 | [1] | PLUG | KOBPipe, 1.25" PT |
| 14. | YN22T00194P1 | [1] | TYPE PLATE | KOBNAME PLATE |
| 15. | YX55V01006P1 | [1] | STEM, FOR F2 ONLY | |
