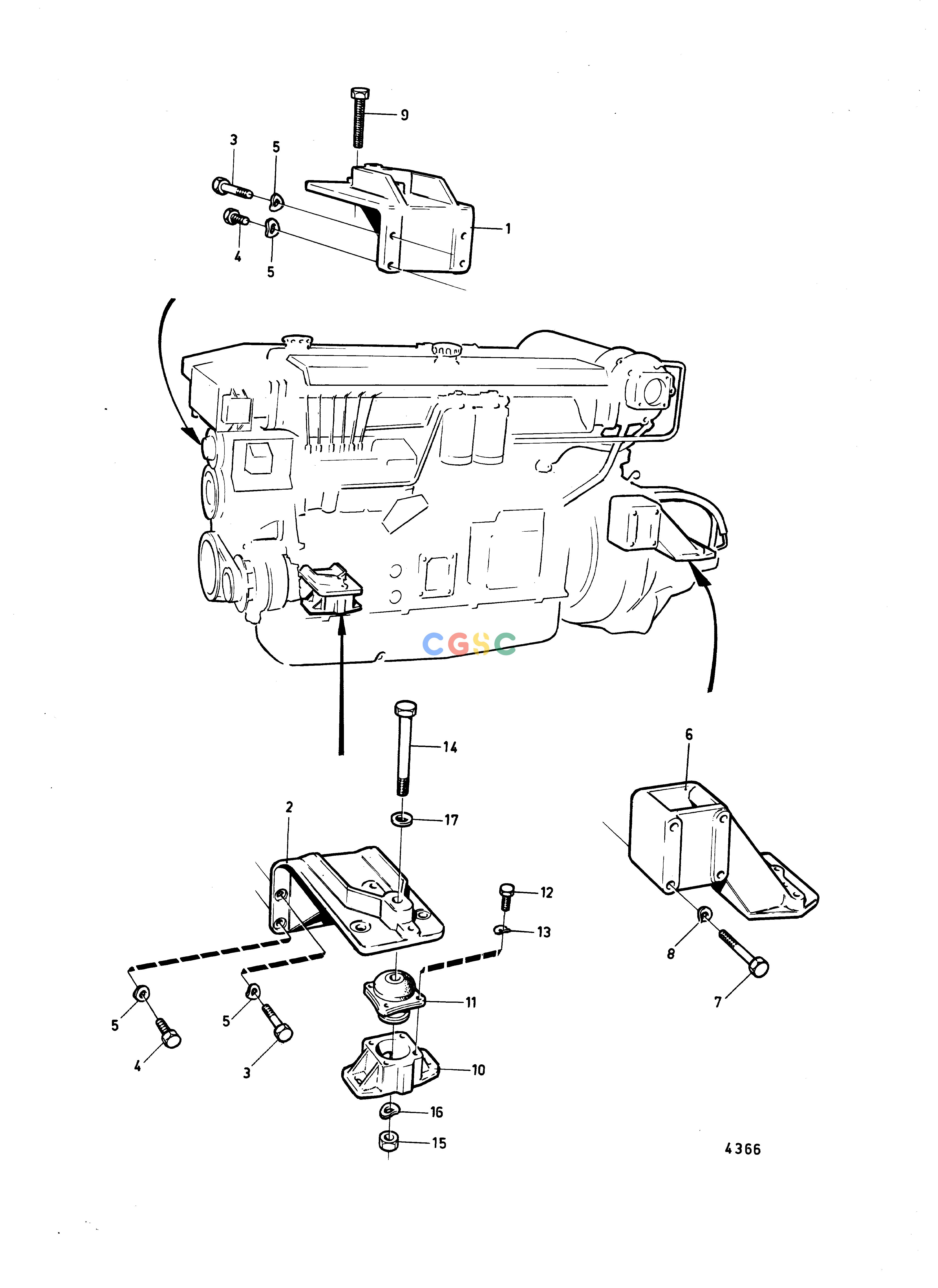

沃尔沃零件查询TAMD60CEngineEngine SuspensionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
783 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848613
|
[1] |
Bracket
|
S.B
|
| 2. |
848612
|
[1] |
Bracket
|
P
|
| 2. |
842328
|
[1] |
Bracket
|
For alternator 823765, P see group 3
|
| 3. |
955566
|
[4] |
Hexagon screw
|
|
| 4. |
955562
|
[4] |
Hexagon screw
|
|
| 5. |
940280
|
[8] |
Spring washer
|
|
| 6. |
842136
|
[2] |
Bracket
|
|
| 7. |
941857
|
[8] |
Hexagon screw
|
|
| 8. |
940280
|
[8] |
Spring washer
|
|
| 9. |
837717
|
[4] |
Screw
|
|
| 10. |
837716
|
[4] |
Anchorage
|
|
| 11. |
837227
|
[4] |
Rubber cushion
|
|
| 12. |
955317
|
[16] |
Hexagon screw
|
|
| 13. |
941908
|
[16] |
Spring washer
|
|
| 14. |
955378
|
[2] |
Hexagon screw
|
|
| 15. |
955785
|
[4] |
Hexagon nut
|
|
| 16. |
941912
|
[4] |
Spring washer
|
|
| 17. |
955900
|
[4] |
Washer
|
|
