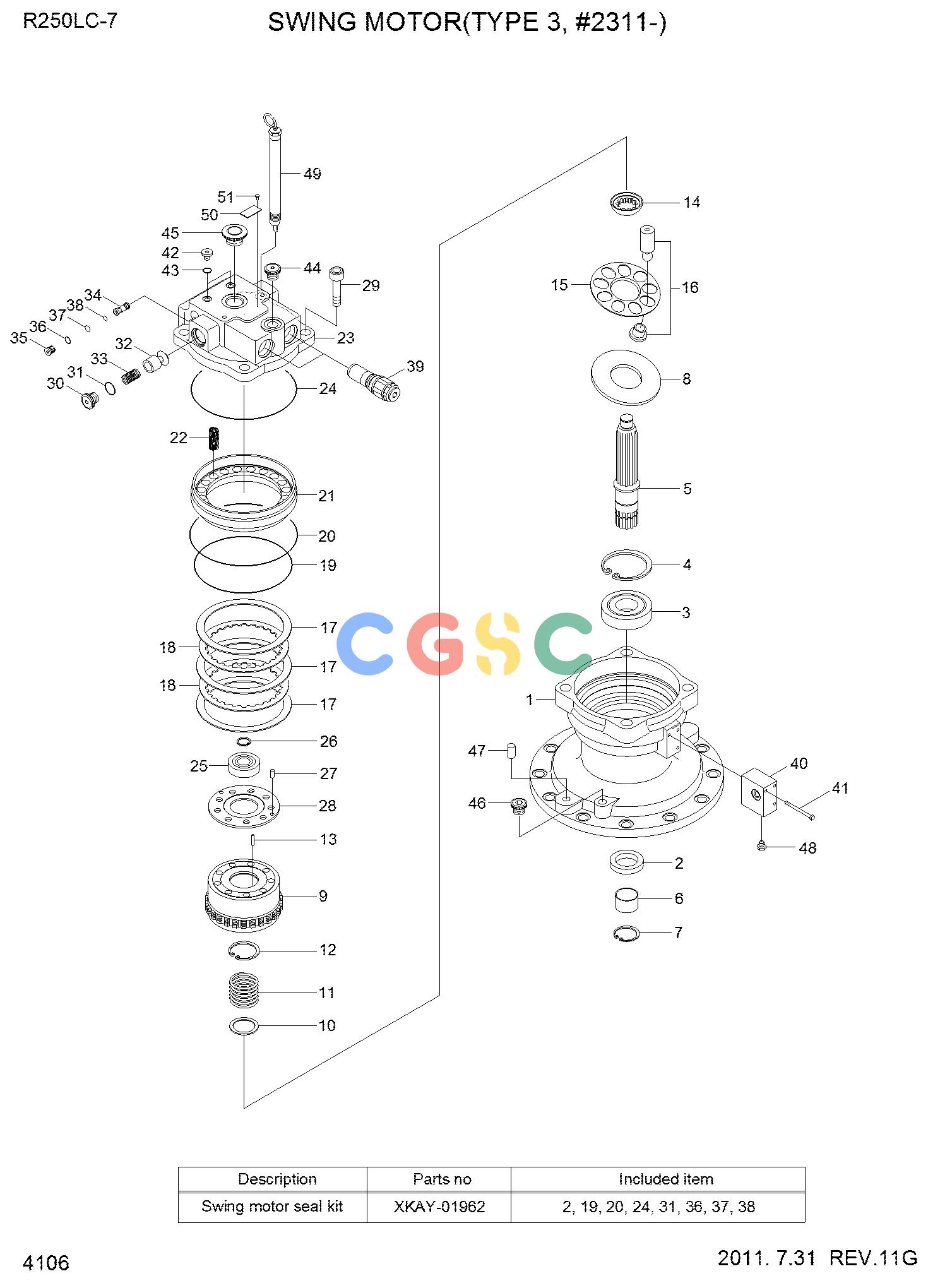

现代零件查询R250LC-7 SWING MOTOR(TYPE 3, #2311-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
868 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| N . |
31N7-10180
|
[1] |
SWING MOTOR ASSY
|
|
| -1. |
31N7-11160
|
[1] |
SWING MOTOR
|
|
| 1. |
XKAY-01956
|
[1] |
BODY
|
|
| K2. |
XKAY-00521
|
[1] |
SEAL-OIL
|
|
| 3. |
XKAY-00522
|
[1] |
BEARING-ROLLER
|
|
| 4. |
XKAY-00523
|
[1] |
RING-SNAP
|
|
| 5. |
XKAY-01957
|
[1] |
SHAFT
|
|
| 6. |
XKAY-00525
|
[1] |
BUSHING
|
|
| 7. |
XKAY-00526
|
[1] |
RING-STOP
|
|
| 8. |
XKAY-01527
|
[1] |
PLATE-SHOE
|
|
| -11. |
XKAY-01958
|
[1] |
ROTARY KIT
|
|
| -111. |
XKAY-01529
|
[1] |
BLOCK KIT-CYL
|
|
| 9. |
XKAY-01530
|
[1] |
BLOCK-CYLINDER
|
|
| 28. |
XKAY-01550
|
[1] |
PLATE-VALVE
|
|
| 10. |
XKAY-01531
|
[2] |
SEAT-SPRING
|
|
| 11. |
XKAY-01532
|
[1] |
SPRING-CYLINDER
|
|
| 12. |
XKAY-01533
|
[1] |
RING-SNAP
|
|
| 13. |
XKAY-01534
|
[6] |
PIN
|
|
| -112. |
XKAY-01535
|
[1] |
RETAINER KIT
|
|
| 14. |
XKAY-01536
|
[1] |
GUIDE-BALL
|
|
| 15. |
XKAY-01537
|
[1] |
PLATE-SET
|
|
| -113. |
XKAY-01959
|
[1] |
PISTON KIT
|
|
| 16. |
XKAY-01960
|
[9] |
PISTON ASSY
|
|
| 17. |
XKAY-01540
|
[3] |
PLATE
|
|
| 18. |
XKAY-01541
|
[2] |
PLATE-FRICTION
|
|
| K19. |
XKAY-01542
|
[1] |
O-RING
|
|
| K20. |
XKAY-01543
|
[1] |
O-RING
|
|
| 21. |
XKAY-01544
|
[1] |
PISTON-BRAKE
|
|
| 22. |
XKAY-01545
|
[20] |
SPRING-B/P
|
|
| 23. |
XKAY-01546
|
[1] |
COVER-REAR
|
|
| K24. |
XKAY-01547
|
[1] |
O-RING
|
|
| 25. |
XKAY-01875
|
[1] |
BEARING-ROLLER
|
|
| 26. |
XKAY-01549
|
[1] |
RING-SNAP
|
|
| 27. |
XKAY-00510
|
[2] |
PIN
|
|
| 29. |
XKAY-01551
|
[4] |
BOLT-WRENCH
|
|
| 30. |
XKAY-00188
|
[2] |
PLUG
|
|
| K31. |
XKAY-01447
|
[2] |
O-RING
|
|
| 32. |
XKAY-00186
|
[2] |
POPPET
|
|
| 33. |
XKAY-00187
|
[2] |
SPRING
|
|
| 34. |
XKAY-01552
|
[2] |
REACTIONLESS VLV ASSY
|
|
| 35. |
XKAY-01553
|
[2] |
PLUG
|
|
| K36. |
XKAY-01554
|
[2] |
RING-BACK UP
|
|
| K37. |
XKAY-00320
|
[2] |
O-RING
|
|
| K38. |
XKAY-01555
|
[2] |
O-RING
|
|
| 39. |
XKAY-01963
|
[2] |
RELIEF VALVE ASSY
|
|
| 40. |
XKAY-00315
|
[1] |
TIME DELAY VALVE ASSY
|
|
| 41. |
XKAY-00149
|
[3] |
BOLT-WRENCH
|
|
| 42. |
XKAY-00150
|
[2] |
PLUG
|
|
| 43. |
XKAY-00151
|
[2] |
O-RING
|
|
| 44. |
XKAY-00975
|
[1] |
PLUG
|
|
| 45. |
XKAY-00548
|
[1] |
PLUG
|
|
| 46. |
XKAY-01219
|
[1] |
PLUG
|
|
| 47. |
XKAY-00140
|
[1] |
PLUG
|
|
| 48. |
XKAY-00140
|
[2] |
PLUG
|
|
| 49. |
XKAY-00638
|
[1] |
LEVEL GAUGE
|
|
| 50. |
XKAY-01961
|
[1] |
NAME PLATE
|
|
| 51. |
XKAY-00277
|
[2] |
RIVET
|
|
| 52. |
XKAY-01962
|
[AR] |
SEAL KIT
|
|
