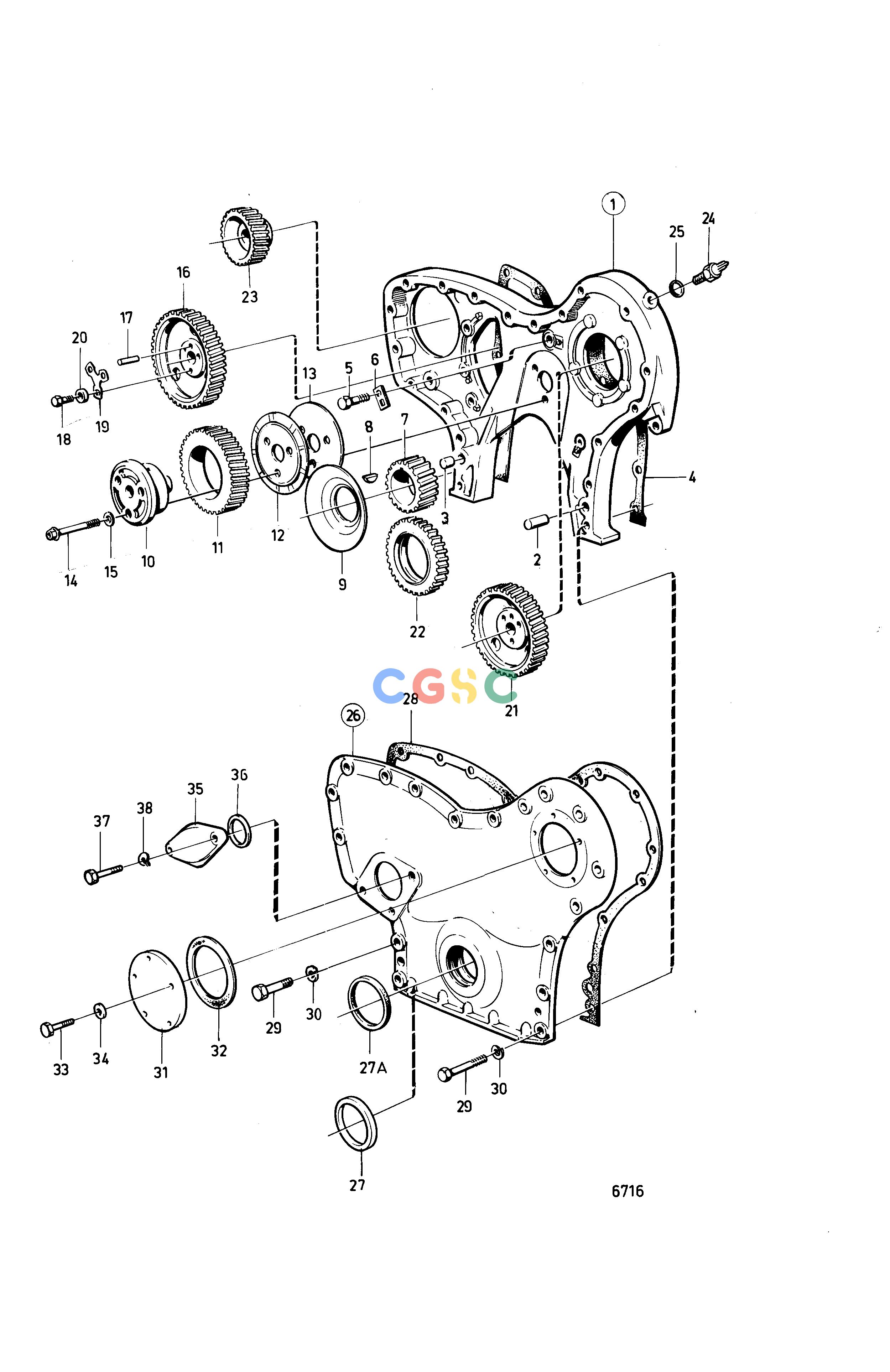

沃尔沃零件查询TAMD60CEngineTiming Gear Casing and Timing GearsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
465257
|
[1] |
Timing gear casing
|
|
| 2. |
941511
|
[1] |
Pin
|
|
| 3. |
941510
|
[1] |
Pin
|
|
| 4. |
421057
|
[1] |
Gasket
|
|
| 5. |
955525
|
[5] |
Hexagon screw
|
|
| 6. |
941571
|
[5] |
Tab washer
|
|
| 7. |
421080
|
[1] |
Crankshaft gear
|
|
| 8. |
422253
|
[1] |
Woodruff key
|
|
| 9. |
420172
|
[1] |
Oil deflector
|
|
| 10. |
467463
|
[1] |
Bearing spindle
|
|
| 11. |
467461
|
[1] |
Idler gear
|
|
| 12. |
467529
|
[1] |
Thrust washer
|
|
| 13. |
467528
|
[1] |
Bearing shield
|
|
| 14. |
422316
|
[3] |
Flange screw
|
|
| 15. |
942180
|
[3] |
Disc spring
|
|
| 16. |
421079
|
[1] |
Gear
|
|
| 17. |
950588
|
[1] |
Pin
|
|
| 18. |
940128
|
[3] |
Hexagon screw
|
|
| 19. |
467052
|
[1] |
Lock washer
|
|
| 20. |
467055
|
[3] |
Washer
|
|
| 21. |
842467
|
[1] |
Gear
|
See group 2C
|
| 22. |
421046
|
[1] |
Idler gear
|
|
| 23. |
820637
|
[1] |
Gear
|
See group 2B
|
| 24. |
354671
|
[1] |
Tachometer sensor
|
|
| 25. |
925059
|
[1] |
O-ring
|
See group 3
|
| 26. |
4773577
|
[1] |
Cover
|
|
| 27. |
471055
|
[1] |
Sealing ring
|
|
| 27A. |
942083
|
[1] |
Sealing ring
|
|
| 28. |
465056
|
[1] |
Gasket
|
|
| 29. |
955530
|
[7] |
Hexagon screw
|
L=83mm
|
| 29. |
955526
|
[4] |
Hexagon screw
|
L=51mm
|
| 29. |
940186
|
[7] |
Hexagon screw
|
L=38mm
|
| 30. |
941907
|
[18] |
Spring washer
|
|
| 31. |
420185
|
[1] |
Hatch
|
|
| 32. |
423123
|
[1] |
Sealing ring
|
|
| 33. |
940094
|
[5] |
Hexagon screw
|
|
| 34. |
941906
|
[5] |
Spring washer
|
|
| 35. |
465735
|
[1] |
Cover
|
|
| 36. |
465058
|
[1] |
Seal
|
|
| 37. |
955535
|
[1] |
Hexagon screw
|
L=32mm
|
| 37. |
955539
|
[1] |
Hexagon screw
|
L=64mm
|
| 38. |
942336
|
[2] |
Spring washer
|
|
