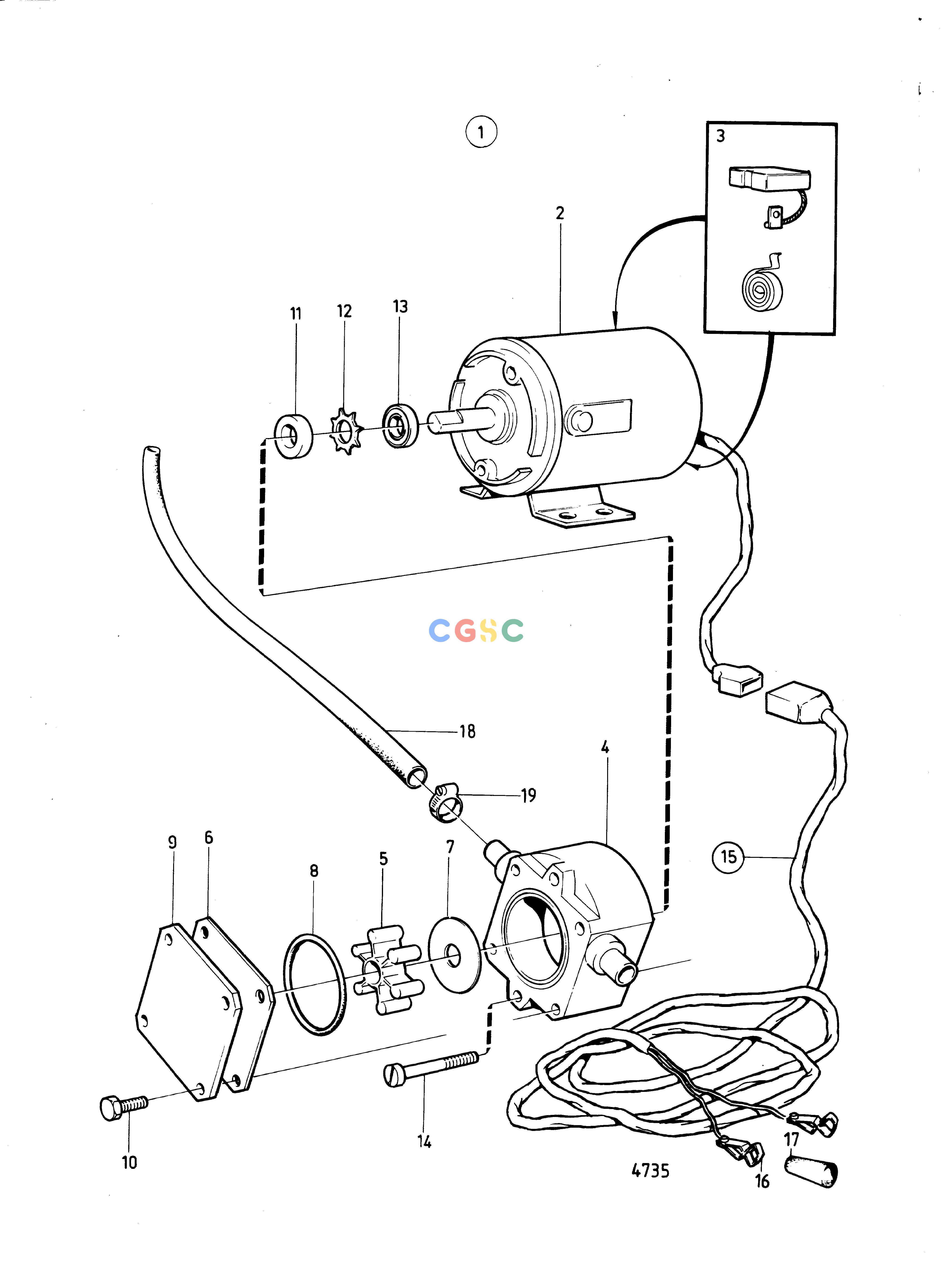

沃尔沃零件查询TAMD60CMiscellaneous EquipmentElectrical Oil Bilge Pump: 843410EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843410
|
[1] |
Oil bilge pump
|
24V
|
| 2. |
842222
|
[1] |
Electric motor
|
24V
|
| 3. |
844014
|
[2] |
Carbon brush set
|
|
| 4. |
844015
|
[1] |
Pump housing
|
|
| 5. |
844022
|
[1] |
Impeller kit
|
|
| 6. |
844017
|
[1] |
Wear washer
|
|
| 7. |
844016
|
[1] |
Wear washer
|
|
| 8. |
|
|
|
|
| 9. |
844018
|
[1] |
Cap
|
|
| 10. |
844021
|
[4] |
Screw
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
844019
|
[1] |
Deflector ring
|
|
| 14. |
844020
|
[2] |
Screw
|
|
| 15. |
843113
|
[1] |
Cable block
|
|
| 16. |
|
|
|
Replaced by 1pc 844280,1pc 844279
|
| 16. |
844280
|
[2] |
Clip
|
Late type
|
| 17. |
844279
|
[1] |
Insulation
|
Late type black
|
| 17. |
844278
|
[1] |
Insulation
|
Late type red
|
| 18. |
|
|
|
L=3000mm
|
| 19. |
943471
|
[3] |
Hose clamp
|
|
