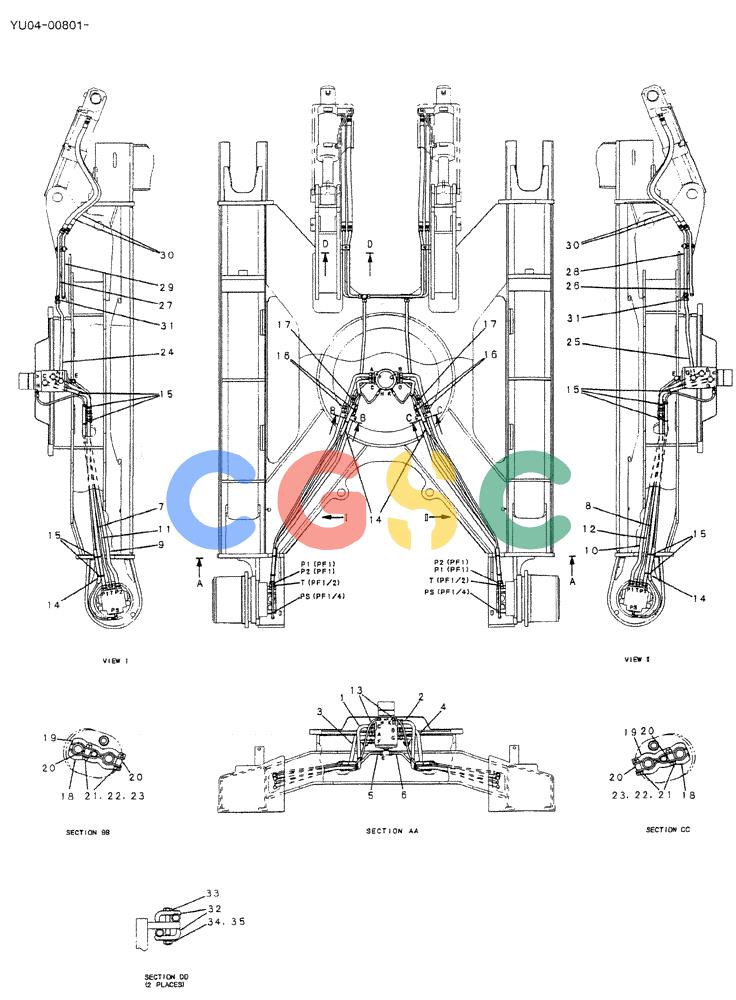

神钢零件查询(DOZER) - ATTACHMENT - SK235SR-1E, SK235SRNLC-1E, & SK235SRNLC-1ES (1/03-12/03) (02-005) - HYD LINES, LOW (FOR NARROW LONG CRAWLER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
697 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF02H00001F1 | [1] | HYD LINES, LOW, FOR NARROW LONG CRAWLER | |
| 1. | YF02H01001P1 | [1] | TUBE | KOB |
| 2. | YF02H01002P1 | [1] | TUBE | KOB |
| 3. | YF02H01003P1 | [1] | TUBE | KOB |
| 4. | YF02H01004P1 | [1] | TUBE | KOB |
| 5. | YF02H01005P1 | [1] | TUBE | KOB |
| 6. | YF02H01006P1 | [1] | TUBE | KOB |
| 7. | LQ02H01139P1 | [1] | RIGID TUBE | KOB |
| 8. | LQ02H01140P1 | [1] | RIGID TUBE | KOB |
| 9. | LQ02H01141P1 | [1] | RIGID TUBE | KOB |
| 10. | LQ02H01142P1 | [1] | RIGID TUBE | KOB |
| 11. | LQ02H01143P1 | [1] | RIGID TUBE | KOB |
| 12. | LQ02H01144P1 | [1] | RIGID TUBE | KOB |
| 13. | ZX23M04290 | [2] | FLEXIBLE HOSE | KOB2900mm Long (114-11/64 in) |
| 14. | 2420Z1224D4 | [4] | HOSE | KOBGuard -- ID 22 x OD 26 x 300mm Long (11-13/16 in) |
| 15. | PY01P01043D3 | [10] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 16. | ZA23B28000 | [4] | CONNECTION | KOBM36x1.50x43mm Long |
| 17. | ZA23B18000 | [2] | HYD CONNECTOR | KOB |
| 18. | YN02H01187P1 | [2] | CLAMP | KOB |
| 19. | YN02H01188P1 | [2] | CLAMP | KOB |
| 20. | 2418T24324D2 | [4] | SPACER | KOB |
| 21. | ZS18C08040 | [4] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 22. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 23. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 24. | YN02H01321P1 | [1] | TUBE | KOB |
| 25. | YN02H01322P1 | [1] | TUBE | KOB |
| 26. | YF02H01007P1 | [1] | TUBE | KOB |
| 27. | YF02H01008P1 | [1] | TUBE | KOB |
| 28. | YF02H01009P1 | [1] | TUBE | KOB |
| 29. | YF02H01010P1 | [1] | TUBE | KOB |
| 30. | ZX56N10110 | [4] | HOSE | KOB |
| 31. | ZA53B22000 | [2] | TEE | KOB |
| 32. | ZC26X22011 | [4] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 33. | ZS18C10090 | [2] | SCREW,Hex, M10 x 90mm | KOBM10x1.50x90mm |
| 34. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 35. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
