卡特零件查询（730） 535-7855: FILTER GP-DIESEL PARTICULATE
广数供应链运营团队, 15 02月, 2025，浏览：
999 次

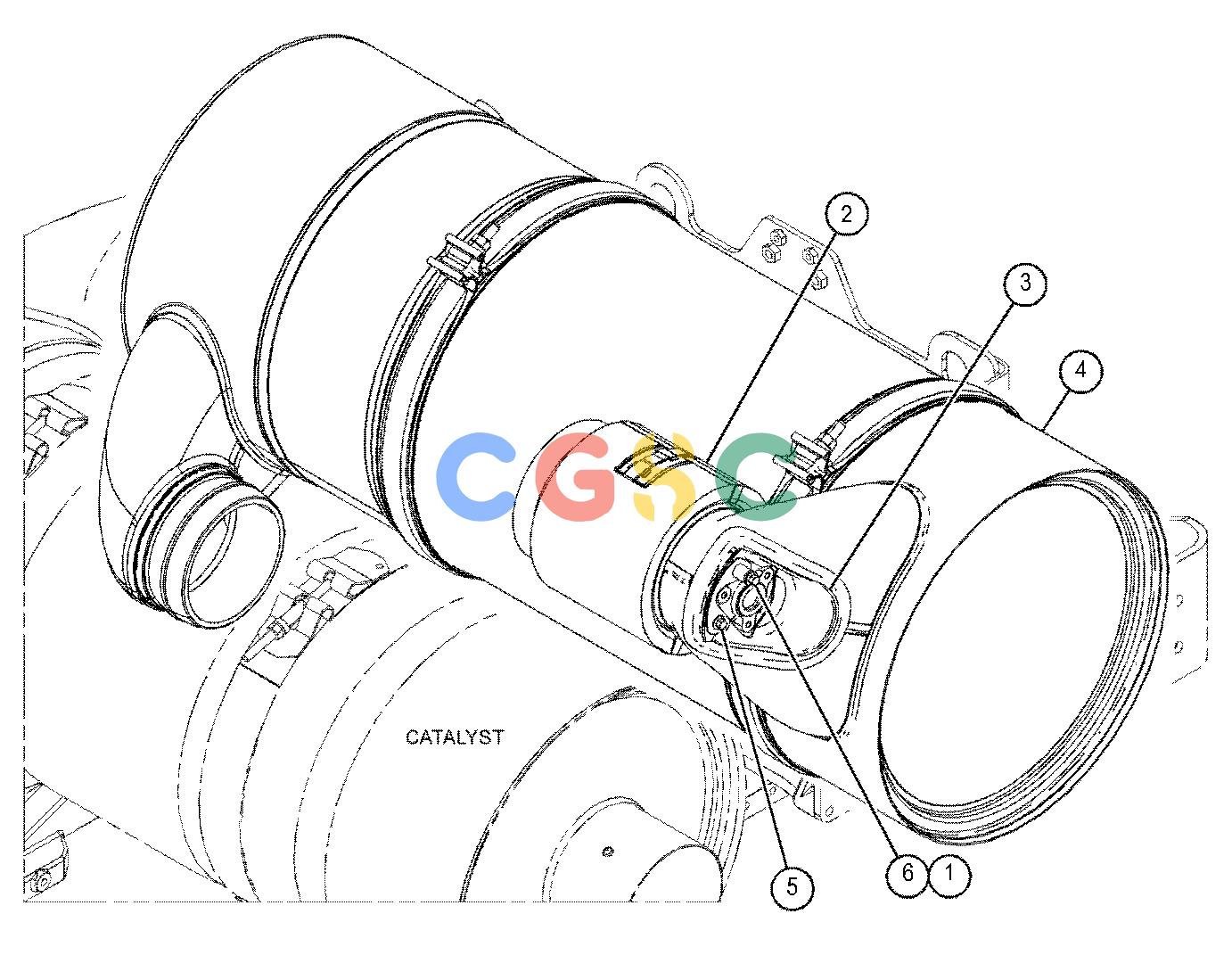

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 127-1991 | [1] | SPACER(8.2X13X15-MM THK) | |
| 2. | 375-0973 | [1] | SHIELD-HEAT | |
| 3. | 378-3221 | [1] | SHIELD-HEAT | |
| 4. | 535-7856JNP | [1] | FILTER GP-DIESEL PARTICULATE | |
| | 375-0931 | [2] | CLAMP | |
| 5. | 319-3515M | [1] | BOLT-FLANGE HEAD(M6X1X10-MM) | |
| 6. | 358-5522M | [1] | BOLT-FLANGE HEAD(M6X1X25-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 390-0666J | [1] | KIT-MODULE-INLET | |
| | | | (INCLUDES CLAMPS & INLET AS) |
| | 390-0677N | [1] | KIT-MODULE-OUTLET | |
| | | | (INCLUDES CLAMPS & OUTLET AS) |
| | 535-7858P | [1] | KIT-FILTER-DIESEL PTCLT | |
| | | | (INCLUDES CLAMPS & FILTER AS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
