沃尔沃零件查询TAMD60CMiscellaneous EquipmentInstrument EquipmentEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
926 次

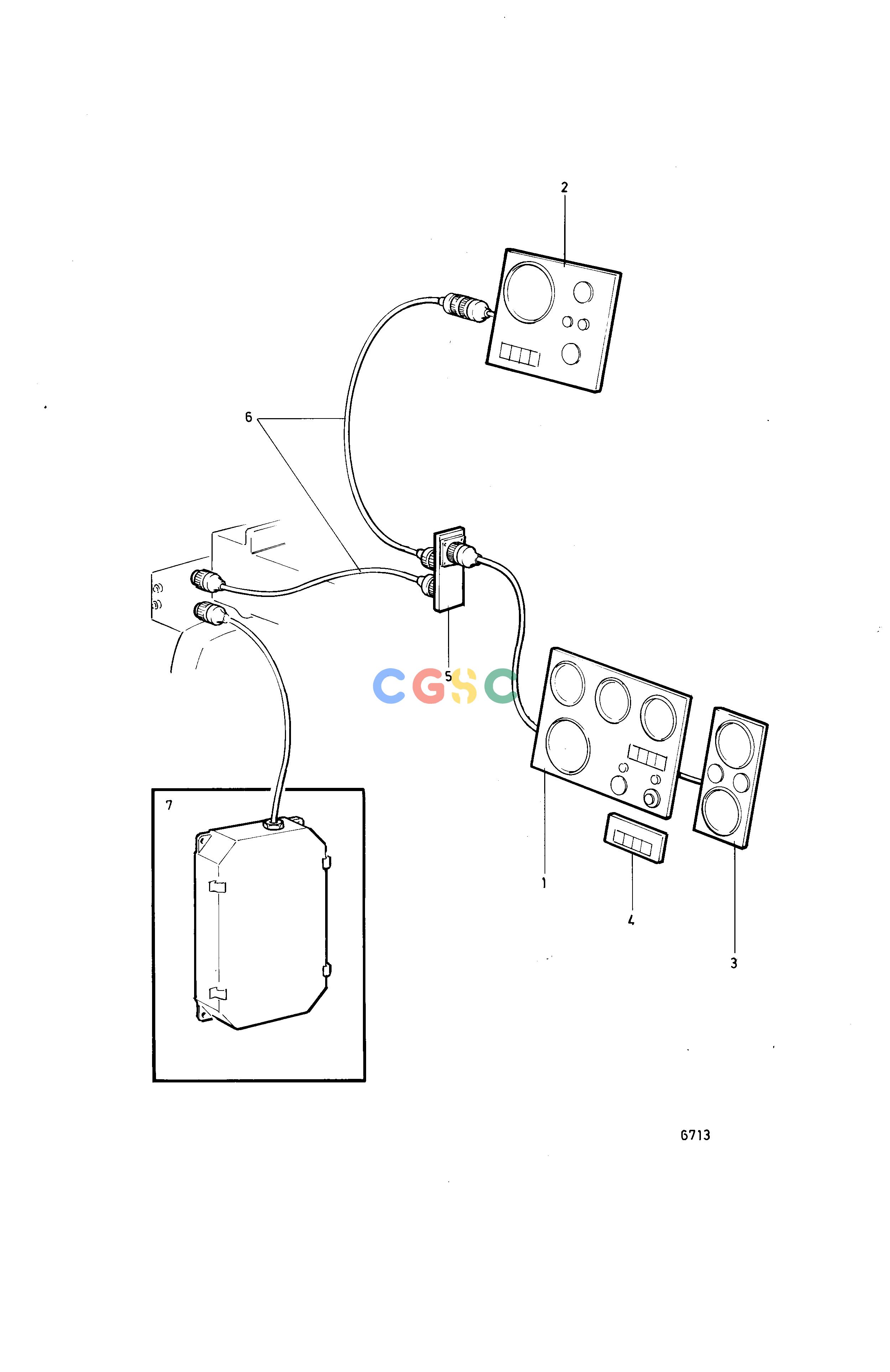

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
24V, see group 3
|
| 2. |
846845
|
[1] |
Instrument panel, flybridge panel instrument panel
|
12V, repl by 847981
|
| 2. |
847981
|
[1] |
Instrument panel
|
|
| 2. |
846846
|
[1] |
Instrument panel, flybridge panel instrument panel
|
24V, repl by 847982
|
| 2. |
847982
|
[1] |
Instrument panel
|
|
| 3. |
846786
|
[1] |
Instrument panel
|
|
| 4. |
846787
|
[1] |
Alarm panel
|
|
| 5. |
828826
|
[1] |
Clutch
|
|
| 6. |
846648
|
[1] |
Extension cable
|
L=3000mm
|
| 6. |
846649
|
[1] |
Extension cable
|
L=5000mm
|
| 6. |
846650
|
[1] |
Extension cable
|
L=7000mm
|
| 7. |
838419
|
[1] |
Cable block, cable unit
|
For instrument panel not made by Volvo Penta
|
| 7. |
|
|
|
Single polar.
|
