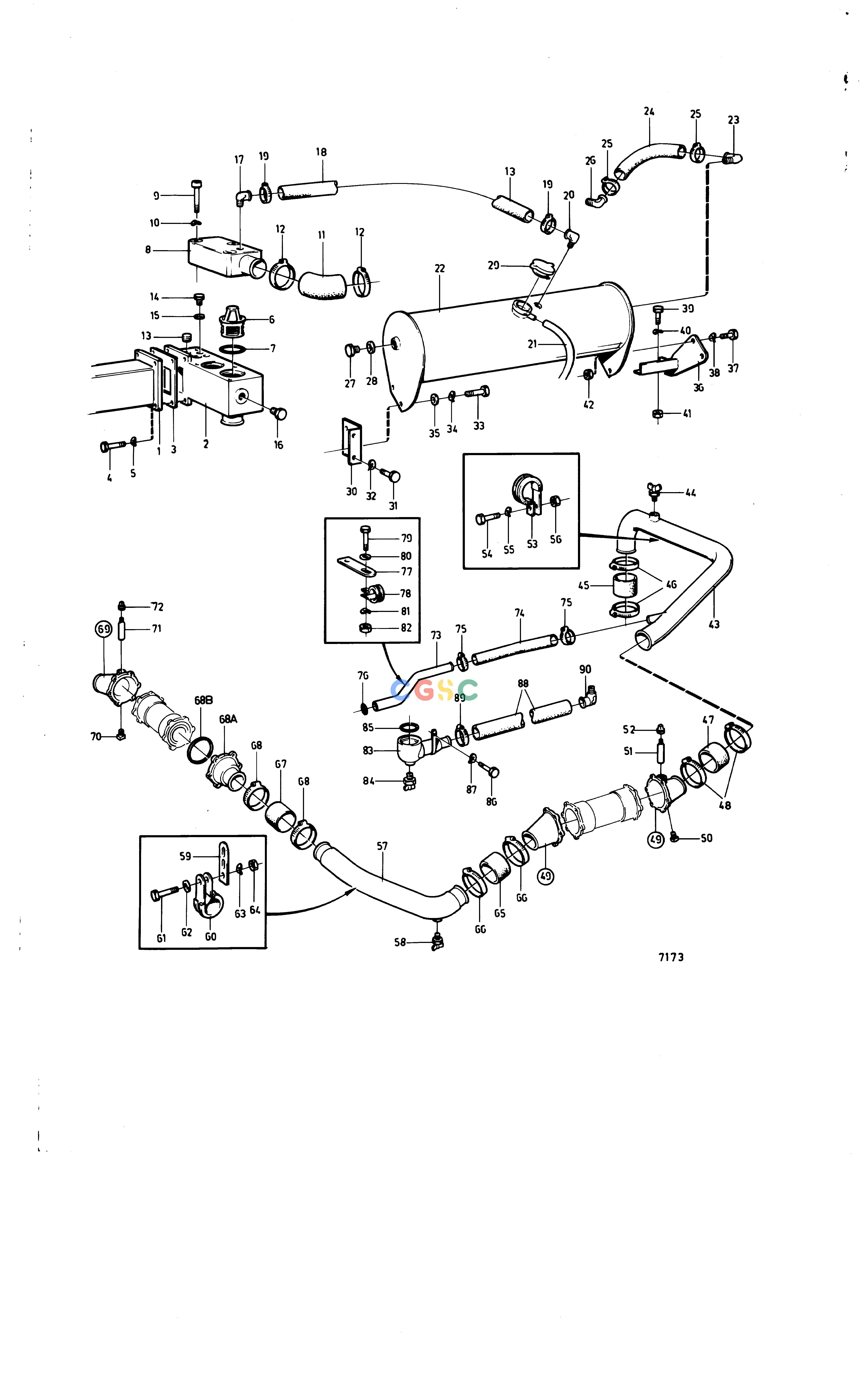

沃尔沃零件查询TAMD60CMiscellaneous EquipmentKeel Cooling SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
916 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
See group 2B
|
| 2. |
824136
|
[1] |
Thermostat housing
|
|
| 3. |
820604
|
[1] |
Gasket
|
|
| 4. |
940134
|
[4] |
Hexagon screw
|
|
| 5. |
941909
|
[4] |
Spring washer
|
|
| 6. |
875788
|
[1] |
Thermostat kit
|
70°
|
| 6. |
875787
|
[1] |
Thermostat kit
|
76°
|
| 7. |
416033
|
[2] |
Sealing ring
|
|
| 8. |
847312
|
[1] |
Upper section
|
|
| 9. |
955540
|
[3] |
Hexagon screw
|
|
| 10. |
942336
|
[3] |
Spring washer
|
|
| 11. |
821128
|
[1] |
Radiator hose
|
|
| 12. |
943479
|
[2] |
Hose clamp
|
|
| 13. |
952077
|
[2] |
Plug
|
|
| 14. |
180761
|
[1] |
Plug
|
|
| 15. |
11996
|
[1] |
Gasket
|
|
| 16. |
82744
|
[1] |
Shut-off cock
|
|
| 17. |
180283
|
[1] |
Elbow nipple
|
|
| 18. |
13776
|
[1] |
Hose
|
|
| 19. |
943471
|
[2] |
Hose clamp
|
|
| 20. |
180283
|
[1] |
Elbow nipple
|
|
| 21. |
192618
|
[1] |
Hose
|
L=1000mm
|
| 22. |
845436
|
[1] |
Expansion tank
|
|
| 23. |
961610
|
[1] |
Hose nipple
|
|
| 24. |
943369
|
[1] |
Rubber hose
|
L=350mm
|
| 25. |
994559
|
[2] |
Hose clamp
|
|
| 26. |
961610
|
[1] |
Hose nipple
|
|
| 27. |
836268
|
[1] |
Plug
|
|
| 28. |
947282
|
[1] |
Gasket
|
|
| 29. |
334687
|
[1] |
Cover
|
|
| 30. |
847314
|
[1] |
Bracket
|
|
| 31. |
959794
|
[2] |
Hexagon screw
|
|
| 32. |
941907
|
[2] |
Spring washer
|
|
| 33. |
940113
|
[2] |
Hexagon screw
|
|
| 34. |
941907
|
[2] |
Spring washer
|
|
| 35. |
955894
|
[2] |
Washer
|
|
| 36. |
847315
|
[1] |
Bracket
|
|
| 37. |
955524
|
[2] |
Hexagon screw
|
|
| 38. |
941907
|
[2] |
Spring washer
|
|
| 39. |
940135
|
[2] |
Hexagon screw
|
|
| 40. |
941907
|
[2] |
Spring washer
|
|
| 41. |
955826
|
[2] |
Hexagon nut
|
|
| 42. |
955826
|
[2] |
Hexagon nut
|
|
| 43. |
847264
|
[1] |
Coolant pipe
|
|
| 44. |
947893
|
[1] |
Shut-off cock
|
|
| 45. |
952979
|
[1] |
Rubber hose
|
L=60mm
|
| 46. |
943479
|
[2] |
Hose clamp
|
|
| 47. |
952980
|
[1] |
Hose
|
L=90mm
|
| 48. |
943479
|
[2] |
Hose clamp
|
|
| 49. |
837129
|
[2] |
End cover
|
|
| 50. |
180759
|
[6] |
Plug
|
|
| 51. |
838929
|
[2] |
Anode
|
|
| 52. |
838928
|
[2] |
Plug
|
|
| 53. |
945734
|
[1] |
Clamp
|
|
| 54. |
955512
|
[1] |
Hexagon screw
|
|
| 55. |
941906
|
[1] |
Spring washer
|
|
| 56. |
955825
|
[1] |
Hexagon nut
|
|
| 57. |
848046
|
[1] |
Coolant pipe
|
|
| 58. |
947893
|
[1] |
Shut-off cock
|
|
| 59. |
965536
|
[1] |
Bracket
|
|
| 60. |
945734
|
[1] |
Clamp
|
|
| 61. |
955512
|
[1] |
Hexagon screw
|
|
| 62. |
955893
|
[1] |
Washer
|
|
| 63. |
941906
|
[1] |
Spring washer
|
|
| 64. |
955825
|
[1] |
Hexagon nut
|
|
| 65. |
952980
|
[1] |
Hose
|
L=90mm
|
| 66. |
952980
|
[2] |
Hose
|
|
| 67. |
952979
|
[1] |
Rubber hose
|
L=60mm
|
| 68. |
943479
|
[2] |
Hose clamp
|
|
| 68A. |
806580
|
[1] |
End plate
|
|
| 68B. |
806153
|
[1] |
Gasket
|
|
| 69. |
837129
|
[1] |
End cover
|
|
| 70. |
180759
|
[3] |
Plug
|
|
| 71. |
838929
|
[1] |
Anode
|
|
| 72. |
838928
|
[1] |
Plug
|
|
| 73. |
847265
|
[1] |
Coolant pipe
|
|
| 74. |
944386
|
[1] |
Rubber hose
|
L=320mm
|
| 75. |
994559
|
[2] |
Hose clamp
|
|
| 76. |
949658
|
[1] |
O-ring
|
|
| 77. |
965534
|
[1] |
Bracket
|
|
| 78. |
952635
|
[1] |
Clamp
|
|
| 79. |
955512
|
[1] |
Hexagon screw
|
|
| 80. |
955893
|
[1] |
Washer
|
|
| 81. |
941906
|
[1] |
Spring washer
|
|
| 82. |
955825
|
[1] |
Hexagon nut
|
|
| 83. |
847266
|
[1] |
Coolant pipe
|
|
| 84. |
947893
|
[1] |
Shut-off cock
|
|
| 85. |
925064
|
[1] |
O-ring
|
|
| 86. |
955523
|
[1] |
Hexagon screw
|
|
| 87. |
941907
|
[1] |
Spring washer
|
|
| 88. |
943369
|
[1] |
Rubber hose
|
L=250mm
|
| 89. |
943473
|
[2] |
Hose clamp
|
|
| 90. |
961610
|
[1] |
Hose nipple
|
|
