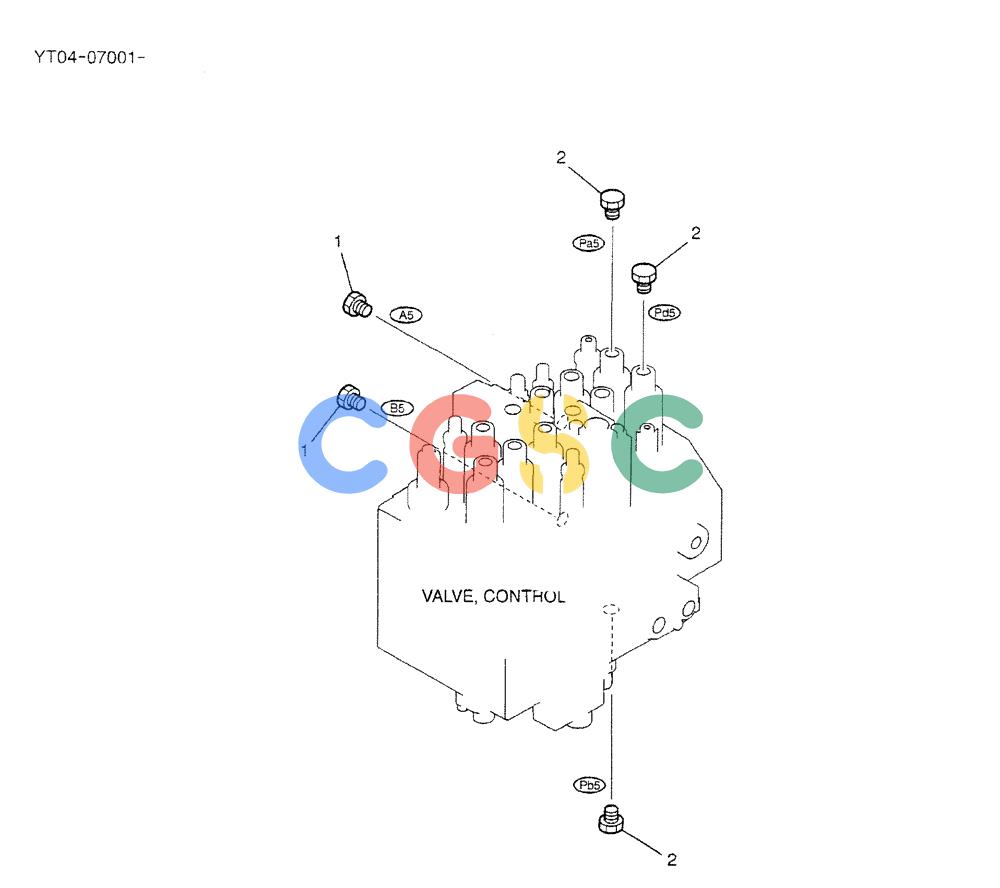

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT03H00019F1 | [1] | HYD LINES, UPP | |
| 1. | ZE72X08000 | [2] | PLUG | KOB1/2" PF, (Incls. O-Ring ZD12P01800) |
| . . | ZD12P01800 | [1] | O-RING | KOB(Part of ZE72X08000), ID 17.8mm x OD 20.2mm, Not Shown |
| 2. | ZE72X04000 | [3] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of ZE72X04000), ID 10.8mm x OD 13.2mm, Not Shown |
