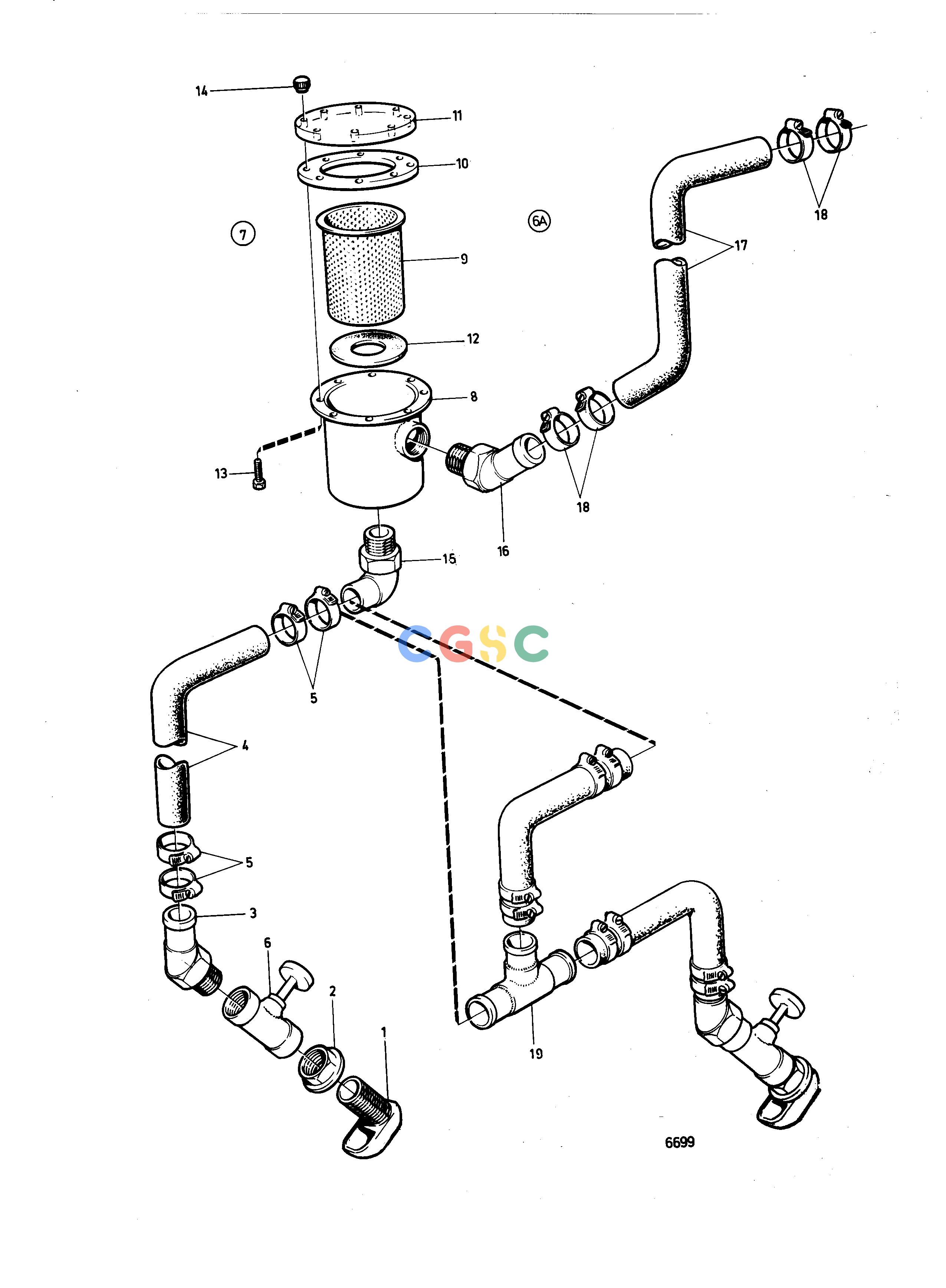

沃尔沃零件查询TAMD60CMiscellaneous EquipmentSea Water Filter and Sea Water IntakeEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
403 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
836846
|
[1] |
Strainer
|
|
| 2. |
836847
|
[1] |
Nut
|
|
| 3. |
828692
|
[1] |
Hose attachment
|
|
| 4. |
858471
|
[1] |
Hose
|
|
| 5. |
961672
|
[4] |
Hose clamp
|
|
| 6. |
828240
|
[1] |
Valve
|
|
| 6A. |
842465
|
[1] |
Filter
|
|
| 7. |
842466
|
[1] |
Sea water filter
|
|
| 8. |
|
|
|
|
| 9. |
843358
|
[1] |
Filter
|
|
| 10. |
843360
|
[1] |
Gasket
|
|
| 11. |
843359
|
[1] |
Cap
|
|
| 12. |
843361
|
[1] |
Gasket
|
|
| 13. |
843362
|
[8] |
Screw
|
|
| 14. |
843357
|
[8] |
Nut
|
|
| 15. |
898683
|
[1] |
Hose attachment
|
|
| 16. |
828692
|
[1] |
Hose attachment
|
|
| 17. |
858471
|
[1] |
Hose
|
|
| 18. |
961672
|
[4] |
Hose clamp
|
|
| 19. |
829512
|
[1] |
T-pipe
|
Used when two sea water intake are mounted
|
