神钢零件查询(DOZER) - ATTACHMENT - SK70SR-1E & SK70SR-1ES ASN YT04-07001 (1/04-12/04) (01-011) - CONTROL ASSY, DOZER (PTPA DOZER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
788 次

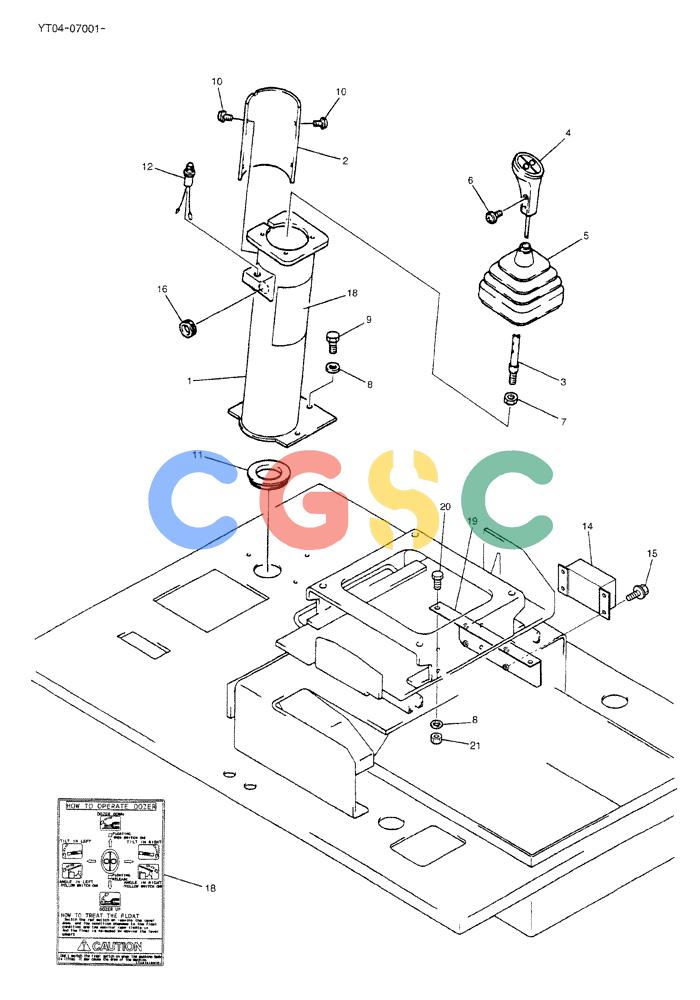

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT14M00002F2 | [1] | CONTROL ASSY, DOZER | |
| 1. | YT14M01010P1 | [1] | BRACKET | |
| 2. | YT14M01008P1 | [1] | COVER | |
| 3. | YT14M01005P2 | [1] | LEVER | |
| 4. | YR03M01301P1 | [1] | GRIP | |
| 5. | 2414R233 | [1] | BOOT | KOB |
| 6. | ZM46C06012 | [2] | SCREW | KOBM06x1.0x12mm (Incls. Washer & Lockwasher) |
| 7. | ZN18C14011 | [1] | NUT | KOBM14x2.0mm |
| 8. | ZW16X08000 | [6] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 9. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 10. | 2420R1092D4 | [4] | BOLT | KOBSEMS-BOLT |
| 11. | 2420Z1189 | [1] | GROMMET | KOB |
| 12. | 2456R445 | [1] | LAMP,24V, 3W | KOB |
| 14. | YT24E00004F1 | [1] | RELAY | KOBASSY |
| 15. | ZM46C05016 | [4] | BOLT,Phillip, M5 x 0.8 x 15mm | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) |
| 16. | 2420R372D17 | [1] | GROMMET | KOBID 25 x OD 35 x hole 30 Th 08mm |
| 18. | YT20T01097P1 | [1] | DECAL | KOBLABEL |
| 19. | YT14M01009P1 | [1] | BRACKET | |
| 20. | ZS28C08030 | [2] | CAPSCREW,Hex Socket Head, M8 x 30mm | KOBSCREW CAP |
| 21. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
