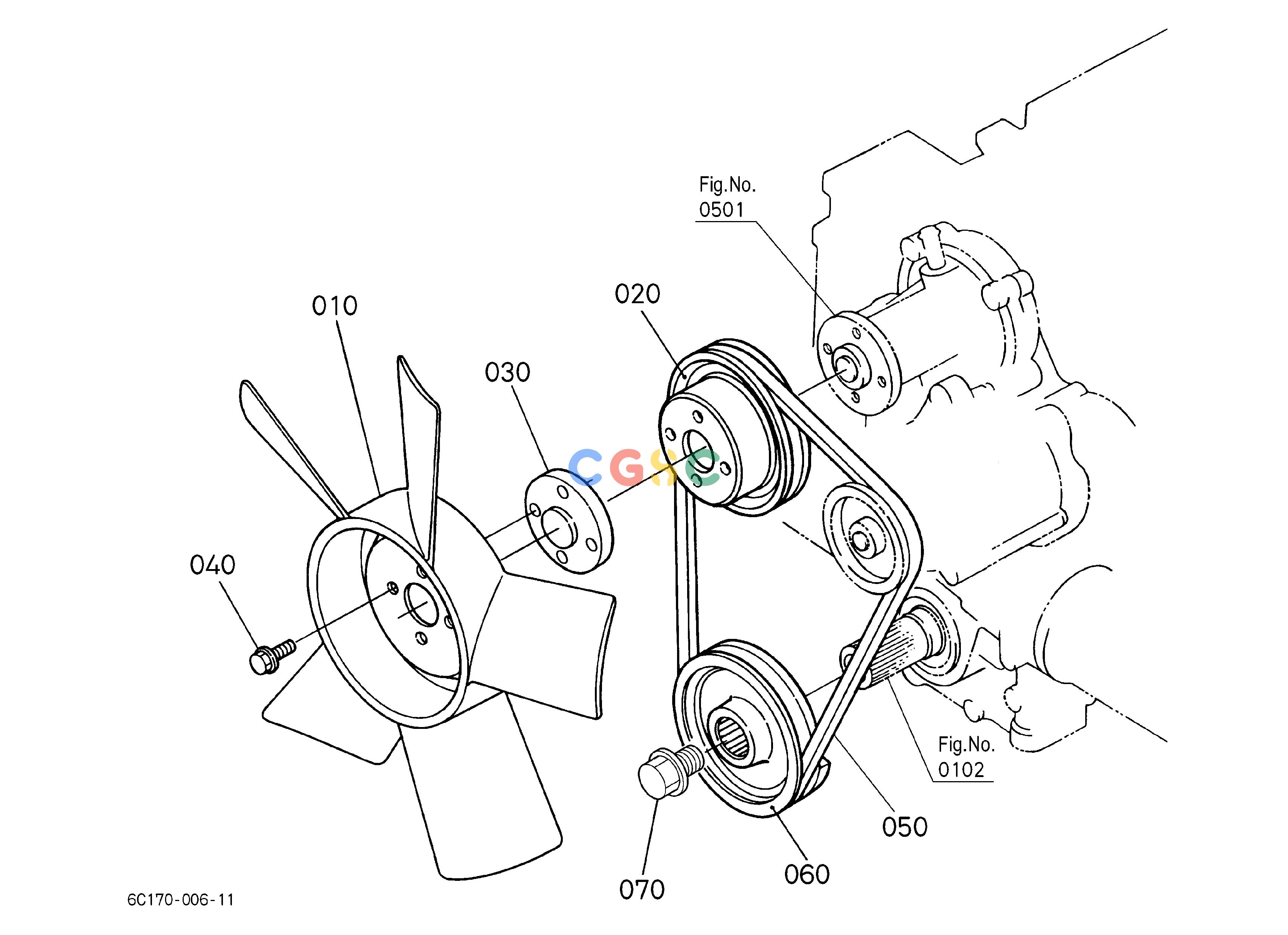

久保田零件查询A40101 FAN ## S.No.<=15496 COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04058510
|
[1] |
FAN
|
0.8140(lbs); 0.370
|
| 020. |
1624174250
|
[1] |
PULLEY FAN
|
0.5280(lbs); 0.240
|
| 030. |
1705374150
|
[1] |
COLLAR FAN
|
0.2420(lbs); 0.110
|
| 040. |
0175450630
|
[4] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 050. |
1624197010
|
[1] |
V BELT
|
0.1760(lbs); 0.080
|
| 060. |
1948272530
|
[1] |
PULLEY FAN DRIVE
|
0.1760(lbs); 0.080
|
| 060. |
1627174280
|
[1] |
PULLEY FAN DRIVE
|
2.2000(lbs); 1.000
|
| 070. |
1624191020
|
[1] |
BOLT FAN DRIVE
|
0.2200(lbs); 0.100
|
