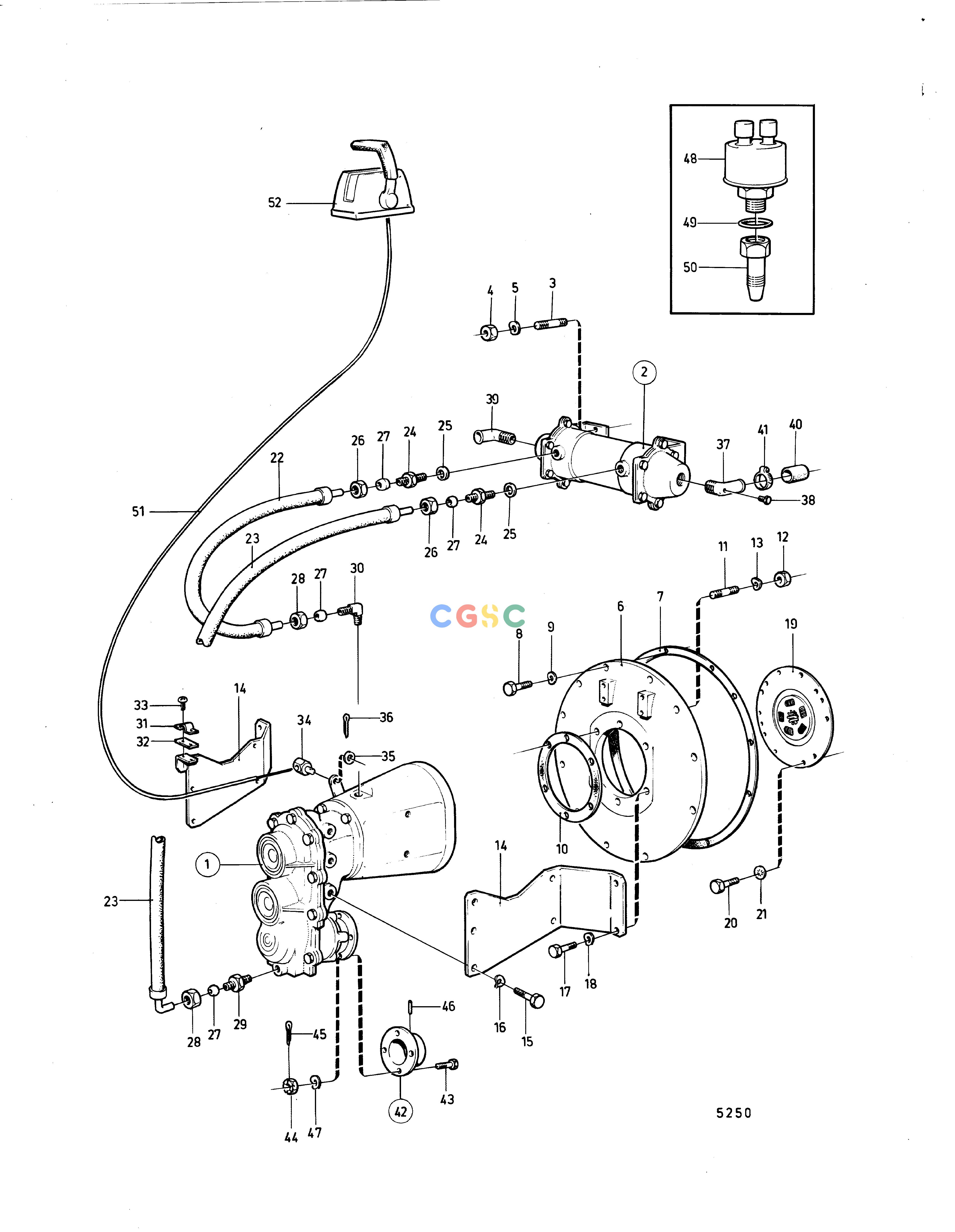

沃尔沃零件查询TAMD60CTransmissionsBorg Warner V-Drive Unit and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
804472
|
[1] |
Oil cooler
|
|
| 3. |
953043
|
[4] |
Stud
|
|
| 4. |
955782
|
[4] |
Hexagon nut
|
|
| 5. |
941907
|
[4] |
Spring washer
|
|
| 6. |
803901
|
[1] |
Connecting flange
|
|
| 7. |
862623
|
[1] |
Gasket
|
|
| 8. |
955535
|
[8] |
Hexagon screw
|
|
| 9. |
942336
|
[8] |
Spring washer
|
|
| 10. |
803921
|
[1] |
Gasket
|
|
| 11. |
953530
|
[6] |
Stud
|
|
| 12. |
940157
|
[6] |
Hexagon nut
|
|
| 13. |
941909
|
[6] |
Spring washer
|
|
| 14. |
842463
|
[1] |
Bracket
|
S.B
|
| 14. |
842464
|
[1] |
Bracket
|
P
|
| 15. |
940116
|
[10] |
Hexagon screw
|
|
| 16. |
941909
|
[10] |
Spring washer
|
|
| 17. |
955536
|
[4] |
Hexagon screw
|
|
| 18. |
942336
|
[4] |
Spring washer
|
|
| 19. |
809459
|
[1] |
Absorber
|
|
| 20. |
20463
|
[8] |
Hexagon screw
|
|
| 21. |
955950
|
[8] |
Toothed washer
|
|
| 22. |
829259
|
[1] |
Hose assembly
|
|
| 23. |
829261
|
[1] |
Hose assembly
|
|
| 24. |
943755
|
[2] |
Fitting
|
|
| 25. |
957184
|
[2] |
Gasket
|
|
| 26. |
941331
|
[2] |
Fitting nut
|
|
| 27. |
956970
|
[4] |
Ferrule
|
|
| 28. |
956984
|
[2] |
Fitting nut
|
|
| 29. |
941750
|
[1] |
Nipple
|
|
| 30. |
941750
|
[2] |
Nipple
|
|
| 31. |
21471054
|
[1] |
Bracket
|
|
| 32. |
819068
|
[1] |
Washer
|
|
| 33. |
950021
|
[2] |
Cross recessed screw
|
|
| 34. |
813674
|
[1] |
Cube
|
|
| 35. |
940191
|
[1] |
Washer
|
|
| 36. |
17276
|
[1] |
Split pin
|
|
| 37. |
942334
|
[1] |
Hose attachment
|
|
| 38. |
192134
|
[1] |
Plug
|
|
| 39. |
836759
|
[1] |
Hose attachment
|
|
| 40. |
13430
|
[1] |
Rubber hose
|
L=60mm
|
| 41. |
994560
|
[2] |
Hose clamp
|
|
| 42. |
829279
|
[1] |
Clutch flange
|
For 35mm shaft
|
| 42. |
829281
|
[1] |
Clutch half
|
For 40mm shaft
|
| 43. |
955692
|
[4] |
Hexagon screw
|
|
| 44. |
955883
|
[4] |
Castle nut
|
|
| 45. |
907834
|
[4] |
Split pin
|
|
| 46. |
907617
|
[1] |
Taper pin
|
|
| 47. |
941909
|
[4] |
Spring washer
|
|
| 48. |
837781
|
[1] |
Oil pressure sensor
|
See group 3
|
| 49. |
957181
|
[1] |
Gasket
|
|
| 50. |
842522
|
[1] |
Nipple
|
|
| 51. |
|
|
|
See group 9
|
| 52. |
|
|
|
See group 9
|
