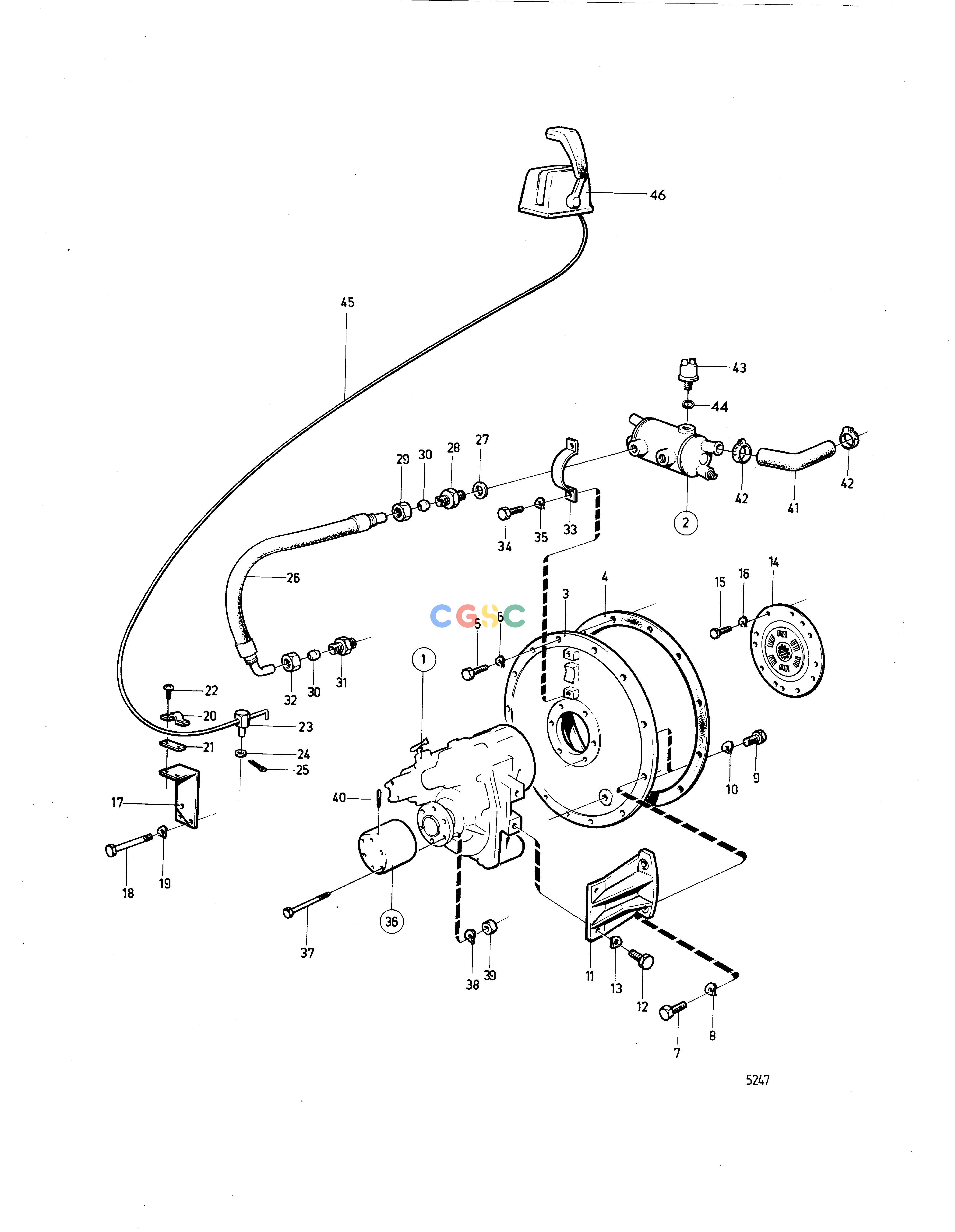

沃尔沃零件查询TAMD60CTransmissionsReverse Gear Twin Disc MG502 and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
981 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
842240
|
[1] |
Oil cooler
|
|
| 3. |
842215
|
[1] |
Extension part
|
|
| 4. |
862623
|
[1] |
Gasket
|
|
| 5. |
955535
|
[8] |
Hexagon screw
|
|
| 6. |
942336
|
[8] |
Spring washer
|
|
| 7. |
940162
|
[4] |
Hexagon screw
|
|
| 8. |
942336
|
[4] |
Spring washer
|
|
| 9. |
940160
|
[8] |
Hexagon screw
|
|
| 10. |
941909
|
[8] |
Spring washer
|
|
| 11. |
842514
|
[1] |
Bracket
|
S.B
|
| 11. |
842216
|
[1] |
Bracket
|
P
|
| 12. |
940162
|
[4] |
Hexagon screw
|
|
| 13. |
940280
|
[4] |
Spring washer
|
|
| 14. |
848602
|
[1] |
Absorber
|
|
| 15. |
956582
|
[8] |
Hex. socket screw
|
|
| 16. |
942336
|
[8] |
Spring washer
|
|
| 17. |
844058
|
[1] |
Bracket
|
|
| 18. |
955532
|
[2] |
Hexagon screw
|
|
| 19. |
941907
|
[2] |
Spring washer
|
|
| 20. |
21471054
|
[1] |
Bracket
|
|
| 21. |
819068
|
[1] |
Washer
|
|
| 22. |
950021
|
[2] |
Cross recessed screw
|
|
| 23. |
813674
|
[1] |
Cube
|
|
| 24. |
940191
|
[1] |
Washer
|
|
| 25. |
17276
|
[1] |
Split pin
|
|
| 26. |
837355
|
[2] |
Hose assembly
|
|
| 27. |
957184
|
[2] |
Gasket
|
|
| 28. |
943755
|
[2] |
Fitting
|
|
| 29. |
941331
|
[2] |
Fitting nut
|
|
| 30. |
956970
|
[4] |
Ferrule
|
|
| 31. |
941750
|
[2] |
Nipple
|
|
| 32. |
956984
|
[2] |
Fitting nut
|
|
| 33. |
846242
|
[1] |
Tensioning band
|
|
| 34. |
955524
|
[1] |
Hexagon screw
|
L=19mm
|
| 34. |
955525
|
[1] |
Hexagon screw
|
L=25mm
|
| 35. |
941907
|
[2] |
Spring washer
|
|
| 36. |
842245
|
[1] |
Clutch flange
|
|
| 37. |
959804
|
[6] |
Hexagon screw
|
|
| 38. |
941909
|
[6] |
Spring washer
|
|
| 39. |
950355
|
[6] |
Lock nut
|
|
| 40. |
907619
|
[1] |
Taper pin
|
|
| 41. |
829053
|
[1] |
Connecting hook
|
|
| 42. |
994560
|
[2] |
Hose clamp
|
|
| 43. |
837781
|
[1] |
Oil pressure sensor
|
See group 3
|
| 44. |
957181
|
[1] |
Gasket
|
|
| 45. |
|
|
|
See group 9
|
| 46. |
|
|
|
See group 9
|
