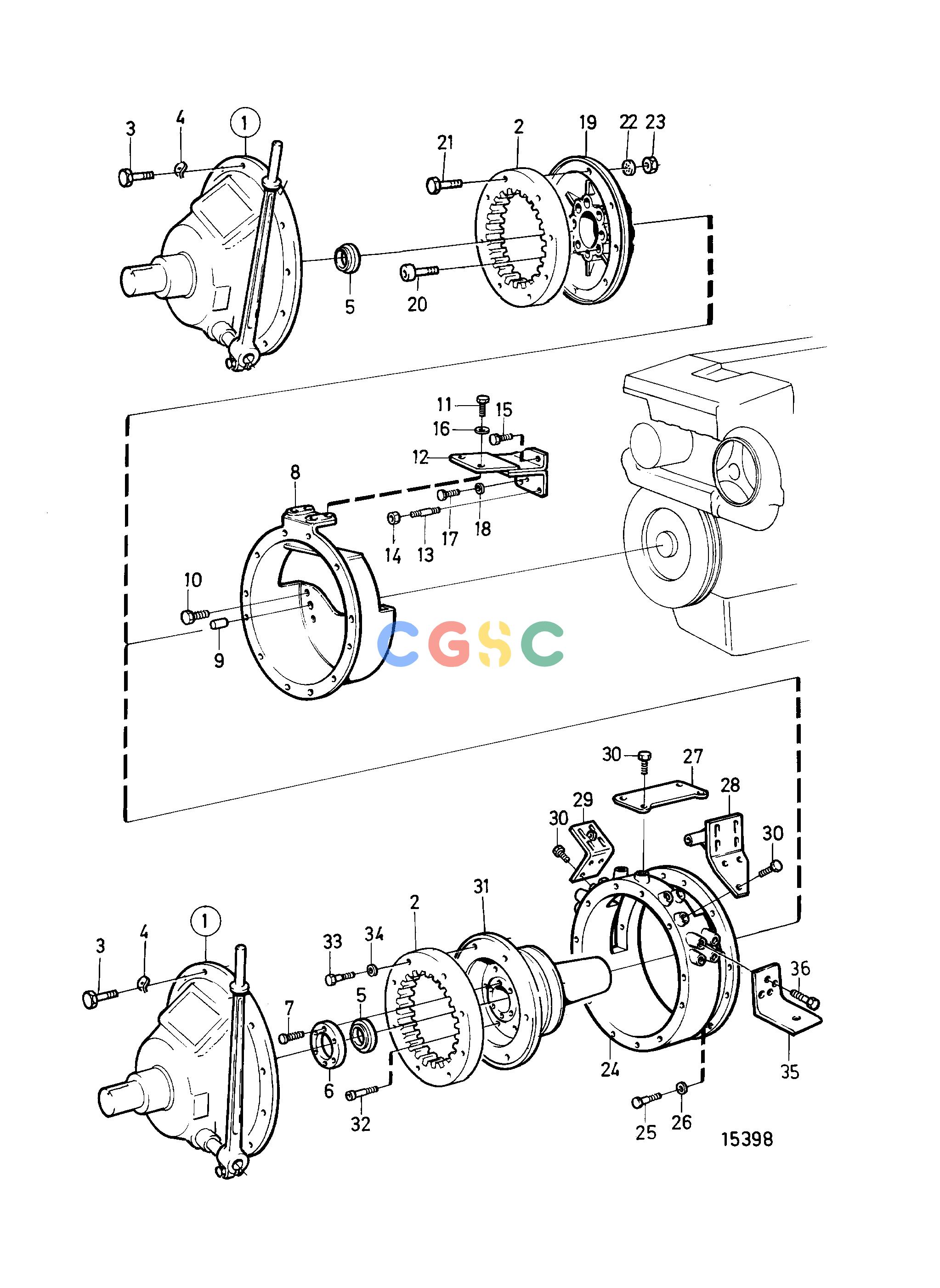

沃尔沃零件查询TAMD61A; TAMD62AClutch, Elastic CouplingClutch Rockford BW 10''EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
504 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
820802
|
[1] |
Power take-off
|
|
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
959238
|
[12] |
Hex. socket screw
|
|
| 4. |
941908
|
[12] |
Spring washer
|
|
| 5. |
183455
|
[1] |
Ball bearing
|
|
| 6. |
849294
|
[1] |
Bearing seat
|
|
| 7. |
946671
|
[4] |
Flange screw
|
|
| 8. |
849359
|
[1] |
Bell housing
|
|
| 9. |
191171
|
[2] |
Pin
|
|
| 10. |
965183
|
[4] |
Flange screw
|
|
| 11. |
946329
|
[2] |
Flange screw
|
|
| 12. |
849368
|
[1] |
Bracket
|
|
| 13. |
924075
|
[2] |
Stud
|
|
| 14. |
971095
|
[2] |
Flange nut
|
|
| 15. |
970960
|
[1] |
Hexagon screw
|
L=100mm
|
| 16. |
941908
|
[2] |
Spring washer
|
|
| 17. |
955302
|
[1] |
Hexagon screw
|
L=60mm
|
| 18. |
941907
|
[1] |
Spring washer
|
|
| 19. |
844693
|
[1] |
Companion flange
|
|
| 20. |
471554
|
[8] |
Flange screw
|
|
| 21. |
955536
|
[8] |
Hexagon screw
|
|
| 22. |
942336
|
[8] |
Spring washer
|
|
| 23. |
955827
|
[8] |
Hexagon nut
|
|
| 24. |
849360
|
[1] |
Cover
|
|
| 25. |
959238
|
[12] |
Hex. socket screw
|
|
| 26. |
941908
|
[12] |
Spring washer
|
|
| 27. |
849369
|
[1] |
Bracket
|
|
| 28. |
849377
|
[1] |
Bracket
|
|
| 29. |
849378
|
[1] |
Bracket
|
|
| 30. |
946329
|
[10] |
Flange screw
|
|
| 31. |
862710
|
[1] |
Companion flange
|
|
| 32. |
471481
|
[8] |
Flange screw
|
|
| 33. |
102008
|
[8] |
Hexagon screw
|
|
| 34. |
942336
|
[8] |
Spring washer
|
|
| 35. |
837464
|
[2] |
Bracket
|
|
| 36. |
965191
|
[4] |
Flange screw
|
|
