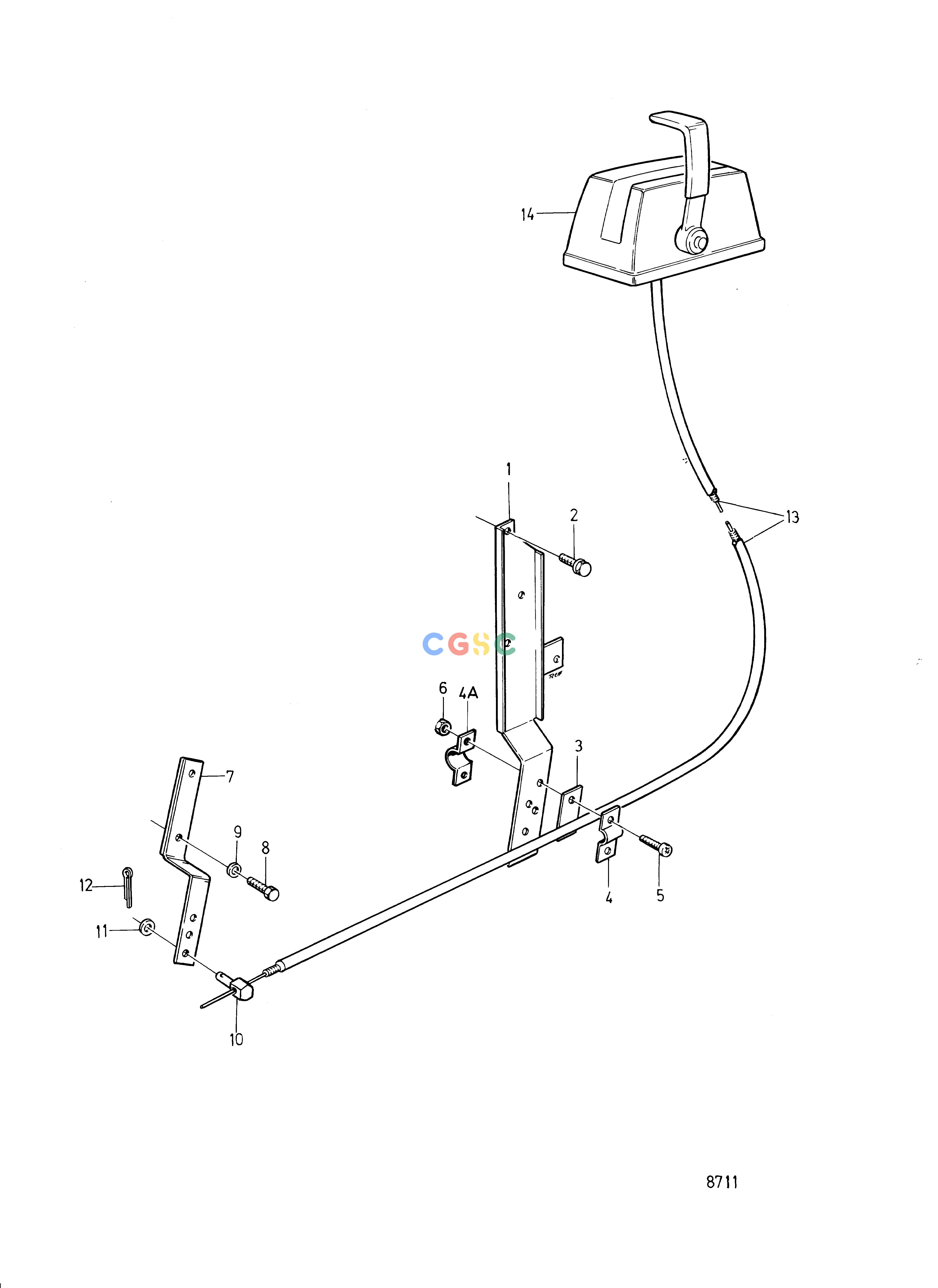

沃尔沃零件查询TAMD61A; TAMD62AControlsEngine Speed ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
847884
|
[1] |
Bracket
|
|
| 2. |
946440
|
[2] |
Flange screw
|
|
| 3. |
819068
|
[1] |
Washer
|
|
| 4. |
21471054
|
[1] |
Bracket
|
|
| 4A. |
6853782
|
[1] |
Cable clamp
|
|
| 5. |
956079
|
[4] |
Cross recessed screw
|
|
| 6. |
963104
|
[4] |
Lock nut
|
|
| 7. |
823695
|
[1] |
Control arm
|
|
| 8. |
955272
|
[1] |
Hexagon screw
|
|
| 9. |
941906
|
[1] |
Spring washer
|
|
| 10. |
853217
|
[1] |
Cube
|
|
| 11. |
940191
|
[1] |
Washer
|
|
| 12. |
17253
|
[1] |
Split pin
|
|
| 13. |
7746650_095
|
|
Control cable
|
|
| 14. |
7746650_091
|
|
Control
|
|
