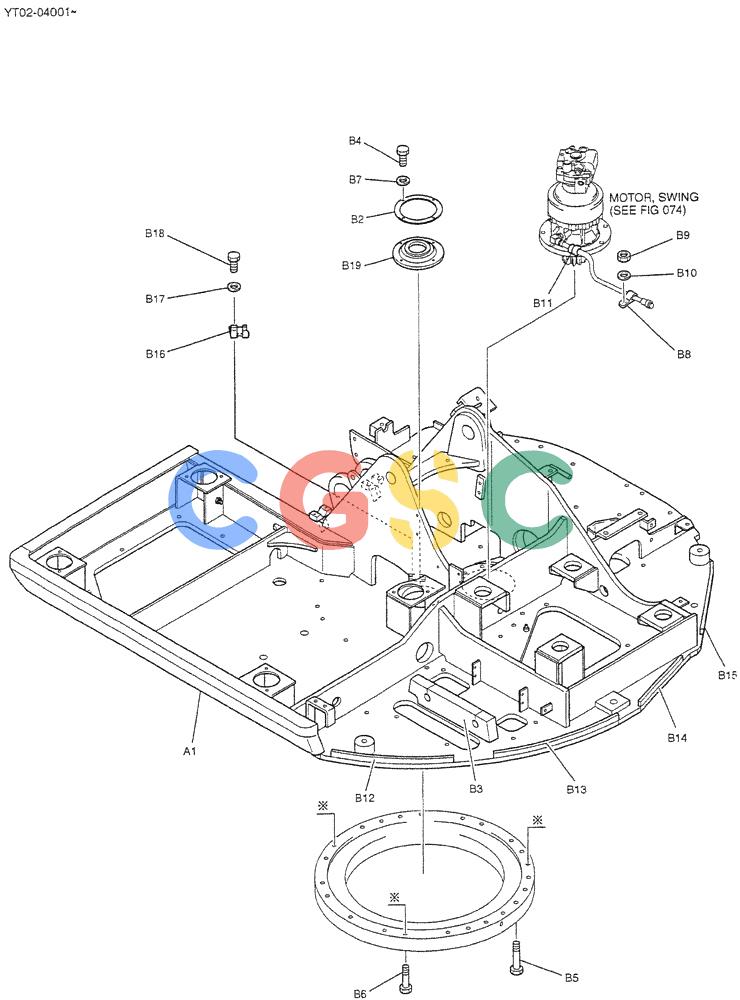

神钢零件查询(DOZER) - ATTACHMENT - SK70SR-1E EXCAVATORS ASN YT02-04001 (1/04-12/04) (01-001) - FRAME ASSEMBLY, UPPER (PTPA DOZER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
283 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YT52F00037P1 | [1] | FRAME, UPP | |
| . . | YT52F00031F2 | [1] | FRAME GROUP, UPP | |
| B2. | YT52F01056P1 | [1] | PLATE | KOB |
| B3. | YT52F01001P1 | [1] | FOAM INSULATION | KOB |
| B4. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| B5. | ZS13C16090 | [20] | CAPSCREW | KOBSCREW M16x2.0x90mm |
| B6. | 2420T3453D2 | [3] | CAPSCREW | KOBSCREW |
| B7. | YT52F01055P1 | [4] | SEAL | KOB |
| B8. | ZC46X16011 | [1] | CLIP | KOBClamp, Single Line -- ID 16.5 x 49mm Long |
| B9. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| B10. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B11. | 2420R766D4 | [1] | GROMMET | KOB |
| B12. | YR52F01080D3 | [1] | RUBBER | KOB Superseded by part number: YY52F01567D5 |
| B13. | YR52F01080DB | [1] | RUBBER | KOB Superseded by part number: YY52F01567D5 |
| B14. | YR52F01080DC | [1] | RUBBER | KOB Superseded by part number: YY52F01567D5 |
| B15. | YJ21C01143D7 | [1] | RUBBER | KOB |
| B16. | YT52F01070P1 | [1] | BRACKET | KOB |
| B17. | ZW16H12000 | [2] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| B18. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| B19. | LE52F01026P1 | [1] | COVER | KOBDUST |
