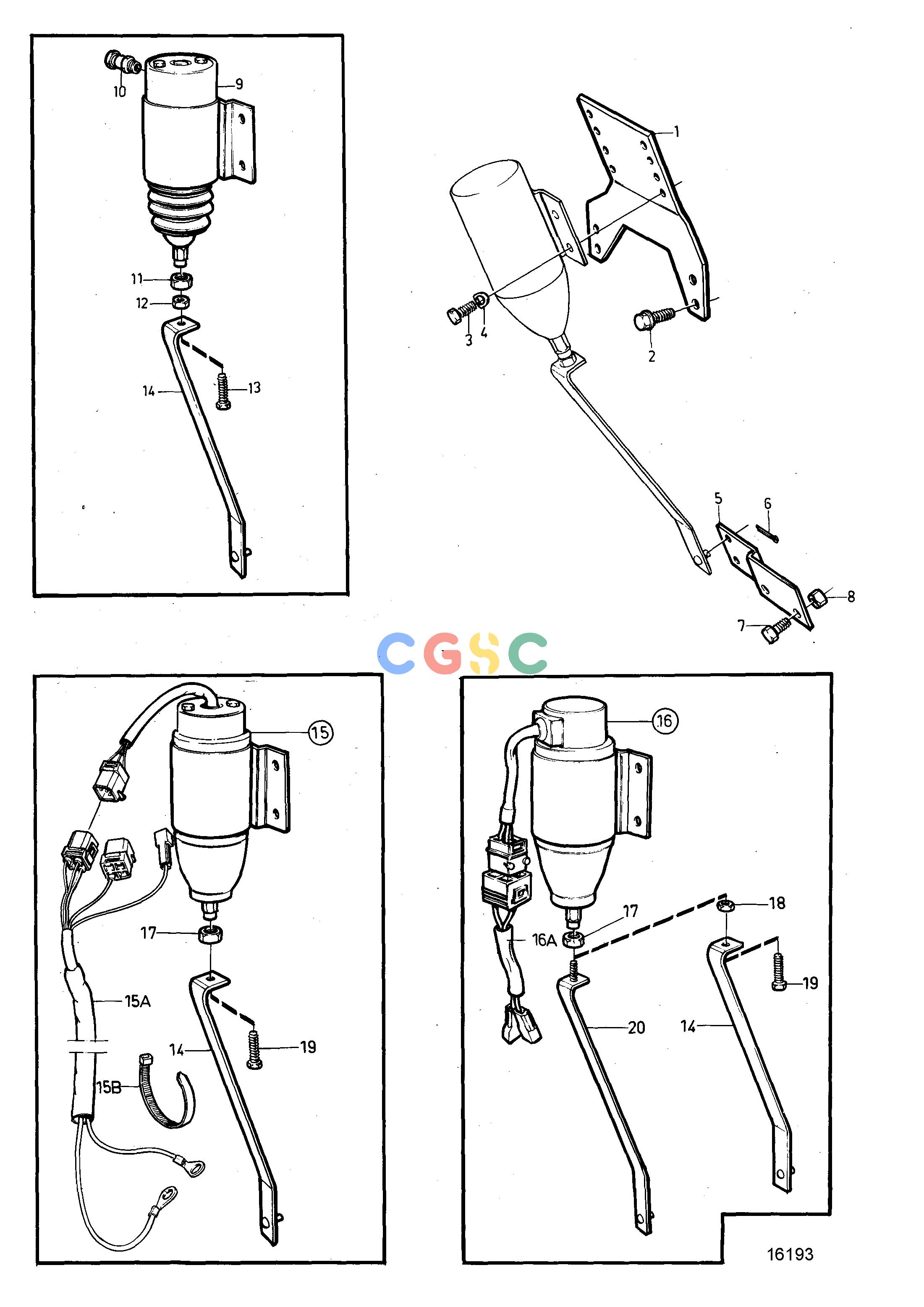

沃尔沃零件查询TAMD61A; TAMD62AControlsStop SolenoidEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
611 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848105
|
[1] |
Bracket
|
|
| 2. |
946440
|
[2] |
Flange screw
|
|
| 3. |
955269
|
[4] |
Hexagon screw
|
|
| 4. |
949607
|
[4] |
Spring washer
|
|
| 5. |
848811
|
[1] |
Intermediate lever
|
|
| 6. |
664822
|
[1] |
Split pin
|
|
| 7. |
945414
|
[2] |
Flange screw
|
|
| 8. |
946035
|
[2] |
Lock nut
|
|
| 9. |
872826
|
[1] |
Stop solenoid
|
12V, later prod
|
| 9. |
872825
|
[1] |
Stop solenoid
|
24V, later prod
|
| 10. |
881191
|
[1] |
Grommet
|
|
| 11. |
955857
|
[1] |
Hexagon nut
|
5/16
|
| 12. |
921781
|
[1] |
Hexagon nut
|
5/16
|
| 13. |
955658
|
[1] |
Hexagon screw
|
5/16
|
| 14. |
848782
|
[1] |
Link arm
|
|
| 15. |
876788
|
[1] |
Control solenoid kit
|
12V, late type
|
| 15. |
876789
|
[1] |
Control solenoid kit
|
24V, later prod
|
| 15A. |
873638
|
[1] |
Cable kit
|
Later prod
|
| 15B. |
948211
|
[1] |
Cable tie
|
|
| 16. |
876592
|
[1] |
Control solenoid kit
|
12V, earlier prod
|
| 16. |
876593
|
[1] |
Control solenoid kit
|
24V, earlier prod
|
| 16A. |
|
|
|
Early type
|
| 17. |
955782
|
[1] |
Hexagon nut
|
M8 (947941)
|
| 18. |
955782
|
[1] |
Hexagon nut
|
M8
|
| 19. |
955297
|
[1] |
Hexagon screw
|
M8
|
| 20. |
|
|
|
Replaced by 1pc linkarm 848782, 1pc screw 955297 and 1pc nut 955782.
|
