| . . | YT03H00024F1 | [1] | HYD LINES, UPP | |
| A1. | 2444Z3713 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| A1-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| A2. | ZH22X08000 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| A2-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| A3. | ZH32X06008 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 1/2", O-Ring | KOB90° -- 3/8"PFx1/2"PFx40mm Long (Same as ZD12P02400) |
| A3-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| A4. | LE03H01213P1 | [1] | TEE | KOB |
| A4-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| A5. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| A6. | ZX35M06050 | [1] | HOSE | KOB500mm Long (19-11/16 in) |
| A7. | ZX25M06058 | [1] | HOSE | KOB |
| A8. | ZX45M08150 | [1] | HOSE | KOB1500mm Long (59-1/16 in) |
| A9. | YN20M01046D2 | [1] | PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 1200.00mm | KOBProtective Plastic |
| A10. | HH55Q04004G1 | [1] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB1/4" PF (Incls. O-Ring ZD12P01100) |
| A11. | ZX35M04030 | [1] | HOSE | KOB300mm Long (11-13/16 in) |
| A12. | 2444Z2525 | [1] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| A12-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| A13. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| A14. | ZH32X08000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) |
| A15. | ZH42X04000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |

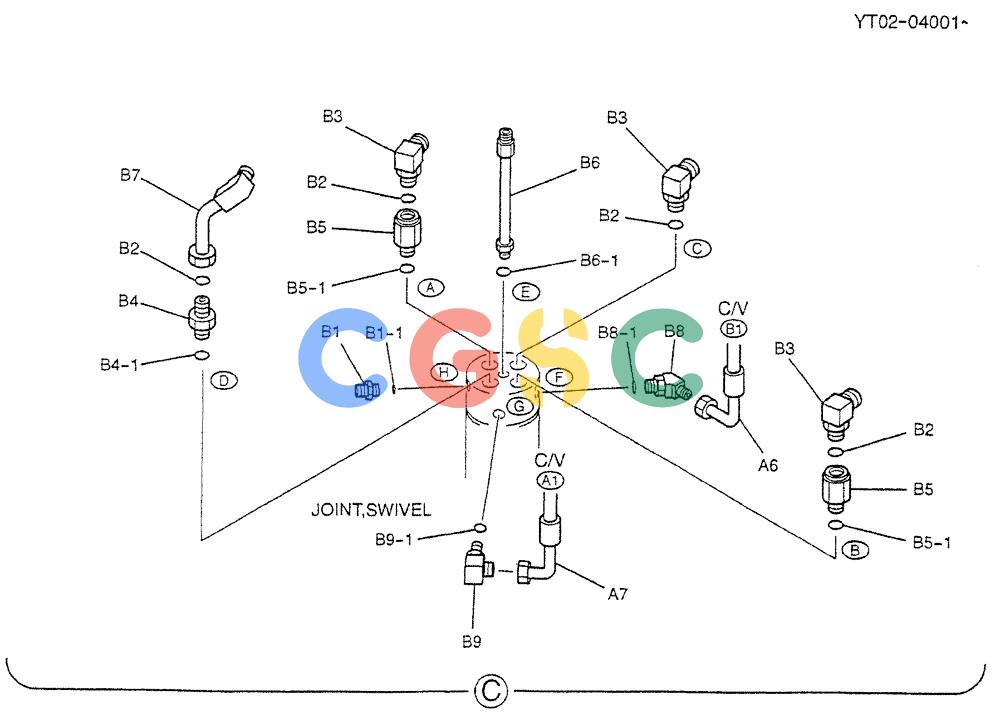

| . . | YT19H00013F2 | [1] | | |
| B1. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| B1-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| B2. | ZD12P01800 | [4] | O-RING | KOBID 17.8mm x OD 20.2mm |
| B3. | ZA33F18008 | [3] | ELBOW | KOB |
| B4. | ZA23F18008 | [1] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| B4-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| B5. | YR03H01121P1 | [2] | CONNECTION | KOB(Incls. O-Ring ZD12P01800) |
| B5-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| B6. | YR19H01004P1 | [1] | CONNECTION | KOB |
| B6-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| B7. | YT19H01006P1 | [1] | TUBE | KOB |
| B8. | ZH42X06000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB45° -- (Incls. O-Ring 237-6006) |
| B8-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| B9. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| B9-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
