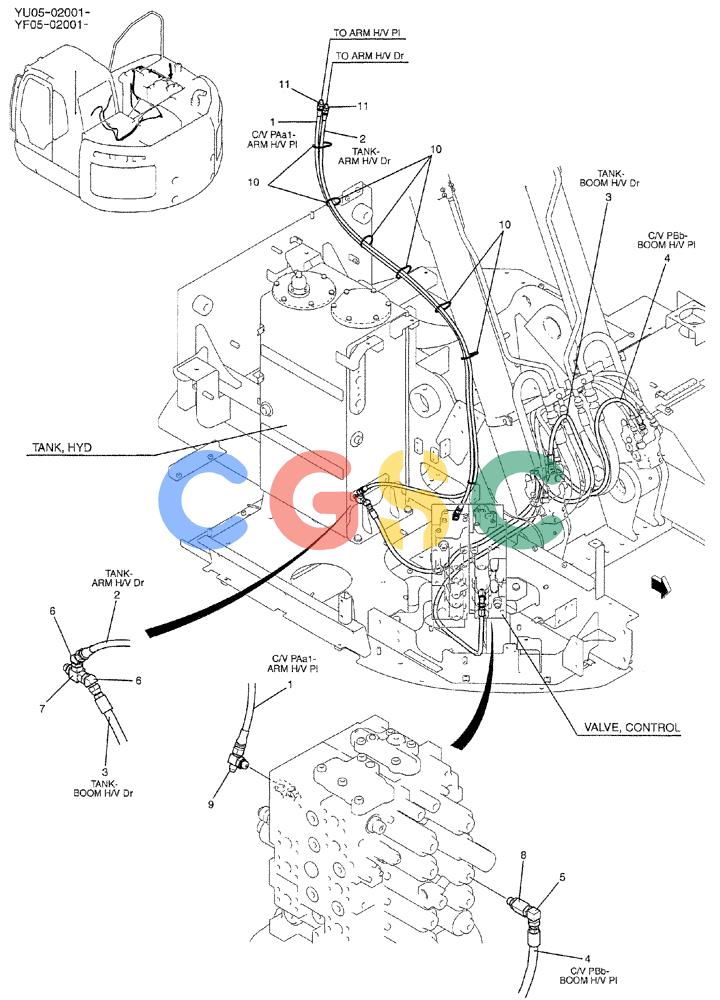

纽荷兰零件查询(E235BSRLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-035) - CONTROL LINES, VALVE (BOOM & ARM SAFETY), P/N YF64H00128F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
442 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF64H00128F1 | [1] | CONTROL LINES, VALVE | |
| . . | YF64H00061F1 | [1] | CONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00062F1 | [1] | CONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00101F1 | [1] | CONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00072F1 | [1] | CONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00059F1 | [1] | CONTROL LINES, VALVE | |
| 1. | 2420R537D220 | [1] | HOSE,9.60mm ID x 2200mm L | KOB Superseded by part number: 77254115, HX21E06220DX |
| 2. | 2420R537D260 | [1] | HOSE,9.60mm ID x 2600mm L | KOB |
| 3. | ZX23M06250 | [1] | HOSE | KOB |
| 4. | ZX23M06290 | [1] | HOSE,9.53mm ID x 2900mm L | SM |
| 5. | ZH32X06000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 6. | ZH42X06000 | [2] | 45 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOB |
| 7. | HH55Q06006G1 | [1] | TEE | KOB |
| 8. | 2444T3402 | [1] | HYD CONNECTOR | KOB Superseded by part number: HH55V06006G3 |
| 9. | ZH52X06000 | [1] | TEE,30° Fl, Male, PF 3/8" x 3/8" x 3/8", O-Ring | KOB |
| 10. | PY01P01043D6 | [7] | CABLE TIE,4.80mm W x 383mm L | KOB |
| 11. | ZH22F06000 | [2] | CONNECTION | KOB |
