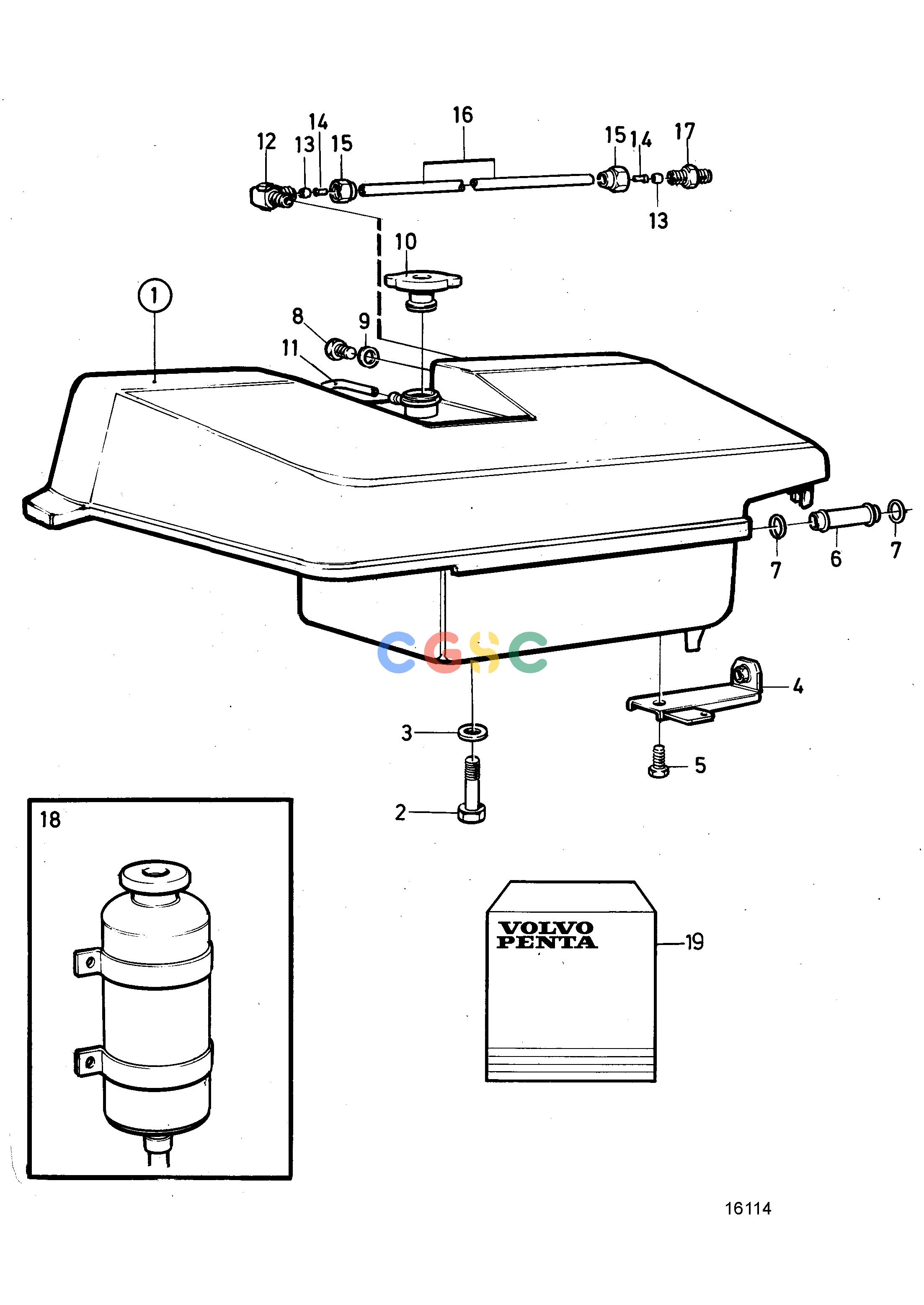

沃尔沃零件查询TAMD61A; TAMD62ACooling SystemExpansion TankEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848809
|
[1] |
Expansion tank
|
Repl by 864289
|
| 1. |
|
|
|
|
| 1. |
864289
|
[1] |
Expansion tank
|
Obtained only in green paint as a spare part.
|
| 1. |
3825381
|
[1] |
Expansion tank
|
Black
|
| 2. |
946173
|
[4] |
Flange screw
|
|
| 3. |
941907
|
[4] |
Spring washer
|
|
| 4. |
864414
|
[1] |
Bracket
|
For electric box 864500., Early type
|
| 5. |
967949
|
[2] |
Flange screw
|
For electric box 864500., Early type
|
| 6. |
848781
|
[1] |
Pressure pipe
|
|
| 7. |
471626
|
[2] |
Rubber moulding
|
|
| 8. |
966142
|
[1] |
Plug
|
|
| 9. |
957175
|
[1] |
Gasket
|
|
| 10. |
845879
|
[1] |
Pressure cap
|
|
| 11. |
192618
|
[1] |
Hose
|
L=800mm
|
| 12. |
479958
|
[1] |
Elbow nipple
|
(329638)
|
| 13. |
954364
|
[2] |
Sleeve
|
|
| 14. |
944717
|
[2] |
Support sleeve
|
|
| 15. |
954356
|
[2] |
Fitting nut
|
|
| 16. |
945460
|
[1] |
Tube
|
Expansion tank-thermostat housing., L=125mm
|
| 17. |
954378
|
[1] |
Nipple
|
|
| 18. |
|
|
|
See group 90
|
| 19. |
876679
|
[1] |
Conversion kit
|
|
