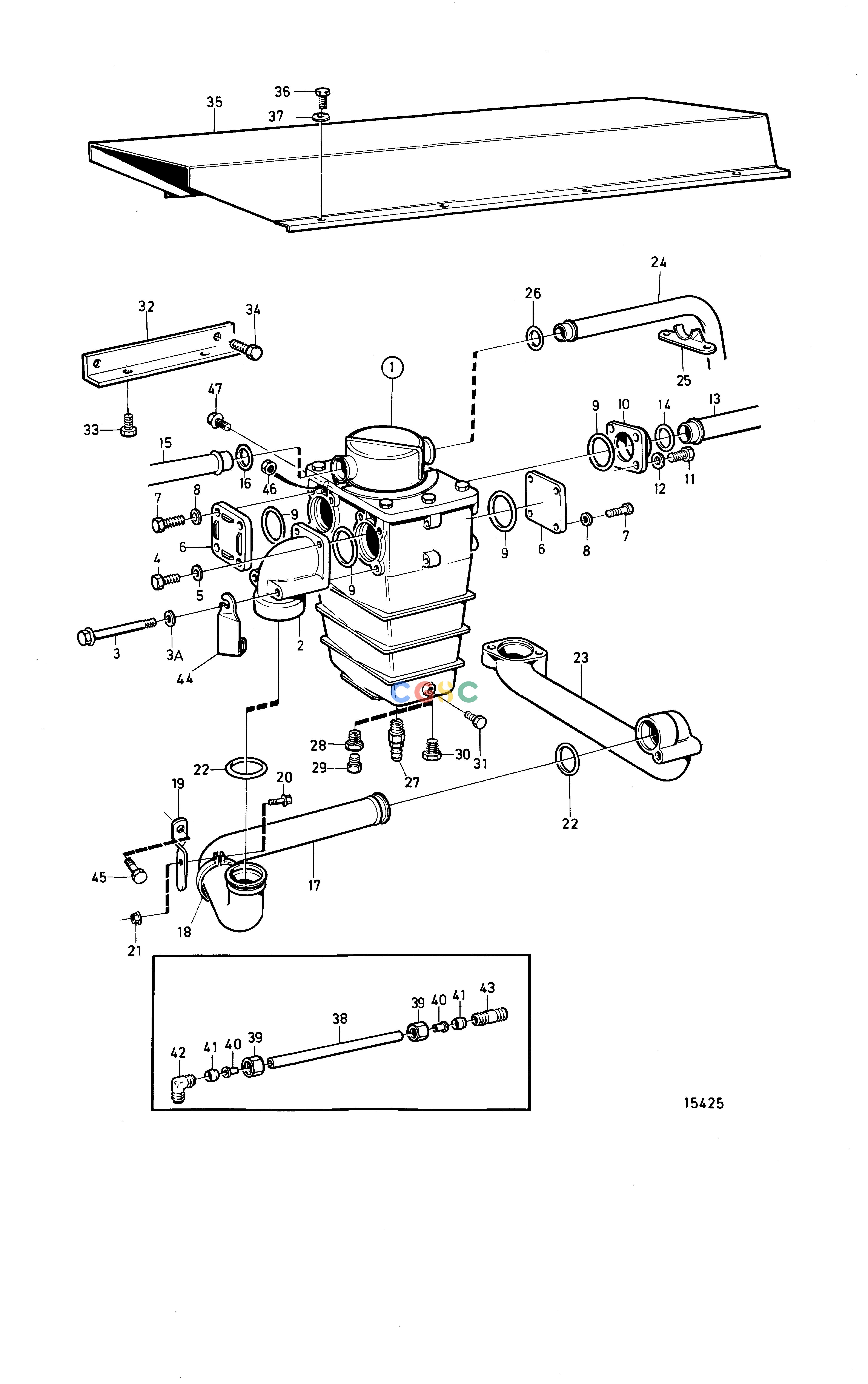

沃尔沃零件查询TAMD61A; TAMD62ACooling SystemHeat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
306 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
847580
|
[1] |
Heat exchanger
|
Repl by 864916
|
| 1. |
|
|
|
|
| 1. |
864916
|
[1] |
Heat exchanger, classifiable
|
As a spare part a classified heat exchanger is obtained.
|
| 2. |
471709
|
[1] |
Connecting pipe
|
|
| 3. |
965183
|
[2] |
Flange screw
|
|
| 3A. |
11978
|
[2] |
Washer
|
|
| 4. |
946671
|
[2] |
Flange screw
|
|
| 5. |
941907
|
[2] |
Spring washer
|
|
| 6. |
847619
|
[2] |
Cap
|
|
| 7. |
955295
|
[8] |
Hexagon screw
|
|
| 8. |
941907
|
[8] |
Spring washer
|
|
| 9. |
925094
|
[4] |
O-ring
|
|
| 10. |
847670
|
[1] |
Flange
|
|
| 11. |
955297
|
[4] |
Hexagon screw
|
|
| 12. |
941907
|
[4] |
Spring washer
|
|
| 13. |
848476
|
[1] |
Coolant pipe
|
Thermostat housing-heat exchanger.
|
| 14. |
466740
|
[1] |
O-ring
|
|
| 15. |
864970
|
[1] |
Coolant pipe
|
Heat exchanger-after cooler.
|
| 16. |
466739
|
[1] |
O-ring
|
|
| 17. |
848480
|
[1] |
Coolant pipe
|
Replaced by 1pc cooling water pipe 865960, 1pc bracket 865864, 1pc hose clamp 945734, 1pc screw 9465
|
| 17. |
865960
|
[1] |
Coolant pipe
|
Later prod
|
| 18. |
945734
|
[1] |
Clamp
|
|
| 19. |
865864
|
[1] |
Bracket
|
|
| 20. |
946544
|
[1] |
Flange screw
|
|
| 21. |
945407
|
[1] |
Flange nut
|
|
| 22. |
864723
|
[2] |
Sealing ring
|
|
| 23. |
7746650_073
|
|
Coolant pipe
|
|
| 24. |
864974
|
[1] |
Coolant pipe
|
Sea water pump-heat exchanger.
|
| 25. |
864918
|
[2] |
Retainer
|
|
| 26. |
466739
|
[1] |
O-ring
|
|
| 27. |
|
|
|
Replaced by plug 3825335.
|
| 28. |
332262
|
[1] |
Reduction nipple
|
Replaced by plug 3825335.
|
| 29. |
861551
|
[1] |
Plug
|
Replaced by plug 3825335., (192134)
|
| 30. |
3825335
|
[1] |
Plug
|
(978904)
|
| 31. |
479979
|
[1] |
Plug
|
(191026)
|
| 32. |
848101
|
[1] |
Bracket
|
|
| 33. |
946173
|
[2] |
Flange screw
|
|
| 34. |
955294
|
[4] |
Hexagon screw
|
|
| 35. |
865558
|
[1] |
Cover
|
|
| 36. |
967949
|
[4] |
Flange screw
|
|
| 37. |
949607
|
[4] |
Spring washer
|
|
| 38. |
945460
|
[1] |
Tube
|
L=250mm
|
| 39. |
954356
|
[2] |
Fitting nut
|
|
| 40. |
944717
|
[2] |
Support sleeve
|
|
| 41. |
954364
|
[2] |
Sleeve
|
|
| 42. |
479958
|
[1] |
Elbow nipple
|
(329638)
|
| 43. |
326870
|
[1] |
Nipple
|
|
| 44. |
849449
|
[1] |
Bracket
|
|
| 45. |
946440
|
[1] |
Flange screw
|
|
| 46. |
946036
|
[2] |
Lock nut
|
|
| 47. |
945444
|
[2] |
Flange screw
|
|
