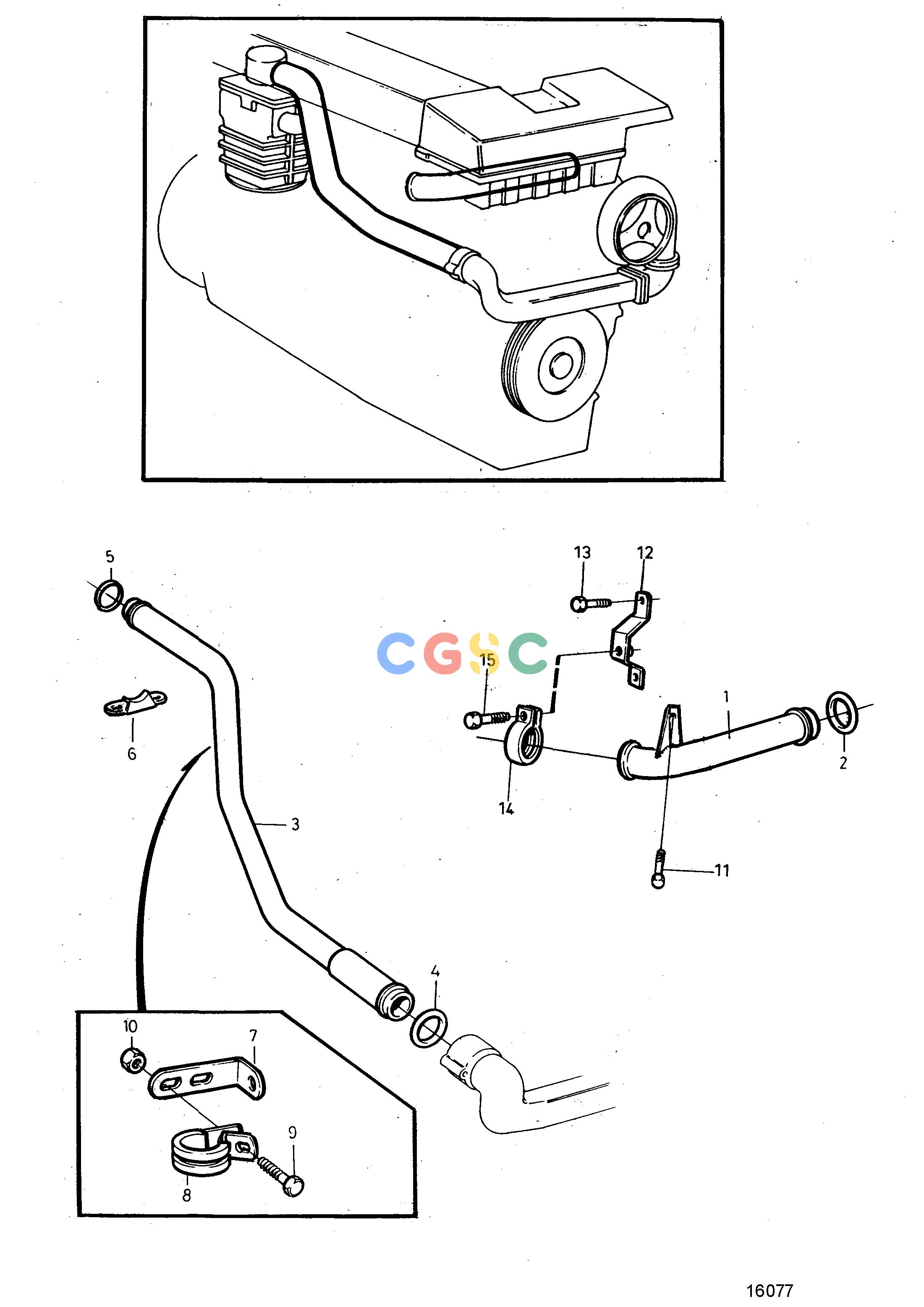

沃尔沃零件查询TAMD61A; TAMD62ACooling SystemKeel Cooling, One CircuitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864088
|
[1] |
Coolant pipe
|
(862035)
|
| 2. |
466740
|
[1] |
O-ring
|
|
| 3. |
849923
|
[1] |
Coolant pipe
|
|
| 4. |
864723
|
[1] |
Sealing ring
|
|
| 5. |
466739
|
[1] |
O-ring
|
|
| 6. |
864918
|
[1] |
Retainer
|
|
| 7. |
965537
|
[1] |
Bracket
|
(849436)
|
| 8. |
967645
|
[1] |
Clamp
|
|
| 9. |
946544
|
[1] |
Flange screw
|
|
| 10. |
945407
|
[1] |
Flange nut
|
|
| 11. |
945444
|
[1] |
Flange screw
|
Early type
|
| 12. |
862043
|
[1] |
Bracket
|
Early type
|
| 13. |
946440
|
[2] |
Flange screw
|
Early type
|
| 14. |
945734
|
[1] |
Clamp
|
Early type
|
| 15. |
946544
|
[1] |
Flange screw
|
|
