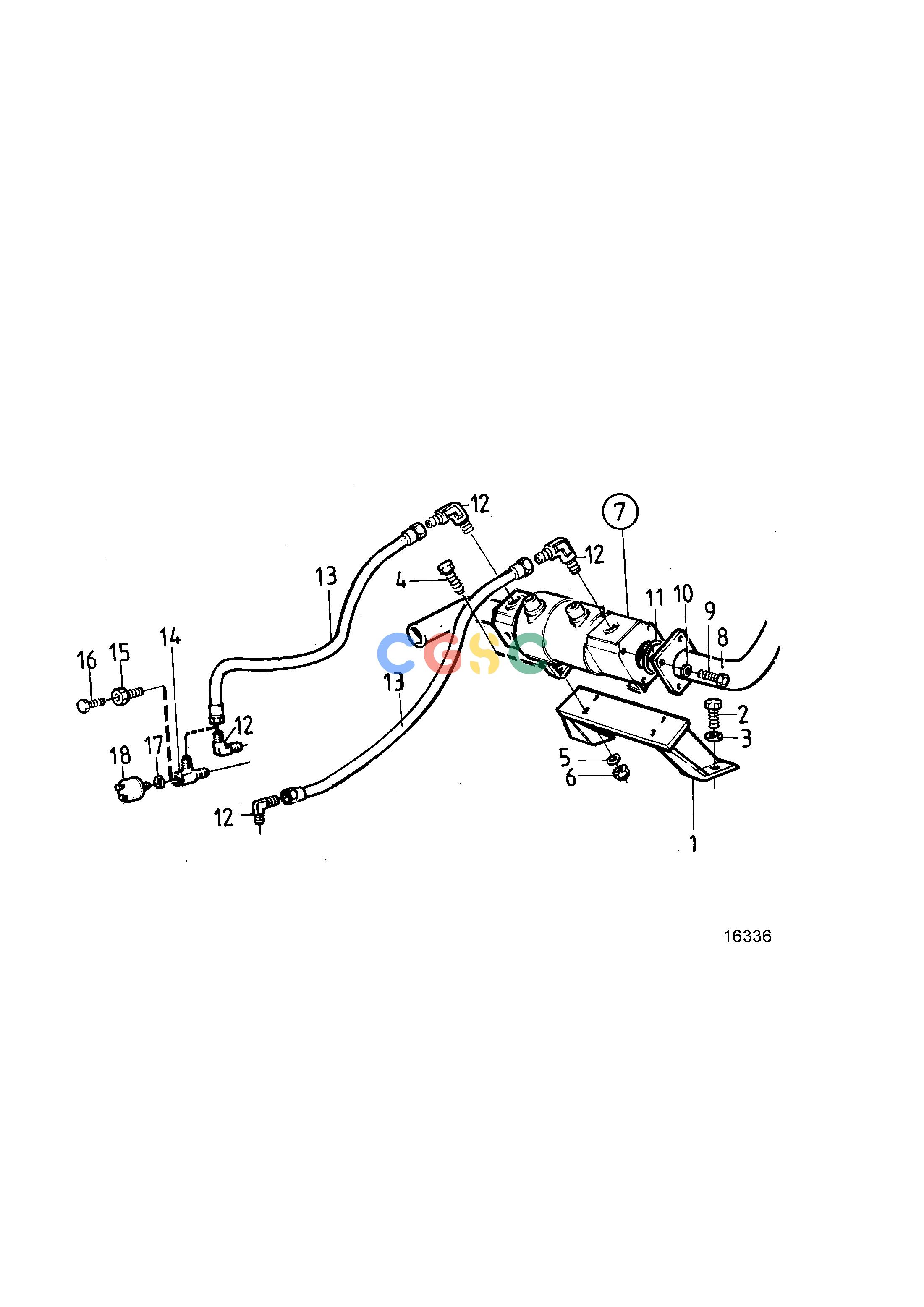

沃尔沃零件查询TAMD61A; TAMD62ACooling SystemOil Cooler for MG 509EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
722 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848098
|
[1] |
Bracket
|
|
| 2. |
970971
|
[2] |
Hexagon screw
|
|
| 3. |
940280
|
[2] |
Spring washer
|
|
| 4. |
955295
|
[4] |
Hexagon screw
|
|
| 5. |
941907
|
[4] |
Spring washer
|
|
| 6. |
955782
|
[4] |
Hexagon nut
|
|
| 7. |
|
|
|
|
| 8. |
7746650_077
|
|
Coolant pipe
|
|
| 9. |
970947
|
[1] |
Hexagon screw
|
|
| 10. |
941908
|
[4] |
Spring washer
|
|
| 11. |
864491
|
[1] |
Gasket
|
|
| 12. |
837063
|
[4] |
Elbow union
|
|
| 13. |
848351
|
[2] |
Hose
|
L=770mm
|
| 14. |
842717
|
[1] |
Elbow union
|
|
| 15. |
16381
|
[1] |
Plug
|
|
| 16. |
180759
|
[1] |
Plug
|
|
| 17. |
947624
|
[1] |
Gasket
|
|
| 18. |
866840
|
[1] |
Pressure sensor
|
0-30bar (837781)
|
| 18. |
|
|
|
See group 30
|
