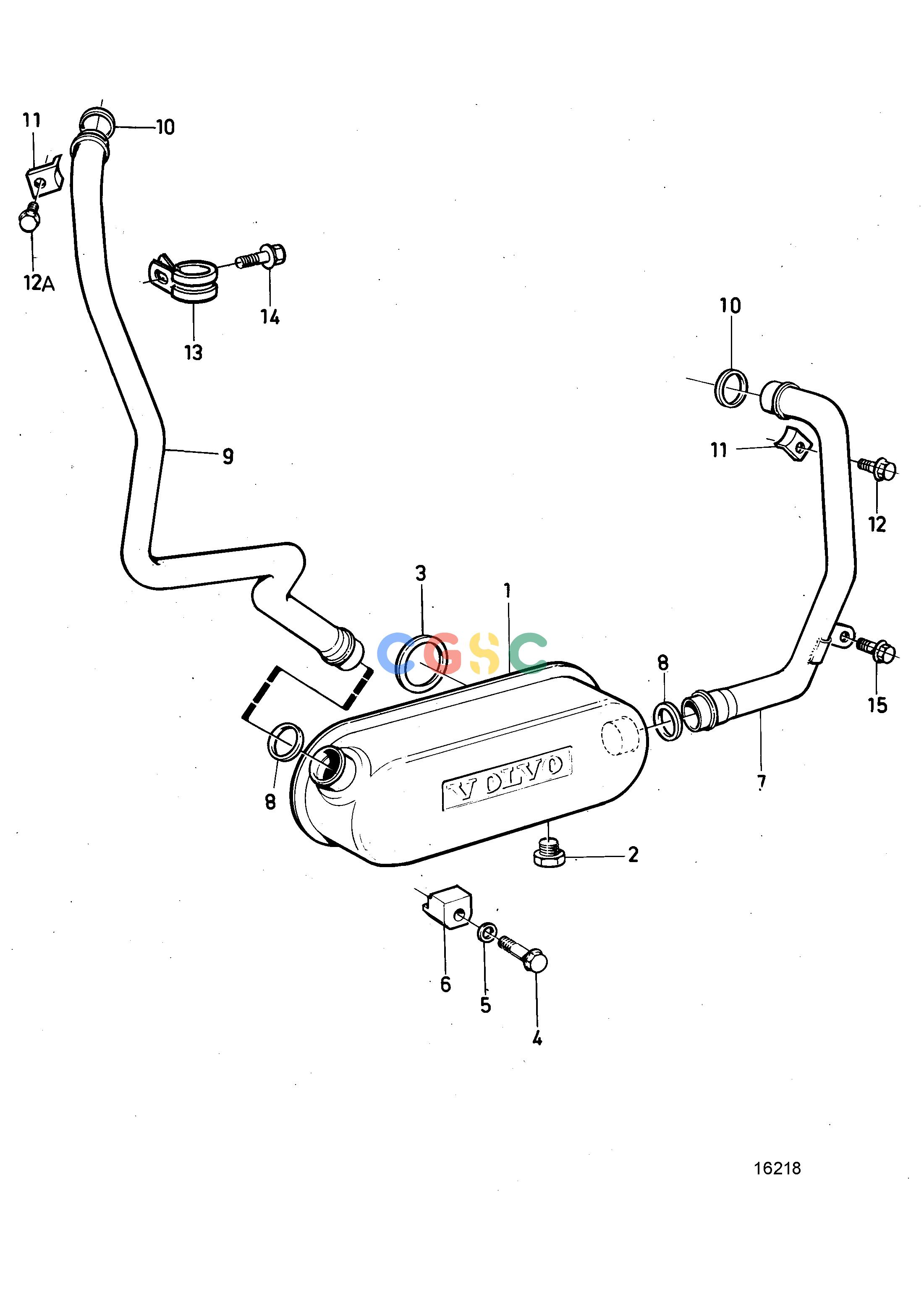

沃尔沃零件查询TAMD61A; TAMD62ACooling SystemOil Cooler, EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
569 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1661254
|
[1] |
Oil cooler, standard
|
Repl by 864915
|
| 1. |
864915
|
[1] |
Oil cooler, classifiable
|
For standard and classified engine.
|
| 2. |
180759
|
[1] |
Plug
|
|
| 3. |
471467
|
[2] |
Sealing ring
|
|
| 4. |
965186
|
[4] |
Flange screw
|
M10x50mm
|
| 5. |
941908
|
[4] |
Spring washer
|
|
| 6. |
471804
|
[4] |
Retainer
|
|
| 7. |
849960
|
[1] |
Coolant pipe
|
Cylinder block-oil cooler.
|
| 8. |
471708
|
[2] |
Rubber moulding
|
|
| 9. |
849672
|
[1] |
Coolant pipe
|
Thermostat housing-oil cooler.
|
| 10. |
471637
|
[2] |
Sealing ring
|
|
| 11. |
421654
|
[2] |
Clamp
|
|
| 12. |
946440
|
[1] |
Flange screw
|
L=16mm
|
| 12A. |
949846
|
[1] |
Flange screw
|
Tapping screw.
|
| 13. |
968508
|
[1] |
Clamp
|
|
| 14. |
946440
|
[1] |
Flange screw
|
M8x16mm
|
| 15. |
946173
|
[1] |
Flange screw
|
M8x20mm
|
