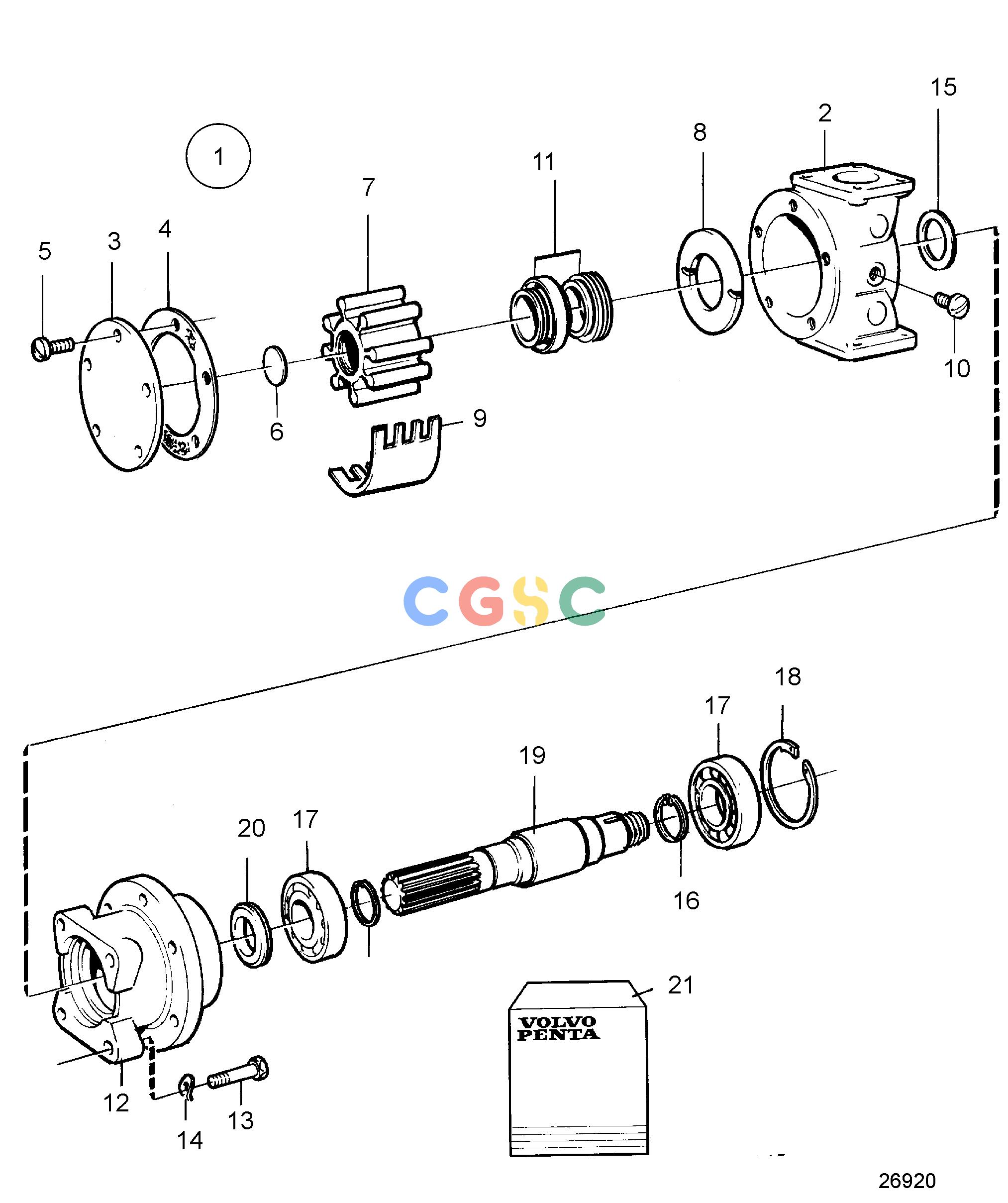

沃尔沃零件查询TAMD61A; TAMD62ACooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
596 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846354
|
[1] |
Sea water pump
|
|
| 2. |
|
|
|
|
| 3. |
847228
|
[1] |
Cover
|
|
| 4. |
825728
|
[1] |
Gasket
|
Included in impeller kit.
|
| 5. |
847229
|
[5] |
Screw
|
Included in overhaul kit.
|
| 6. |
812966
|
[1] |
Splined gasket
|
Included in impeller kit.
|
| 7. |
|
|
|
Included in impeller kit.
|
| 8. |
812959
|
[1] |
Wear washer
|
Included in overhaul kit.
|
| 9. |
827013
|
[1] |
Cam
|
|
| 10. |
825730
|
[1] |
Screw
|
|
| 11. |
812968
|
[1] |
Sealing ring
|
|
| 12. |
845969
|
[1] |
Bearing housing
|
|
| 13. |
940135
|
[4] |
Hexagon screw
|
|
| 14. |
941907
|
[4] |
Spring washer
|
|
| 15. |
812964
|
[1] |
Deflector ring
|
Included in overhaul kit.
|
| 16. |
847230
|
[2] |
Lock ring
|
Included in overhaul kit.
|
| 17. |
11013
|
[2] |
Ball bearing
|
Included in overhaul kit.
|
| 18. |
825735
|
[1] |
Lock ring
|
Included in overhaul kit.
|
| 19. |
825978
|
[1] |
Pump shaft
|
|
| 20. |
845795
|
[1] |
Sealing ring
|
Included in overhaul kit.
|
| 21. |
875736
|
[1] |
Impeller kit
|
See group 99
|
| 21. |
875737
|
[1] |
Overhaul kit
|
See group 99
|
