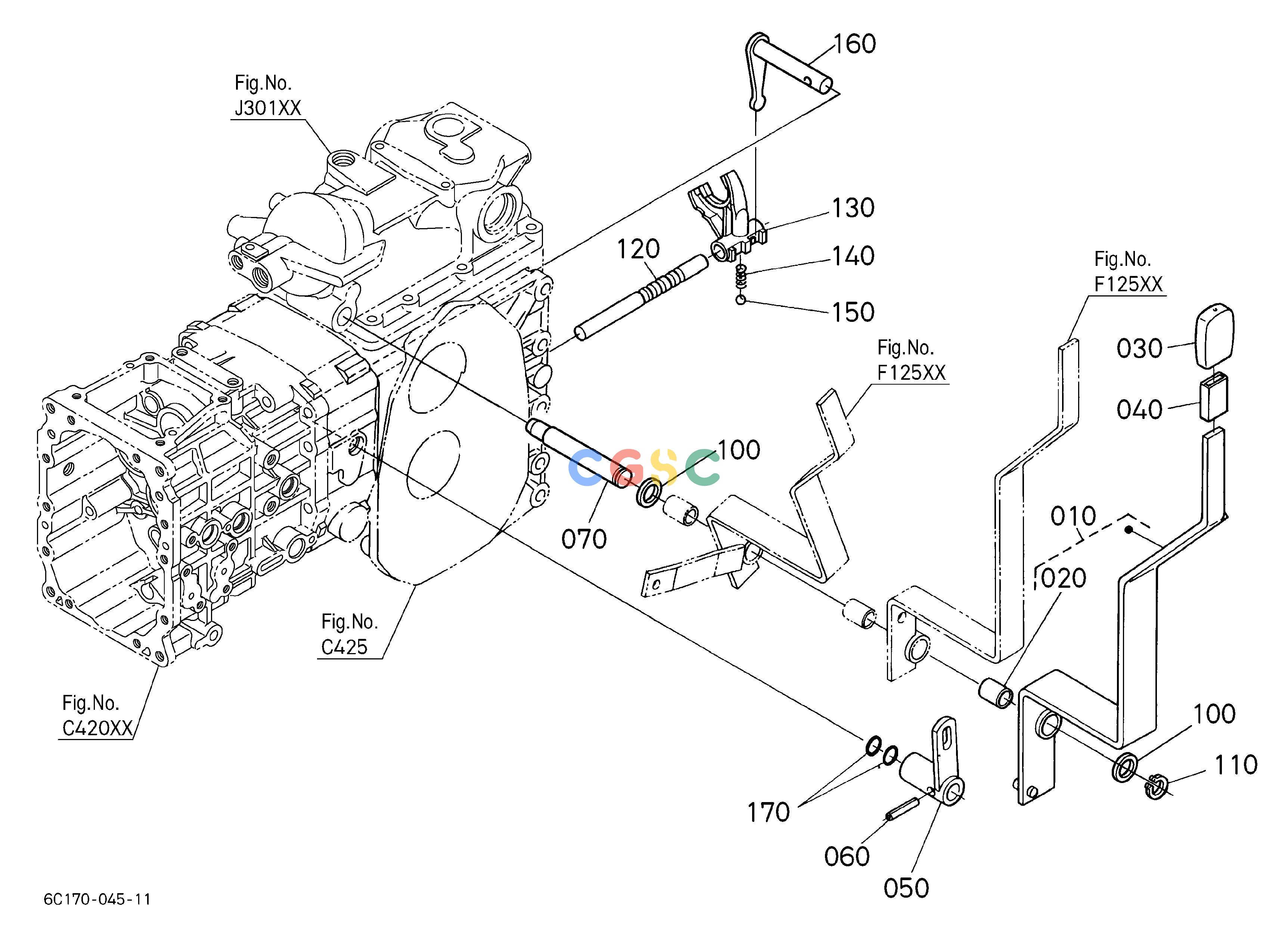

久保田零件查询F11002 RANGE GEAR SHIFT LEVER ## S.No.>=50101 SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
883 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07042600
|
[1] |
LEVER RANGE SHIFT
|
3.0580(lbs); 1.390
|
| 010. |
6C07042603
|
[1] |
LEVER RANGE SHIFT
|
2.9920(lbs); 1.360
|
| 020. |
0851101825
|
[1] |
BUSH
|
0.0220(lbs); 0.010
|
| 030. |
TA04024490
|
[1] |
GRIP LEVER
|
0.0726(lbs); 0.033
|
| 040. |
6C04042760
|
[1] |
CUSHION
|
0.0066(lbs); 0.003
|
| 050. |
6C07042620
|
[1] |
LEVER SHIFT ARM
|
0.4840(lbs); 0.220
|
| 060. |
0541100832
|
[1] |
PIN SPRING
|
0.0770(lbs); 0.035
|
| 070. |
6C14042670
|
[1] |
SHAFT FULCRUM
|
0.4400(lbs); 0.200
|
| 100. |
0401150180
|
[2] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 110. |
0461200180
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 120. |
6C07018410
|
[1] |
ROD FORK
|
0.4070(lbs); 0.185
|
| 130. |
6C07018420
|
[1] |
FORK RANGE SHIFT
|
0.1760(lbs); 0.080
|
| 140. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 150. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 160. |
6C17018510
|
[1] |
ARM RANGE SHIFT
|
0.4180(lbs); 0.190
|
| 160. |
6C17018512
|
[1] |
ARM RANGE SHIFT
|
0.4180(lbs); 0.190
|
| 170. |
0481100160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 170. |
0481600160
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
