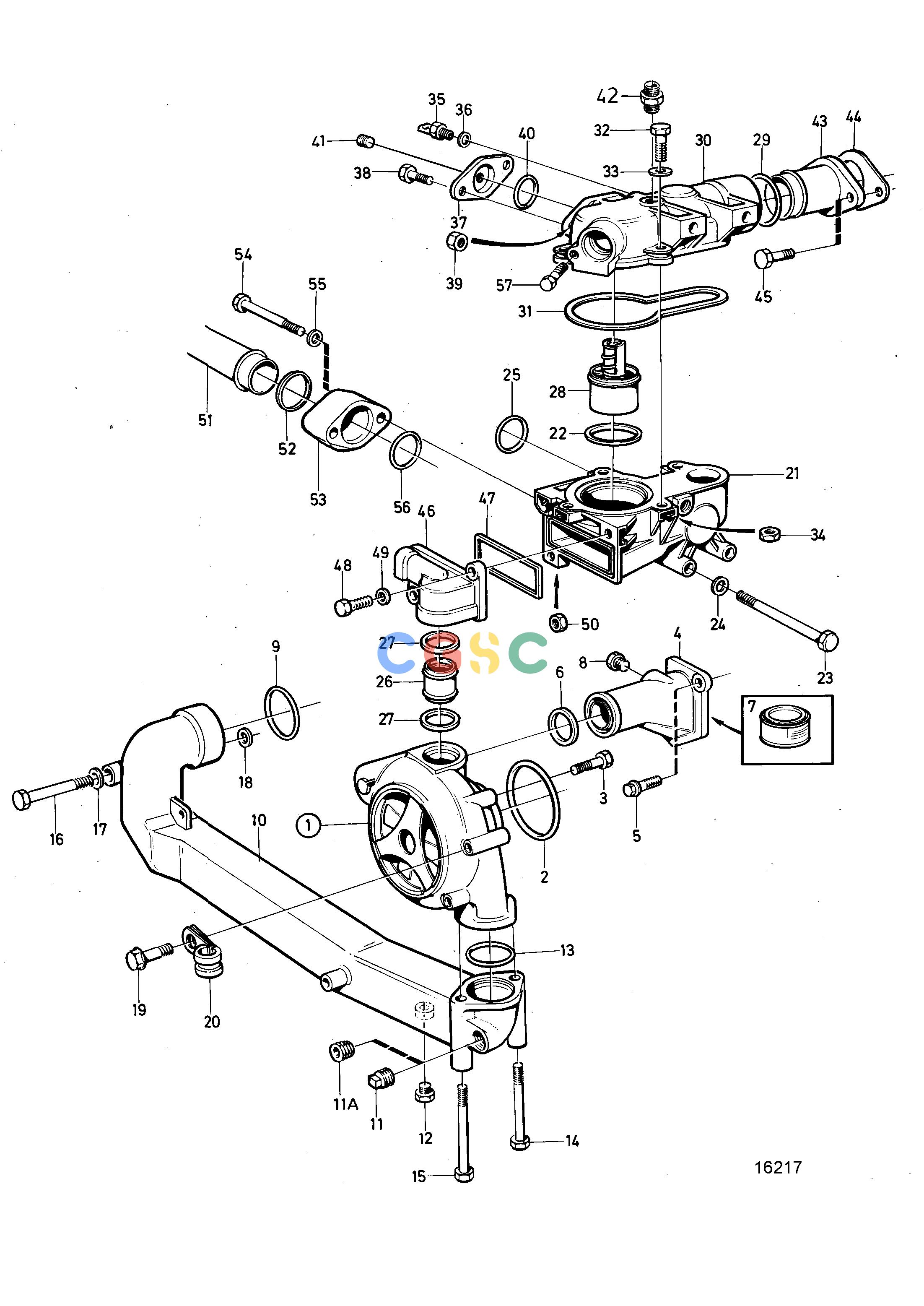

沃尔沃零件查询TAMD61A; TAMD62ACooling SystemWater Pump and Thermostat HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
772 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
465884
|
[1] |
Coolant pump
|
SN-XXXXXXXXXX/46629
|
| 1. |
|
|
|
|
| 1. |
420759
|
[1] |
Coolant pump
|
E.U=3803204, Repl by 477770
|
| 1. |
477770
|
[1] |
Coolant pump
|
Repl by 8192050
|
| 1. |
8192050
|
[1] |
Coolant pump
|
|
| 2. |
925095
|
[1] |
O-ring
|
|
| 3. |
965190
|
[4] |
Flange screw
|
|
| 4. |
420561
|
[1] |
Extension part
|
|
| 5. |
945444
|
[2] |
Flange screw
|
|
| 6. |
471629
|
[1] |
Sealing ring
|
|
| 7. |
1161231
|
[1] |
Sealant
|
304ml
|
| 8. |
968145
|
[1] |
Plug
|
|
| 9. |
864723
|
[1] |
Sealing ring
|
|
| 10. |
849528
|
[1] |
Coolant pipe
|
Circulation pump-heat exchanger.
|
| 11. |
952358
|
[1] |
Plug
|
Early type
|
| 11A. |
479977
|
[1] |
Plug
|
Later prod (952077)
|
| 12. |
861551
|
[1] |
Plug
|
(192134)
|
| 13. |
925092
|
[1] |
O-ring
|
|
| 14. |
965218
|
[1] |
Flange screw
|
|
| 15. |
965183
|
[1] |
Flange screw
|
|
| 16. |
970989
|
[1] |
Hexagon screw
|
|
| 17. |
940280
|
[1] |
Spring washer
|
|
| 18. |
955898
|
[1] |
Washer
|
Early type
|
| 19. |
946440
|
[1] |
Flange screw
|
|
| 20. |
949747
|
[1] |
Clamp
|
|
| 21. |
876628
|
[1] |
Thermostat housing
|
|
| 22. |
1544710
|
[1] |
Sealing ring
|
|
| 23. |
965189
|
[3] |
Flange screw
|
|
| 24. |
941908
|
[3] |
Spring washer
|
|
| 25. |
477059
|
[1] |
O-ring
|
|
| 26. |
465886
|
[1] |
Pipe
|
|
| 27. |
469982
|
[2] |
Sealing ring
|
|
| 28. |
1661993
|
[1] |
Thermostat
|
75°C
|
| 29. |
469982
|
[1] |
Sealing ring
|
|
| 30. |
477905
|
[1] |
Cover
|
(420758)
|
| 31. |
471788
|
[1] |
Sealing ring
|
|
| 32. |
946470
|
[4] |
Flange screw
|
|
| 33. |
941907
|
[4] |
Spring washer
|
|
| 34. |
955782
|
[4] |
Hexagon nut
|
|
| 35. |
|
|
|
See group 30
|
| 36. |
11998
|
[1] |
Gasket
|
(947624)
|
| 37. |
471705
|
[1] |
Flange
|
|
| 38. |
945444
|
[2] |
Flange screw
|
|
| 39. |
955782
|
[2] |
Hexagon nut
|
|
| 40. |
949658
|
[1] |
O-ring
|
|
| 41. |
479977
|
[1] |
Plug
|
(952077)
|
| 42. |
954378
|
[1] |
Nipple
|
|
| 43. |
848165
|
[1] |
Pipe
|
|
| 44. |
848163
|
[1] |
Gasket
|
|
| 45. |
946544
|
[2] |
Flange screw
|
|
| 46. |
471822
|
[1] |
Housing
|
|
| 47. |
471816
|
[1] |
Sealing ring
|
|
| 48. |
945444
|
[2] |
Flange screw
|
|
| 49. |
941907
|
[2] |
Spring washer
|
|
| 50. |
955782
|
[4] |
Hexagon nut
|
|
| 51. |
848476
|
[1] |
Coolant pipe
|
Thermostat housing-heat exchanger.
|
| 52. |
466740
|
[1] |
O-ring
|
|
| 53. |
848690
|
[1] |
Flange
|
|
| 54. |
948425
|
[2] |
Hex. socket screw
|
|
| 55. |
941907
|
[2] |
Spring washer
|
|
| 56. |
925092
|
[1] |
O-ring
|
|
| 57. |
7746650_057
|
|
Screw
|
|
