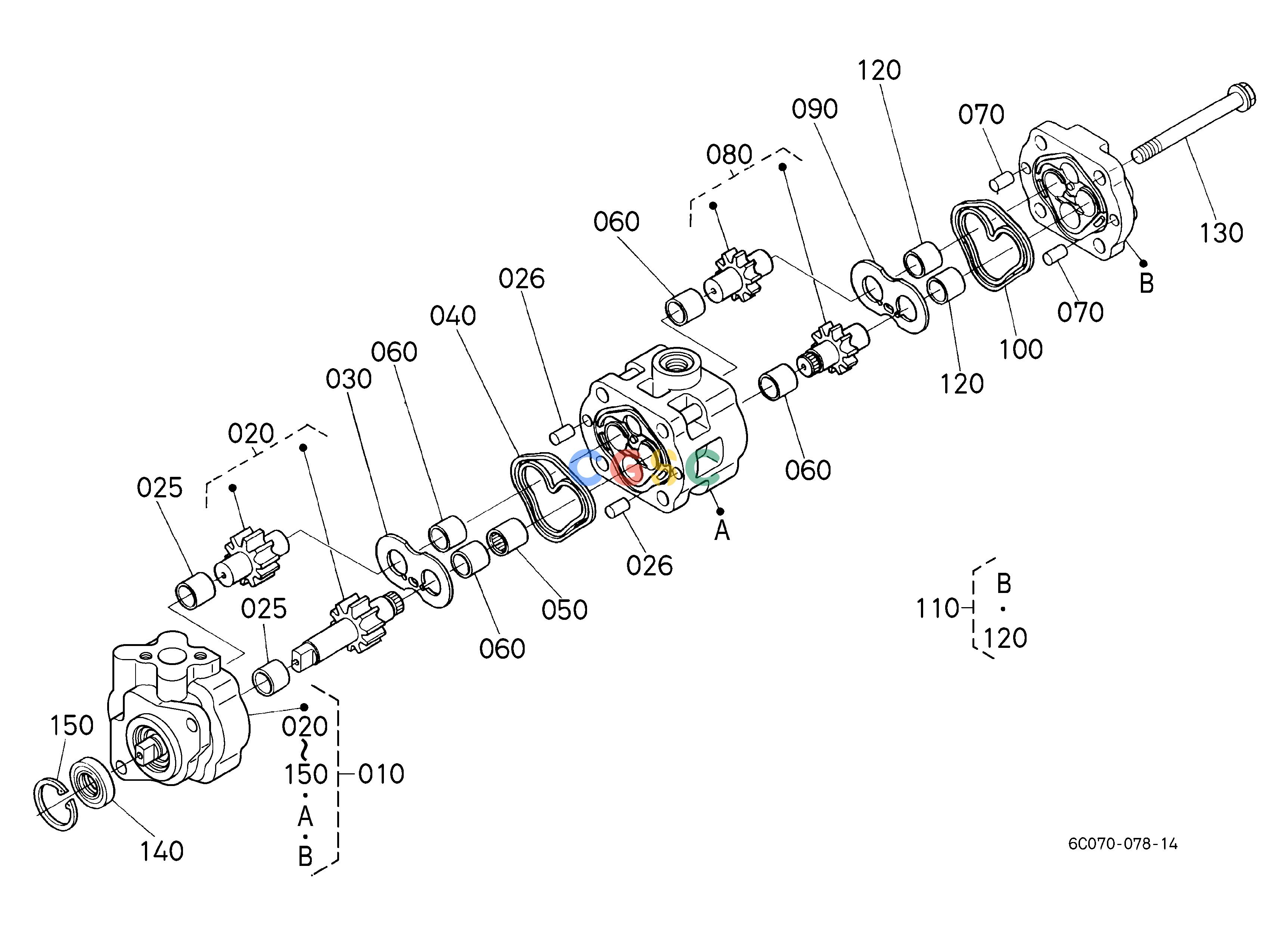

久保田零件查询J12502 HYDRAULIC PUMP [COMPONENT PARTS] ## S.No.>=YY0001 PUMP/MOTOR SYSTEMEPC Kubota online_久保田Kubota_工程机械

久保田零件查询J12502 HYDRAULIC PUMP [COMPONENT PARTS] ## S.No.>=YY0001 PUMP/MOTOR SYSTEMEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 972 次

Pos.	Part No	Qty	Parts name	Comments
010.	6C07036303	[1]	ASSY PUMP HYDRAULIC	; <=2K0898 5.1040(lbs); 2.320
010.	6C07036306	[1]	ASSY PUMP HYDRAULIC	; =>2L0006 5.1040(lbs); 2.320
020.	6C07036390	[1]	COMP.GEAR HYD.PUMP	0.6600(lbs); 0.300
025.	6A10037230	[2]	BUSH	; <=2K0898 0.0110(lbs); 0.005
025.	6A10037232	[2]	BUSH	; =>2L0006 0.0110(lbs); 0.005
026.	0501200814	[2]	PIN STRAIGHT	0.0132(lbs); 0.006
030.	6C14036350	[1]	PLATE SIDE	0.1100(lbs); 0.050
040.	6C04036342	[1]	RING DOUBLE	; <=2K0898 0.0066(lbs); 0.003
040.	6C04036344	[1]	RING DOUBLE	; =>2L0006 0.0066(lbs); 0.003
050.	6A10037430	[1]	COUPLING	0.0220(lbs); 0.010
060.	6A10037230	[4]	BUSH	; <=2K0898 0.0110(lbs); 0.005
060.	6A10037232	[4]	BUSH	; =>2L0006 0.0110(lbs); 0.005
070.	0501200814	[2]	PIN STRAIGHT	0.0132(lbs); 0.006
080.	6A10037442	[1]	COMP.GEAR HYD.PUMP	0.3960(lbs); 0.180
090.	6C14036350	[1]	PLATE SIDE	0.1100(lbs); 0.050
100.	6C04036342	[1]	RING DOUBLE	; <=2K0898 0.0066(lbs); 0.003
100.	6C04036344	[1]	RING DOUBLE	; =>2L0006 0.0066(lbs); 0.003
110.	6C14037400	[1]	COMP.COVER	0.5060(lbs); 0.230
120.	6A10037230	[2]	BUSH	; <=2K0898 0.0110(lbs); 0.005
120.	6A10037232	[2]	BUSH	; =>2L0006 0.0110(lbs); 0.005
130.	0175451090	[4]	BOLT FLANGE	0.0770(lbs); 0.035
140.	3138176390	[1]	SEAL OIL	0.0220(lbs); 0.010
150.	0461100300	[1]	CIR CLIP INTERNAL	0.0088(lbs); 0.004
