神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (07-003[00]) - NAME PLATE INSTALLATION (CAB) (NIBBLER & BREAKER), (YT22T00055F4 & YT22T00055F5) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
369 次

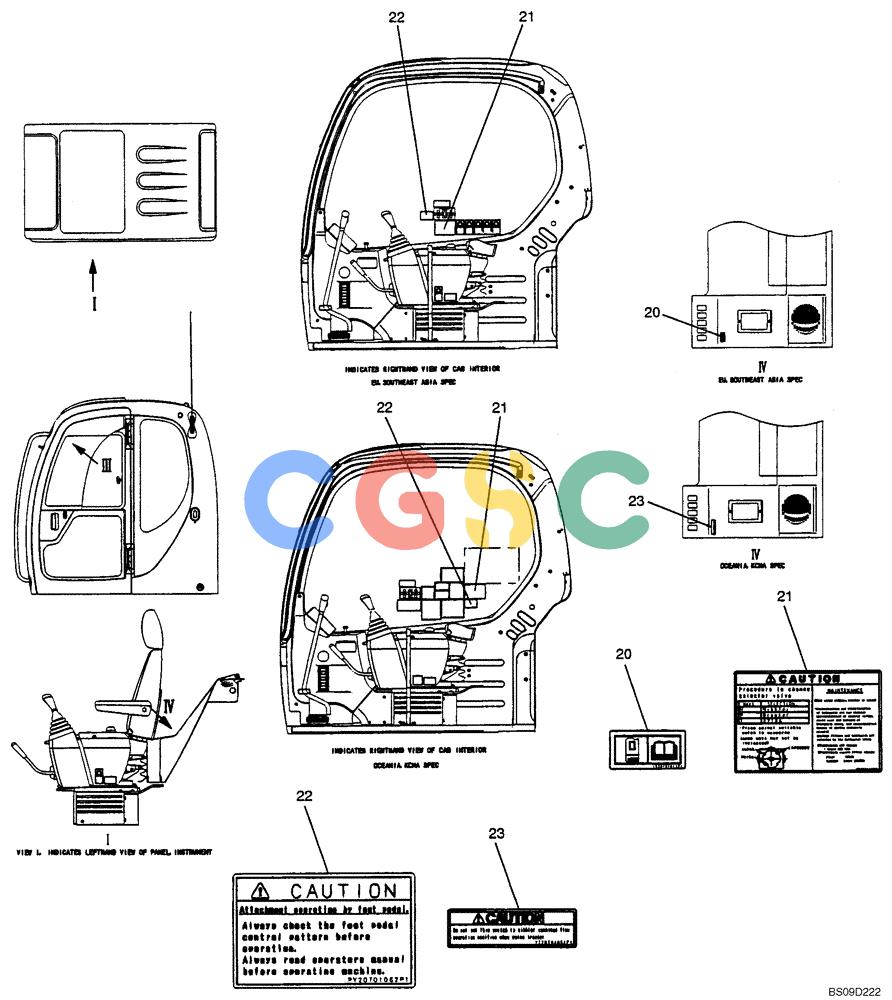

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 20. | YB20T01013P1 | [1] | LABEL | KOBDecal, Shows book |
| 21. | YY20T01039P1 | [1] | LABEL | KOBDecal, Caution, Procedure to change selector valve… |
| 22. | PY20T01062P1 | [1] | CAUTION DECAL | KOBDecal, Caution - Attachment operation by foot pedal. Always check the … |
| 23. | YT20T01054P1 | [1] | LABEL | KOBDecal, Caution - Do not set this switch to nibbler combined flow operation … |
