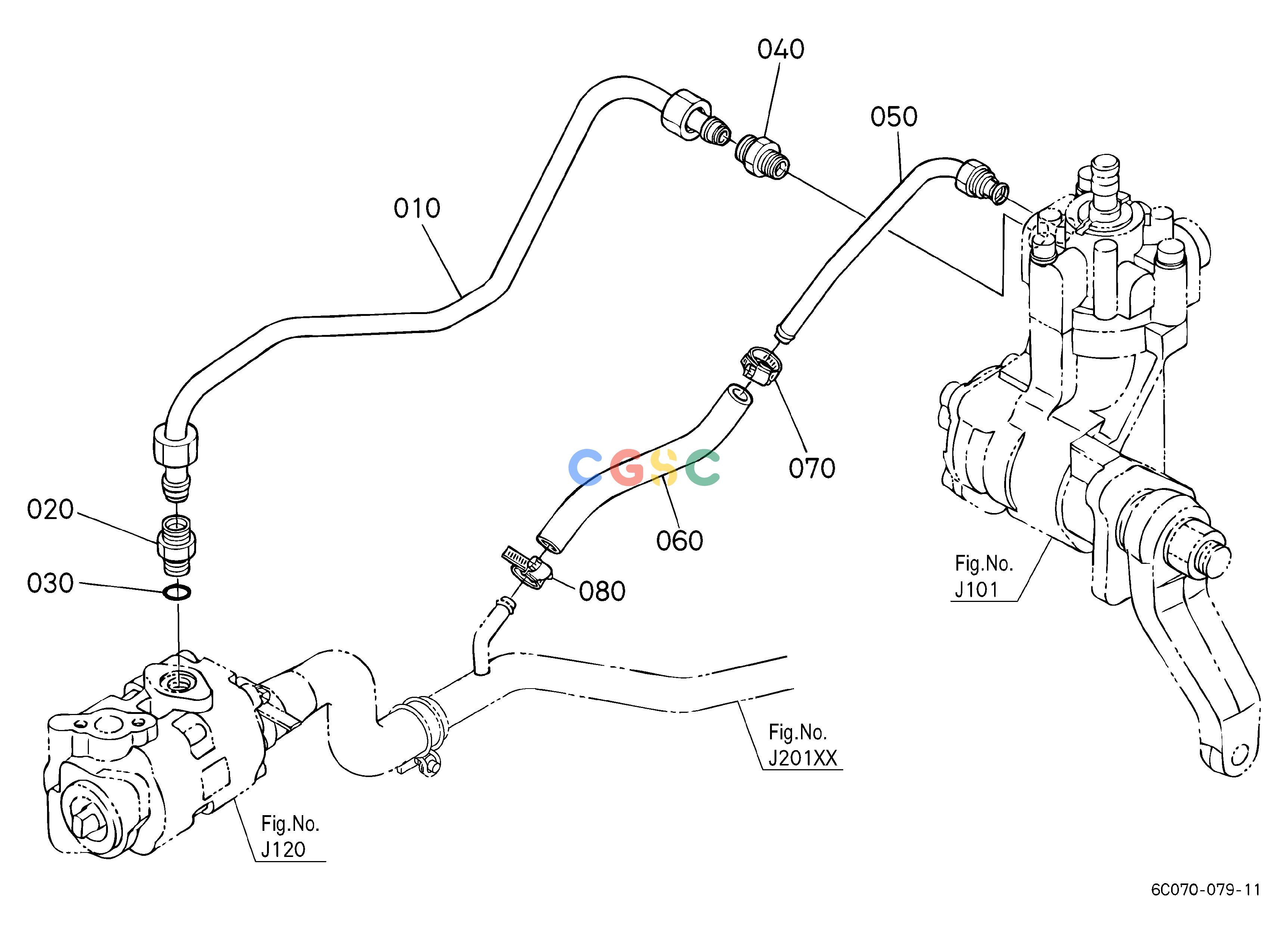

久保田零件查询J21501 HYDRAULIC OIL LINE(STEERING) ## S.No.<=15496 PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
311 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07039220
|
[1] |
PIPE DELIVERY
|
0.6600(lbs); 0.300
|
| 010. |
H6C0139200
|
[1] |
PIPE DELIVERY
|
0.6600(lbs); 0.300
|
| 020. |
0601251222
|
[1] |
JOINT PIPE
|
0.1100(lbs); 0.050
|
| 030. |
0481100110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481600110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
6C07039430
|
[1] |
JOINT PIPE
|
0.0836(lbs); 0.038
|
| 050. |
6C07039310
|
[1] |
PIPE
|
0.1320(lbs); 0.060
|
| 060. |
6C07039330
|
[1] |
HOSE
|
0.0880(lbs); 0.040
|
| 070. |
6C05058750
|
[1] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
| 080. |
6C05058750
|
[1] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
