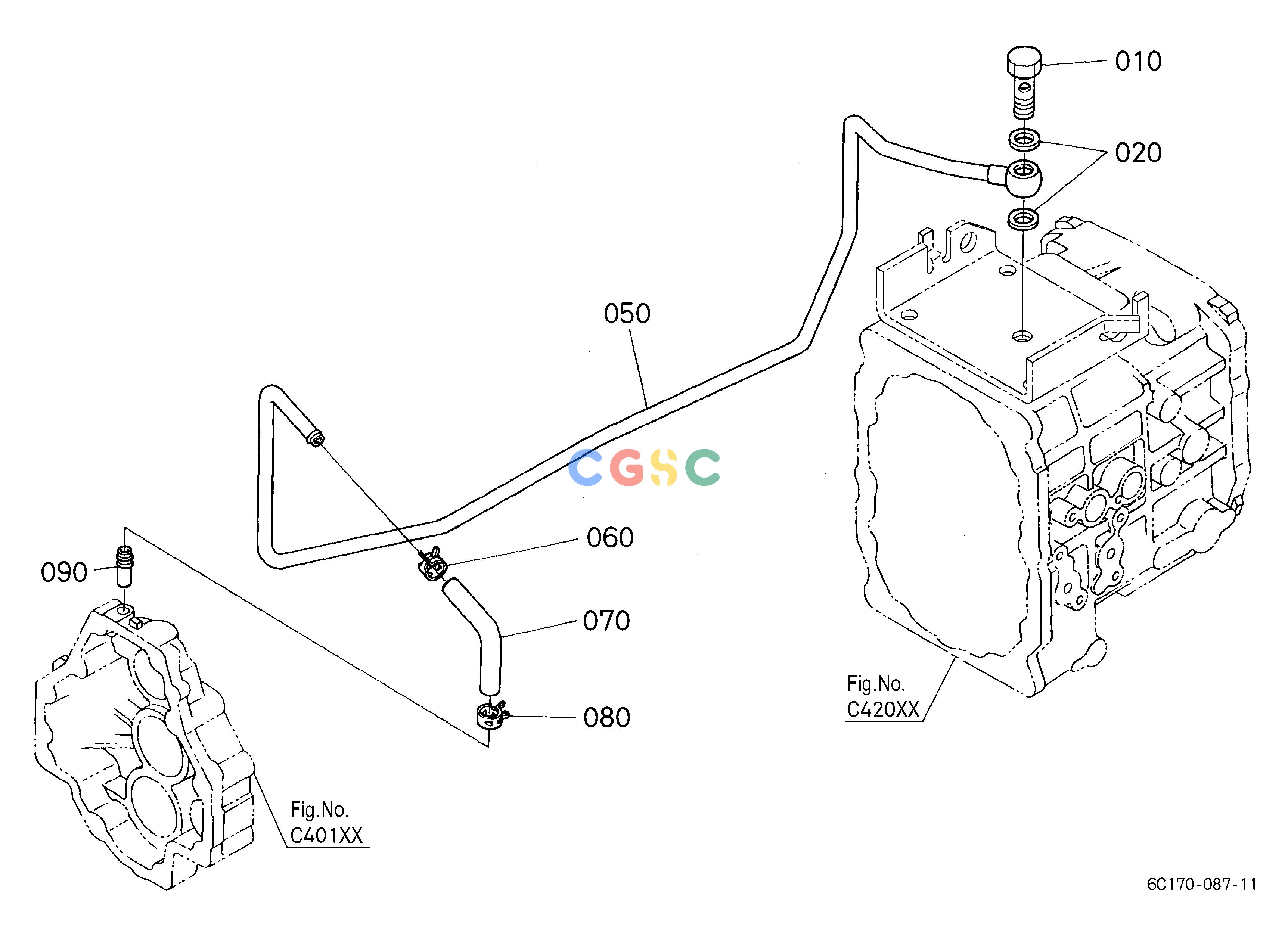

久保田零件查询J23001 HYDRAULIC OIL LINE(T/M) ## S.No.<=15496 PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
454 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04039290
|
[1] |
BOLT JOINT
|
0.0990(lbs); 0.045
|
| 020. |
0471400200
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 050. |
6C07013170
|
[1] |
PIPE HYDRAULIC
|
0.5720(lbs); 0.260
|
| 060. |
0931888125
|
[1] |
CLAMP HOSE
|
0.0022(lbs); 0.001
|
| 070. |
6C05013140
|
[1] |
HOSE HYDRAULIC
|
0.0286(lbs); 0.013
|
| 080. |
0931888115
|
[1] |
CLAMP HOSE
|
0.0044(lbs); 0.002
|
| 090. |
6C05013190
|
[1] |
JOINT PIPE
|
0.0132(lbs); 0.006
|
