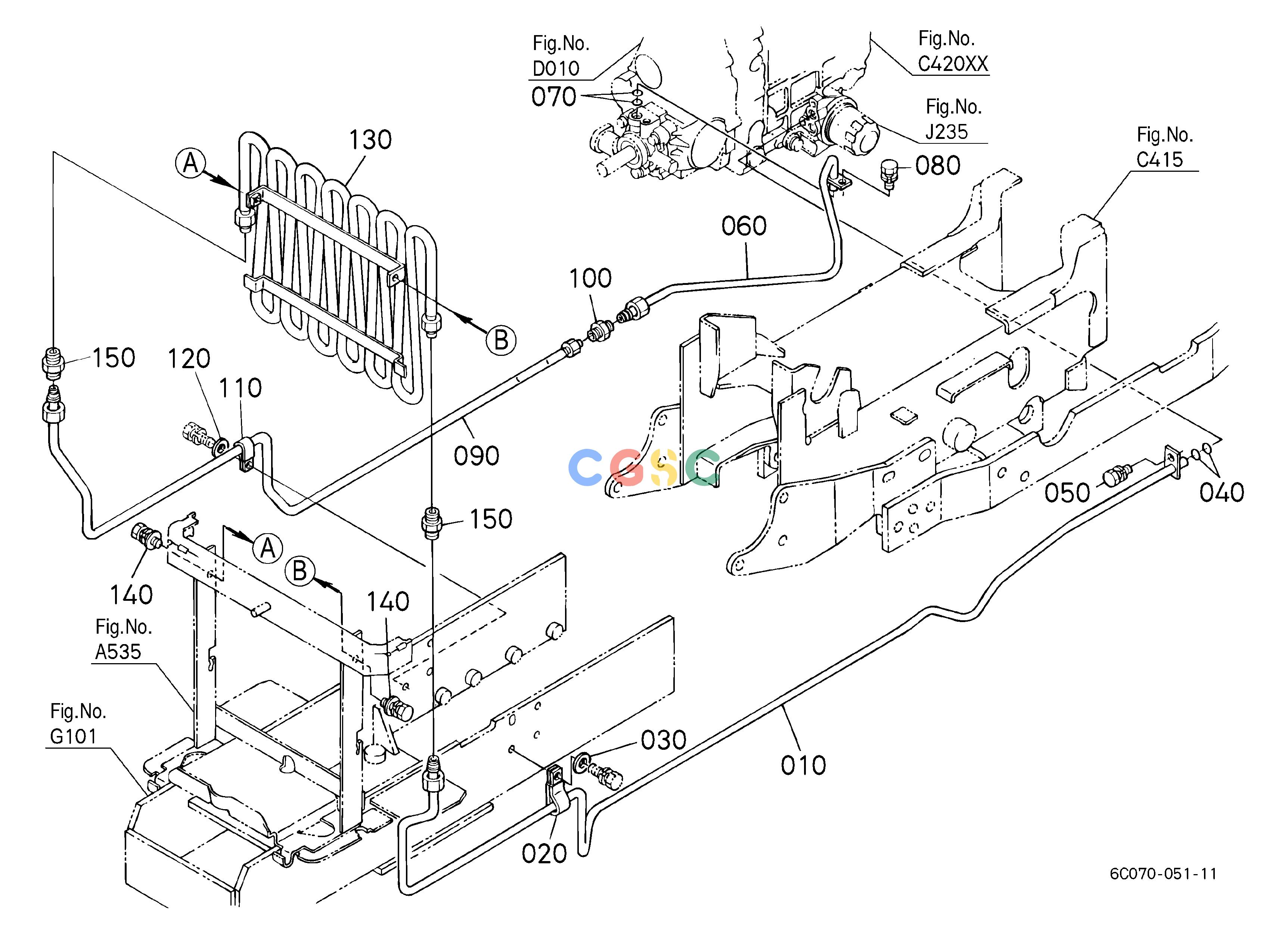

久保田零件查询J24001 HYDRAULIC OIL LINE(OIL COOLER) ## S.No.<=15496 PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
808 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07039320
|
[1] |
PIPE RETURN
|
1.1000(lbs); 0.500
|
| 020. |
6C05039410
|
[1] |
CLAMP PIPE
|
0.0286(lbs); 0.013
|
| 030. |
0401360100
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 040. |
0481100120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481600120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 060. |
6C07039350
|
[1] |
PIPE
|
0.3520(lbs); 0.160
|
| 060. |
H6C0039300
|
[1] |
PIPE
|
0.3520(lbs); 0.160
|
| 070. |
0481100100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481600100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 090. |
6C07039360
|
[1] |
PIPE
|
0.8800(lbs); 0.400
|
| 090. |
H6C0139300
|
[1] |
PIPE
|
0.8800(lbs); 0.400
|
| 100. |
0601351002
|
[1] |
JOINT PIPE
|
0.0660(lbs); 0.030
|
| 110. |
6C05039410
|
[1] |
CLAMP PIPE
|
0.0286(lbs); 0.013
|
| 120. |
0401360100
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 130. |
3272158712
|
[1] |
PIPE COOLER
|
3.7400(lbs); 1.700
|
| 130. |
H327058700
|
[1] |
PIPE COOLER
|
3.7400(lbs); 1.700
|
| 140. |
0112550816
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 150. |
0601351202
|
[2] |
JOINT PIPE
|
0.0880(lbs); 0.040
|
