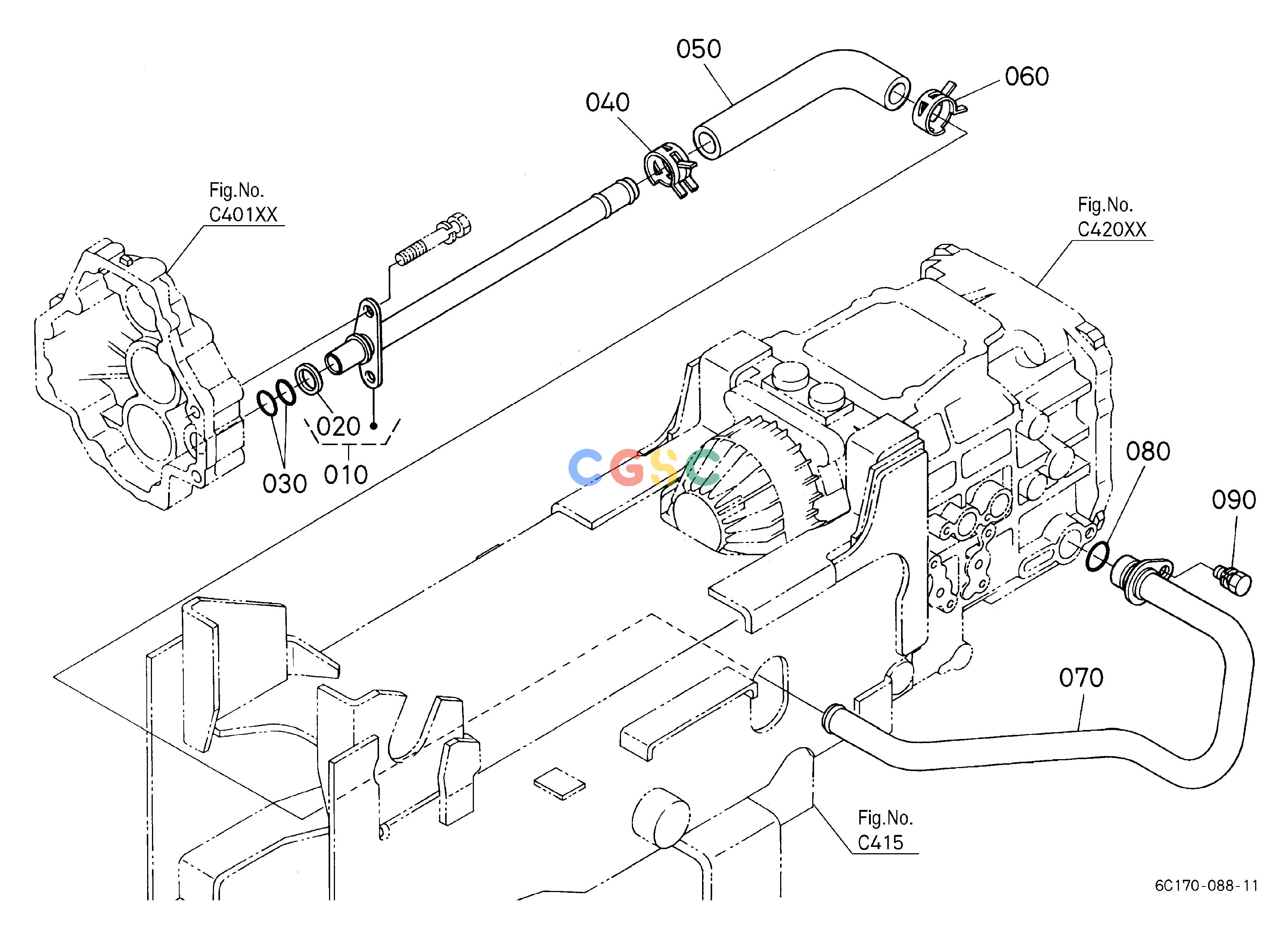

久保田零件查询J24501 HYDRAULIC OIL LINE(F/M) ## S.No.<=15496 PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07013150
|
[1] |
PIPE
|
0.1320(lbs); 0.060
|
| 020. |
6C04013160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 030. |
0481106170
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481606170
|
[2] |
O RING
|
0.0110(lbs); 0.005
|
| 040. |
0931888230
|
[1] |
CLAMP HOSE
|
0.0176(lbs); 0.008
|
| 050. |
6C07013190
|
[1] |
HOSE HYDRAULIC
|
0.1540(lbs); 0.070
|
| 060. |
0931888230
|
[1] |
CLAMP HOSE
|
0.0176(lbs); 0.008
|
| 070. |
6C07013160
|
[1] |
PIPE
|
0.5940(lbs); 0.270
|
| 080. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 090. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
