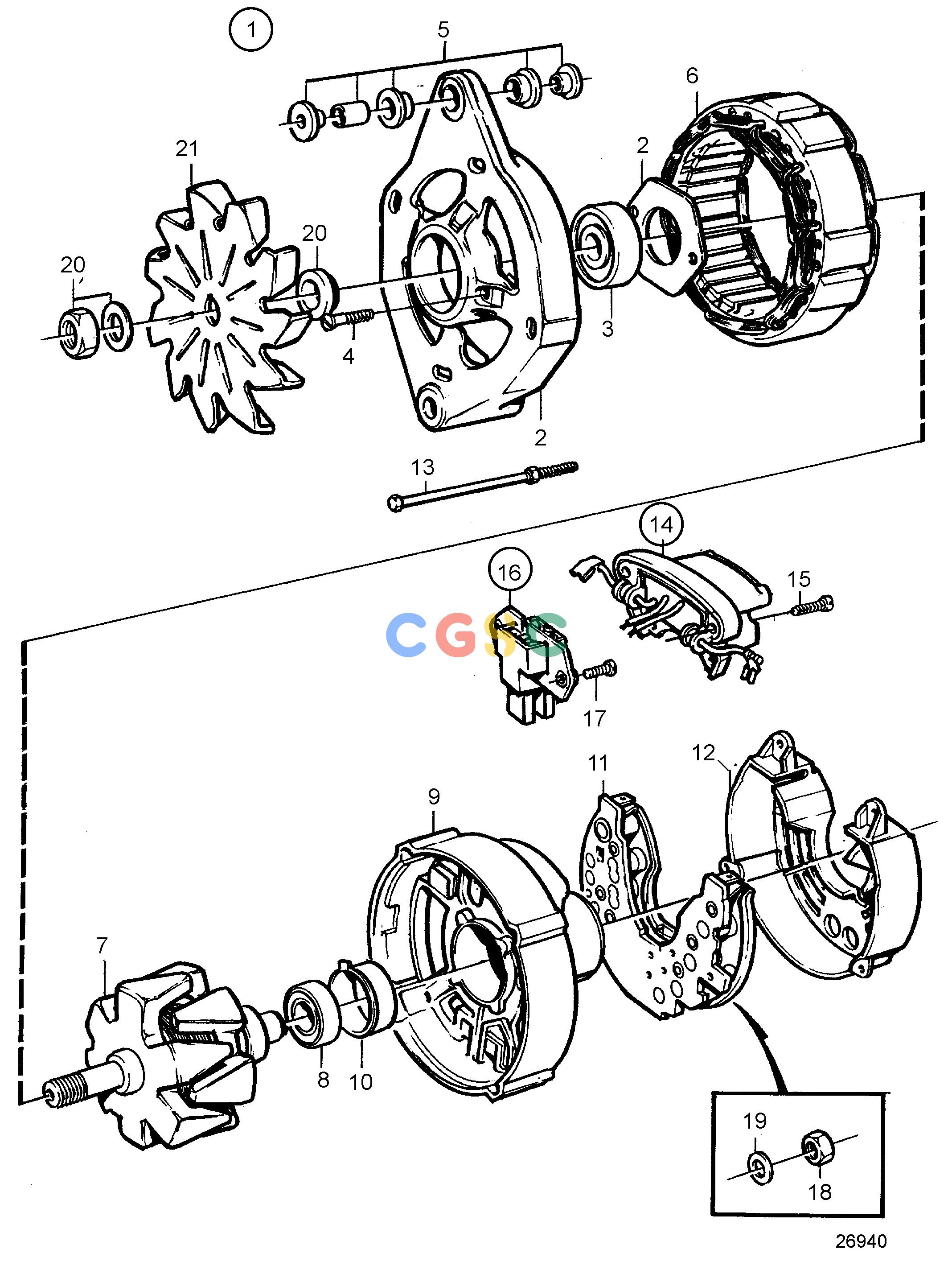

沃尔沃零件查询TAMD61A; TAMD62AElectrical SystemAlternator 28V 60A, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
392 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
863955
|
[1] |
Alternator
|
28V 60A
|
| 2. |
|
|
|
|
| 3. |
847708
|
[1] |
Ball bearing
|
(864350)
|
| 4. |
847709
|
[1] |
Bearing carrier
|
|
| 5. |
840634
|
[1] |
Guide
|
|
| 6. |
864346
|
[1] |
Stator
|
|
| 7. |
|
|
|
|
| 8. |
864351
|
[1] |
Ball bearing
|
|
| 9. |
|
|
|
|
| 10. |
840629
|
[1] |
Bearing race
|
|
| 11. |
1698689
|
[1] |
Diode bridge
|
This diode bridge with zener-diodes replaces all the earlier diode bridges
|
| 12. |
847712
|
[1] |
Protecting casing
|
|
| 13. |
847710
|
[1] |
Screw kit
|
|
| 14. |
872368
|
[1] |
Regulator kit, with brush holder
|
(864006)
|
| 15. |
859312
|
[4] |
Screw
|
|
| 16. |
840632
|
[1] |
Brush retainer
|
|
| 17. |
859312
|
[2] |
Screw
|
|
| 18. |
955779
|
[1] |
Hexagon nut
|
M4, w
|
| 18. |
965483
|
[2] |
Flange nut
|
M5, D+, B-
|
| 18. |
945407
|
[1] |
Flange nut
|
M6, b+
|
| 19. |
941904
|
[1] |
Spring washer
|
For M4, W
|
| 20. |
847706
|
[1] |
Nut set
|
|
| 21. |
847707
|
[1] |
Fan
|
|
