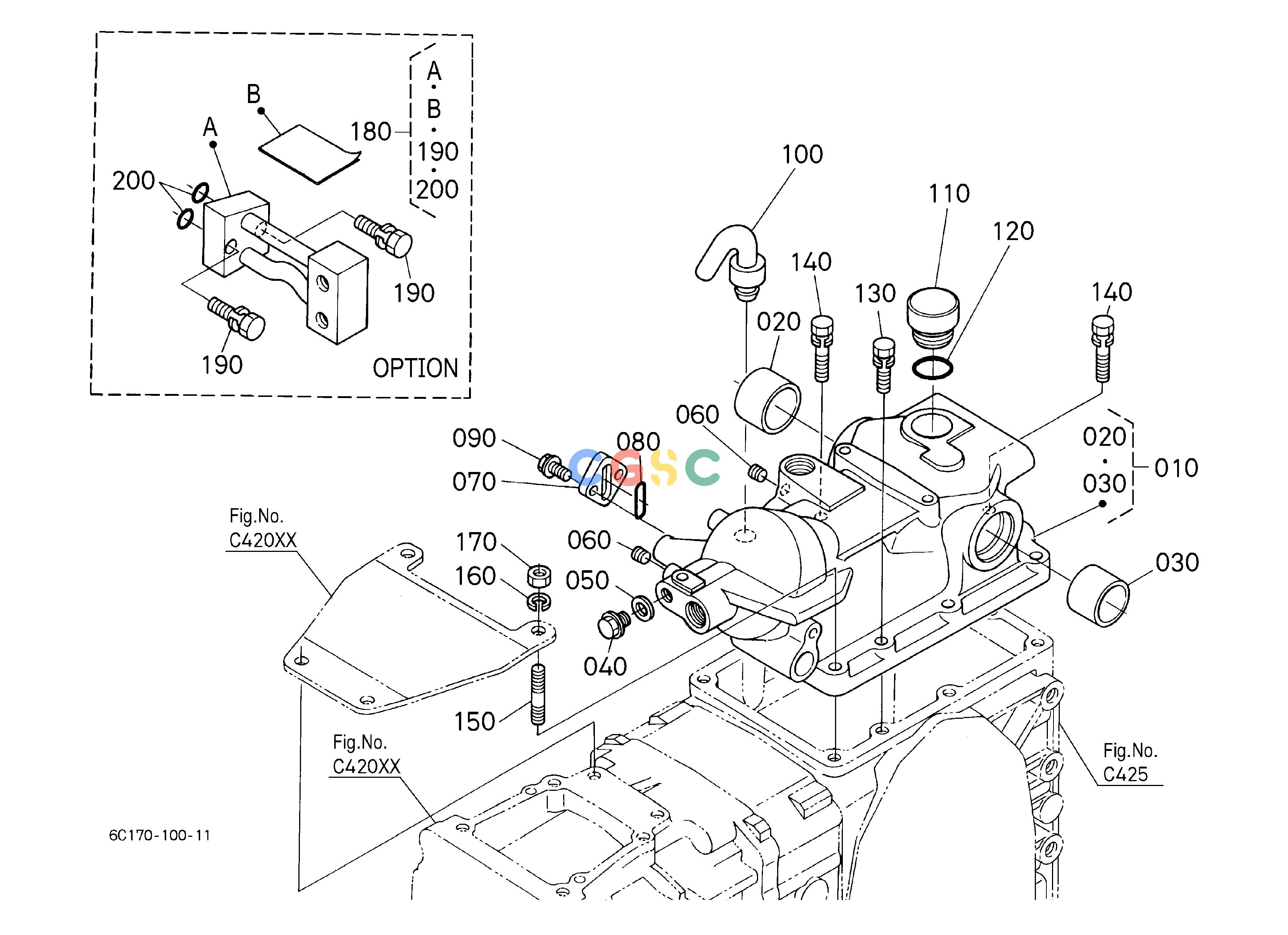

久保田零件查询J30101 HYDRAULIC CYLINDER ## S.No.<=15496 PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
544 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04036035
|
[1] |
ASSY CASE CYLINDER
|
24.6400(lbs); 11.200
|
| 020. |
6C04036480
|
[1] |
BUSH
|
0.0440(lbs); 0.020
|
| 030. |
6C04036490
|
[1] |
BUSH
|
0.1100(lbs); 0.050
|
| 040. |
3715036730
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
| 050. |
3715036720
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 060. |
3270136150
|
[2] |
PLUG
|
0.0110(lbs); 0.005
|
| 070. |
6C04036620
|
[1] |
CAP
|
0.0484(lbs); 0.022
|
| 080. |
3741036630
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0175450820
|
[2] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 100. |
6A10036410
|
[1] |
BREATHER
|
0.0132(lbs); 0.006
|
| 110. |
6C04036110
|
[1] |
PLUG OIL FILLER
|
0.0440(lbs); 0.020
|
| 120. |
0481100240
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 120. |
0481600240
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 130. |
0112351035
|
[5] |
BOLT
|
0.0550(lbs); 0.025
|
| 140. |
0112351045
|
[2] |
BOLT
|
0.0704(lbs); 0.032
|
| 150. |
0155551035
|
[2] |
STUD
|
0.0638(lbs); 0.029
|
| 160. |
0451260100
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 170. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 180. |
6C04095100
|
[1] |
KIT COVER HYD.OUTLET
|
1.0010(lbs); 0.455
|
| 190. |
0112350830
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 200. |
0481000070
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
