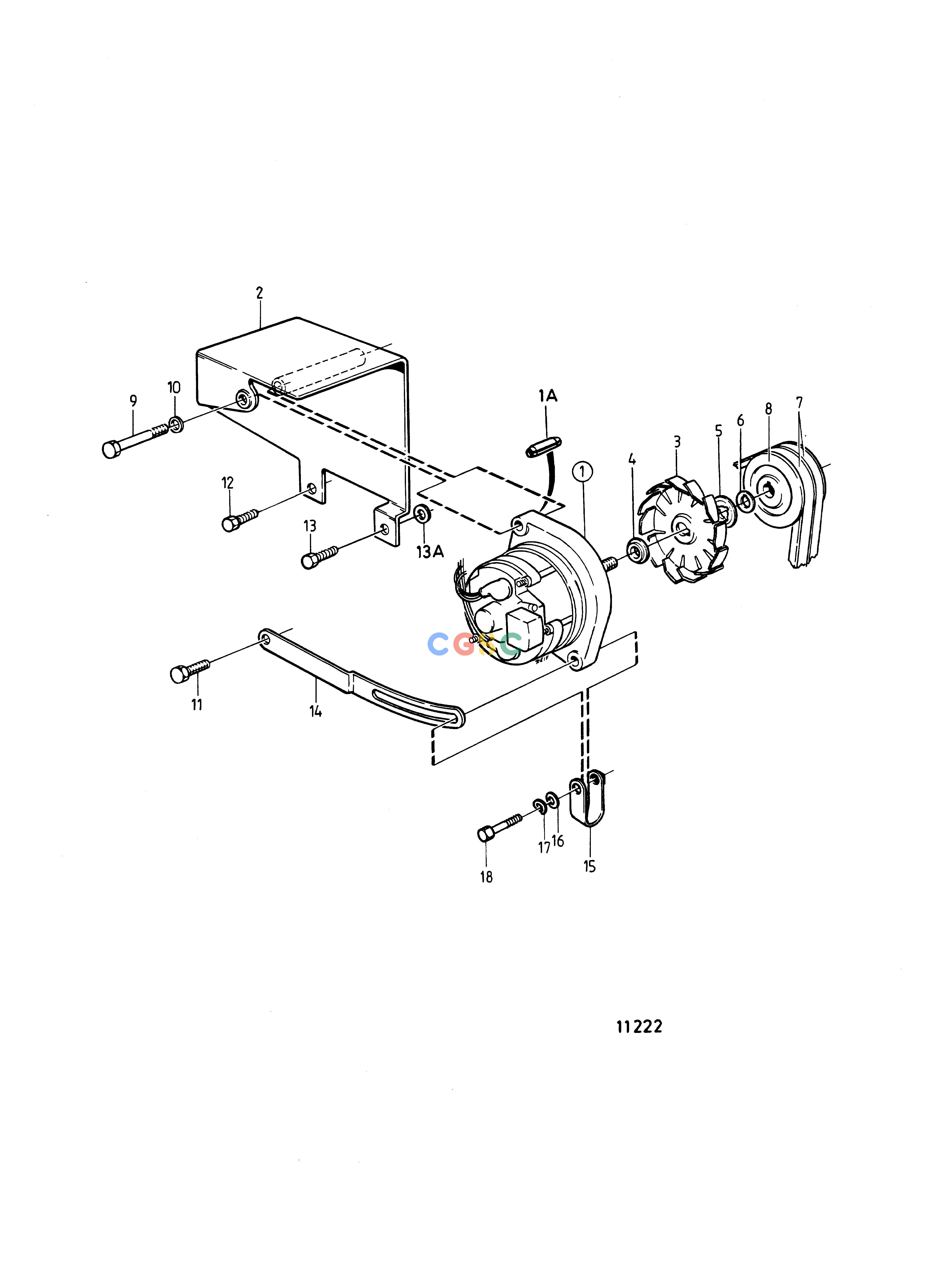

沃尔沃零件查询TAMD61A; TAMD62AElectrical SystemAlternator: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872018
|
[1] |
Alternator
|
For 12V electric system., Do not use the fan wich is included in complete alternator for engine TAMD
|
| 1. |
872235
|
[1] |
Alternator
|
For 12V electric system., Do not use the fan wich is included in complete alternator for engine TAMD
|
| 1. |
3803260
|
[1] |
Alternator, exch
|
For 12V electric system., Do not use the fan wich is included in complete alternator for engine TAMD
|
| 1. |
872021
|
[1] |
Alternator
|
For 24V electric system., Do not use the fan wich is included in complete alternator for engine TAMD
|
| 1A. |
1610144
|
[1] |
Spring pin
|
|
| 2. |
849454
|
[1] |
Alternator bracket
|
|
| 3. |
848971
|
[1] |
Fan
|
24V
|
| 3. |
862899
|
[1] |
Fan kit
|
12V
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
967193
|
[1] |
V-belt
|
|
| 8. |
849617
|
[1] |
Pulley
|
|
| 9. |
970965
|
[1] |
Hexagon screw
|
L=150mm
|
| 10. |
941908
|
[1] |
Spring washer
|
|
| 11. |
946173
|
[1] |
Flange screw
|
|
| 12. |
965183
|
[1] |
Flange screw
|
|
| 13. |
965190
|
[1] |
Flange screw
|
|
| 13A. |
960148
|
[1] |
Washer
|
|
| 14. |
830747
|
[1] |
Tensioner
|
|
| 15. |
466734
|
[1] |
Tensioning loop
|
|
| 16. |
955894
|
[1] |
Washer
|
|
| 17. |
966674
|
[1] |
Washer
|
(960141)
|
| 18. |
947760
|
[1] |
Flange screw
|
|
